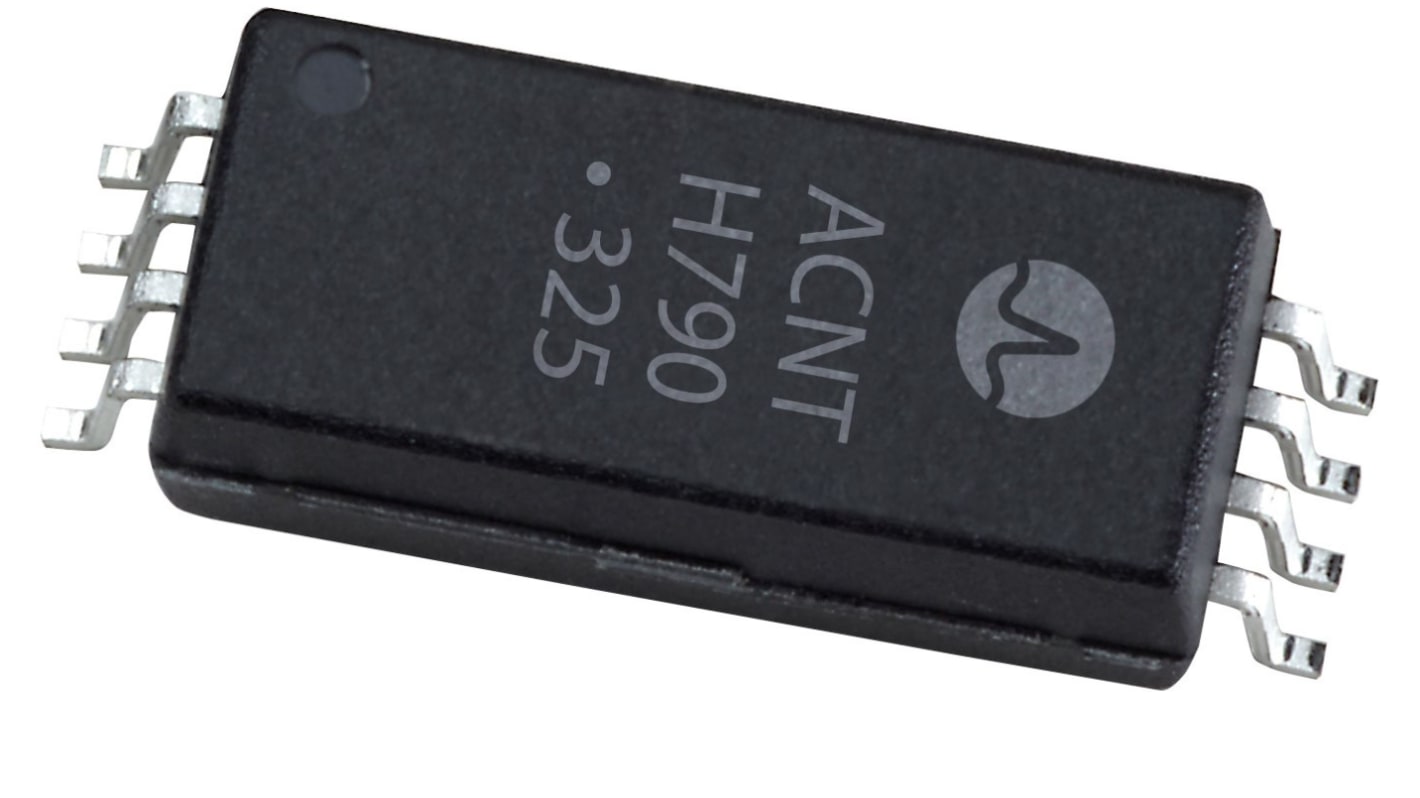

Broadcom ACNT-H79B-000E Optocoupler, Surface Mount, 8-Pin

View all Optocouplers
Bulk discount available

Subtotal (1 unit)*

£13.05

(exc. VAT)

£15.66

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 414 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 9£13.05
10 - 49£11.26
50 - 79£9.29
80 +£8.34

*price indicative

Packaging Options:
RS Stock No.:
239-9284
Mfr. Part No.:
ACNT-H79B-000E
Brand:
Broadcom
Find similar products by selecting one or more attributes.
Select all

Brand

Broadcom

Mount Type

Surface Mount

Product Type

Optocoupler

Number of Channels

1

Number of Pins

8

Typical Rise Time

1.7μs

Maximum Input Current

230mA

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

105°C

Typical Fall Time

1.7μs

Standards/Approvals

RoHS

Series

ACNT-H79B

Automotive Standard

No

COO (Country of Origin):
PH
The Broadcom ACNT-H79B isolation amplifiers are designed for current and voltage sensing in electronic power converters for applications including motor drives and renewable energy systems. In a typical motor drive implementation, current flows through an external resistor and the resulting analog voltage drop is sensed by the isolation amplifier. A differential output voltage that is proportional to the current is created on the other side of the optical isolation barrier.

±05% gain accuracy (ACNT-H79B)

–50 ppm/°C low gain drift

06-mV input offset voltage

005% excellent linearity

60-dB SNR

200-kHz wide bandwidth (Typ)

–40°C to +105°C operating temperature range

Advanced sigma-delta (-) A/D modulation technology

15-mm stretched SO-8 package

05-mm distance through insulation (DTI)

15-kV/μs common-mode transient immunity
