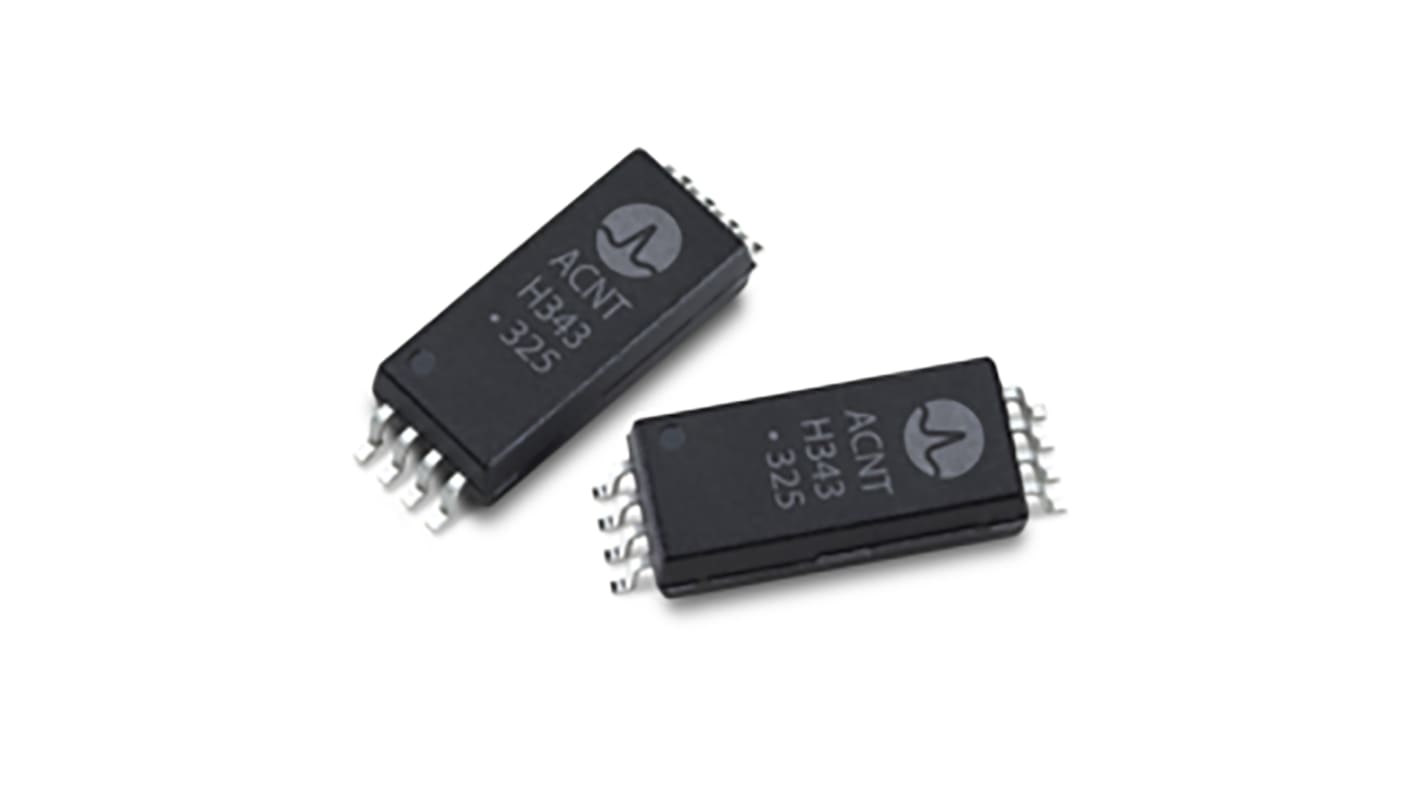

Broadcom, ACNT-H343-000E Optocoupler, Surface Mount, 8-Pin
- RS Stock No.:
- 188-6475
- Mfr. Part No.:
- ACNT-H343-000E
- Brand:
- Broadcom
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 188-6475
- Mfr. Part No.:
- ACNT-H343-000E
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Mounting Type | Surface Mount | |
| Maximum Forward Voltage | 1.85V | |
| Number of Pins | 8 | |
| Isolation Voltage | 7500 V | |
| Series | ACNT | |
Select all | ||
|---|---|---|
Brand Broadcom | ||
Mounting Type Surface Mount | ||
Maximum Forward Voltage 1.85V | ||
Number of Pins 8 | ||
Isolation Voltage 7500 V | ||
Series ACNT | ||
5A max peak output current
15mm Creepage and 14.2mm Clearance
Rail-to-rail output voltage
UVLO with VE reference for negative power supply
150ns max propagation delay
90ns max propagation delay difference
100-kV/μs minimum common mode rejection (CMR) at VCM = 1500 V
ICC = 5.0 mA max supply current
Wide operating VCC range: 15 to 30 V
Industrial temperature range: -40 °C to +110 °C
Applications
IGBT/MOSFET Gate Drive
AC and Brushless DC Motor Drives
Renewable Energy Inverters
Industrial Inverters
Switching Power Supplies
15mm Creepage and 14.2mm Clearance
Rail-to-rail output voltage
UVLO with VE reference for negative power supply
150ns max propagation delay
90ns max propagation delay difference
100-kV/μs minimum common mode rejection (CMR) at VCM = 1500 V
ICC = 5.0 mA max supply current
Wide operating VCC range: 15 to 30 V
Industrial temperature range: -40 °C to +110 °C
Applications
IGBT/MOSFET Gate Drive
AC and Brushless DC Motor Drives
Renewable Energy Inverters
Industrial Inverters
Switching Power Supplies
