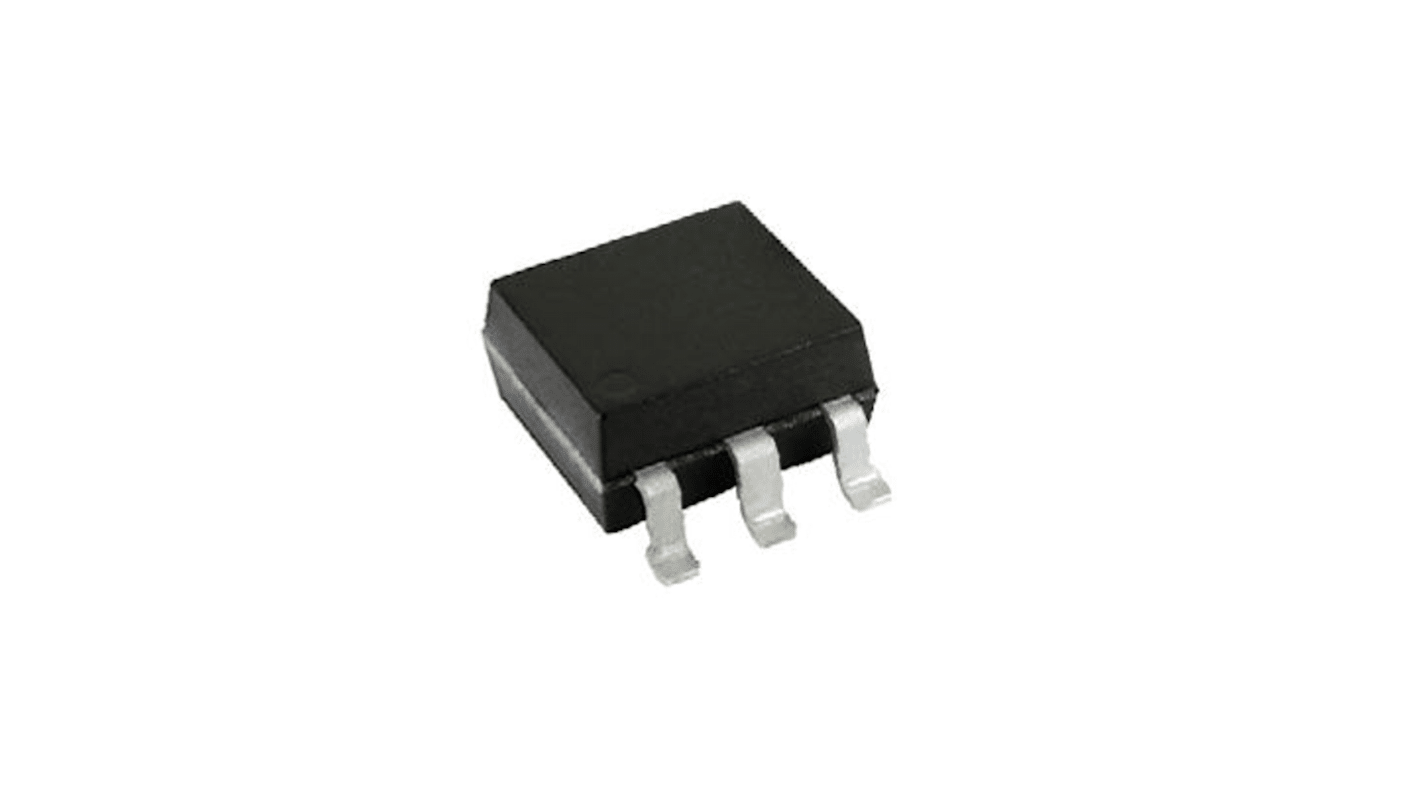

Vishay, LH1525AAB DC Input MOSFET Output Optocoupler, Surface Mount, 6-Pin 6-SMD
- RS Stock No.:
- 230-8340
- Mfr. Part No.:
- LH1525AAB
- Brand:
- Vishay
1998 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 2)
£2.51
(exc. VAT)
£3.01
(inc. VAT)
| Units | Per unit | Per Pack* |
| 2 - 18 | £2.51 | £5.02 |
| 20 - 48 | £2.085 | £4.17 |
| 50 - 98 | £1.885 | £3.77 |
| 100 - 198 | £1.53 | £3.06 |
| 200 + | £1.475 | £2.95 |
| *price indicative | ||
- RS Stock No.:
- 230-8340
- Mfr. Part No.:
- LH1525AAB
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
Product Details
The Vishay 1 form A solid state relay is SPST normally open switch (1 Form A) that can replace electromechanical relays in many applications. The relay requires a minimal amount of LED drive current to operate, making it ideal for battery powered and power consumption sensitive applications. The relay is constructed using a GaAIAs LED for actuation control and MOSFETs for the switching output. The relay employs current-limiting circuitry and can be configured for AC/DC or DC-only operation.
It is compliant to RoHS directive and lead free
It requires low operating current and provides high speed operation
It requires low operating current and provides high speed operation
Specifications
Attribute | Value |
|---|---|
| Mounting Type | Surface Mount |
| Output Device | MOSFET |
| Maximum Forward Voltage | 1.4V |
| Number of Channels | 1 |
| Number of Pins | 6 |
| Package Type | 6-SMD |
| Input Current Type | DC |
