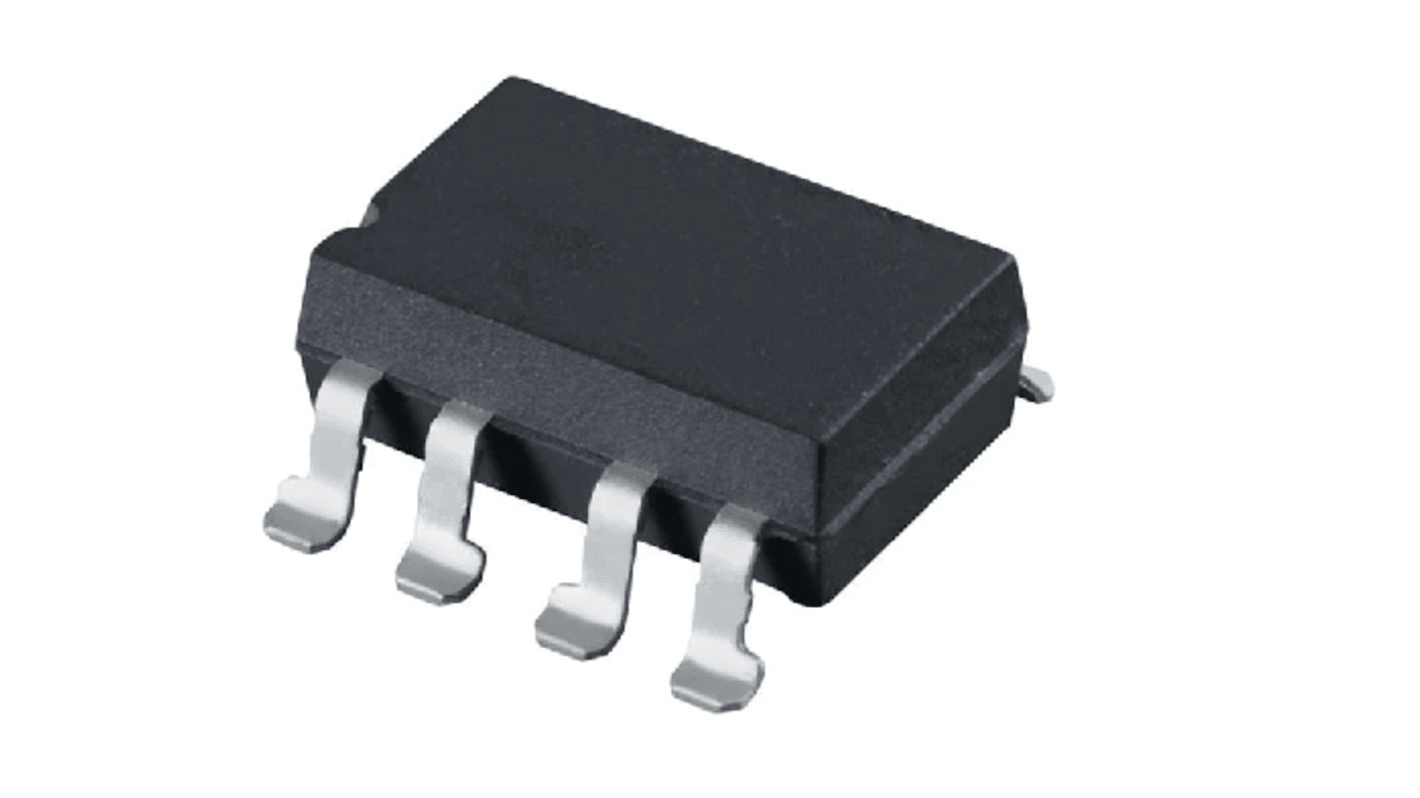

Vishay, 6N136-X009 DC Input Open Collector Output Optocoupler, Surface Mount, 8-Pin SMD-8
- RS Stock No.:
- 230-8319
- Mfr. Part No.:
- 6N136-X009
- Brand:
- Vishay
1785 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 5)
£1.314
(exc. VAT)
£1.577
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 45 | £1.314 | £6.57 |
| 50 - 120 | £0.854 | £4.27 |
| 125 - 245 | £0.658 | £3.29 |
| 250 - 495 | £0.592 | £2.96 |
| 500 + | £0.526 | £2.63 |
| *price indicative | ||
- RS Stock No.:
- 230-8319
- Mfr. Part No.:
- 6N136-X009
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
Product Details
The Vishay high speed optocoupler with a GaAIAs infrared emitting diode, optically coupled with an integrated photo detector which consists of a photo diode and a high-speed transistor in a DIP-8 plastic package. Signals can be transmitted between two electrically separated circuits up to frequencies of 2 MHz. The potential difference between the circuits to be coupled should not exceed the maximum permissible reference voltages. External base wiring possible.
It is TTL compatible
It has 1 Mbit/s high bit rates
It is compliant to RoHS directive and lead
It has 1 Mbit/s high bit rates
It is compliant to RoHS directive and lead
Specifications
Attribute | Value |
|---|---|
| Mounting Type | Surface Mount |
| Output Device | Open Collector |
| Maximum Forward Voltage | 1.9V |
| Number of Channels | 1 |
| Number of Pins | 8 |
| Package Type | SMD-8 |
| Input Current Type | DC |
