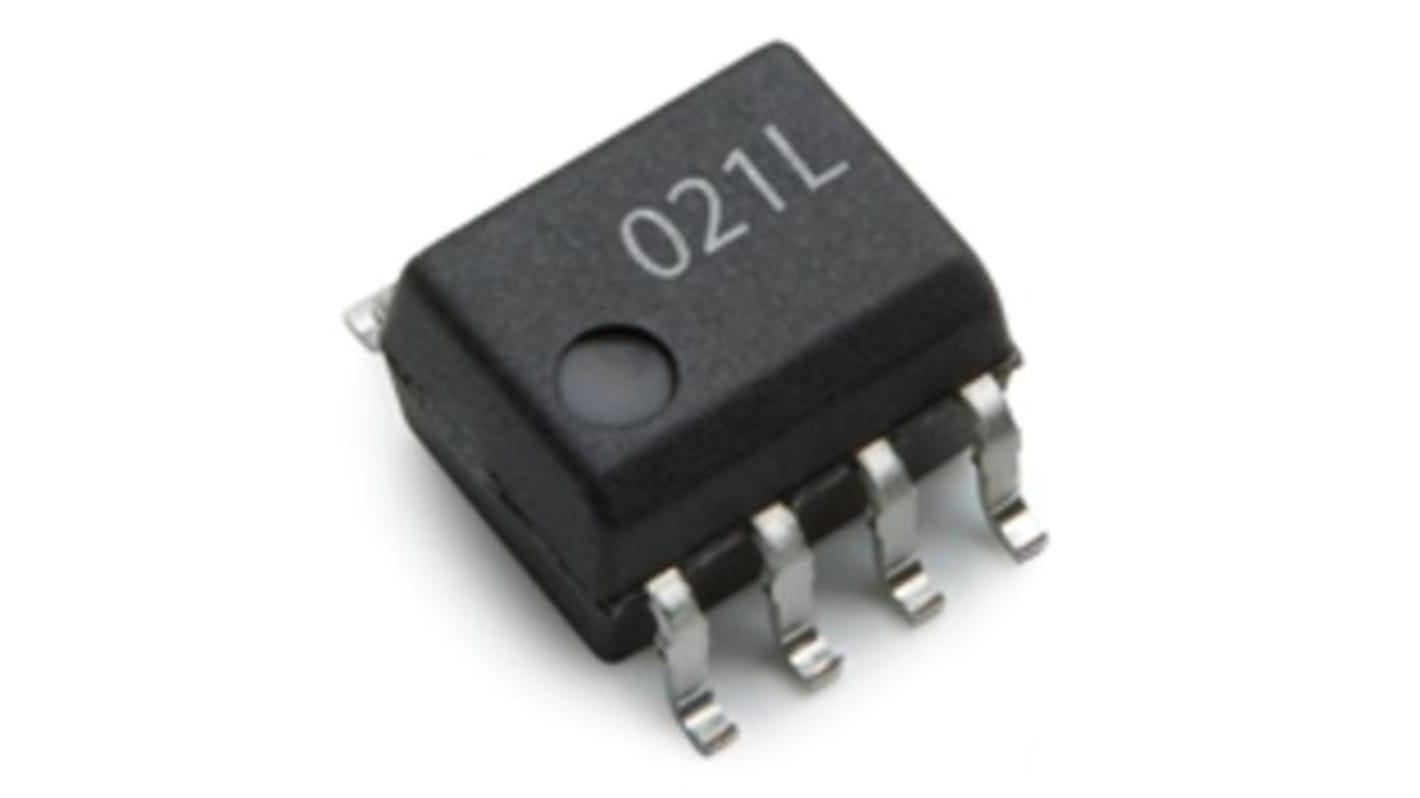

Broadcom ACPL-021L-500E DC Input Optocoupler, Surface Mount, 8-Pin SO-8

View all Optocouplers
Bulk discount available

Subtotal (1 pack of 10 units)*

£14.20

(exc. VAT)

£17.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1,380 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Per Pack*
10 - 90£1.42£14.20
100 - 240£1.224£12.24
250 - 490£1.173£11.73
500 - 990£1.062£10.62
1000 +£0.95£9.50

*price indicative

Packaging Options:
RS Stock No.:
216-3590
Mfr. Part No.:
ACPL-021L-500E
Brand:
Broadcom
Find similar products by selecting one or more attributes.
Select all

Brand

Broadcom

Mount Type

Surface Mount

Product Type

Optocoupler

Maximum Forward Voltage

2V

Number of Channels

1

Packaging

Tape & Reel

Number of Pins

8

Package Type

SO-8

Input Current Type

DC

Typical Rise Time

11μs

Isolation Voltage

567V Pk

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

105°C

Typical Fall Time

11μs

Standards/Approvals

CSA, IEC/EN/DIN EN 60747-5-5, UL 1577, RoHS

Series

ACPL

Automotive Standard

No

COO (Country of Origin):
PH
The Broadcom ACPL-021L (single channel SO-8 package) is the first industrial 5MBd low power digital optocoupler. The detector has CMOS output stage and optical receiver input stages with built-in Schmitt triggers to provide logic-compatible waveforms, eliminating the need for additional waveshaping. The optocoupler consumes extremely low power, at maximum 1.1mA IDD current per channel across temperature. With a forward LED current as low as 1.6 mA, most microprocessors can directly drive the LED.

5 Mbd Typical Signal Rate

CMOS output

Low Supply Current, IDD < 1.1mA max

Low LED Input Drive Current, IF at 1.6mA min
