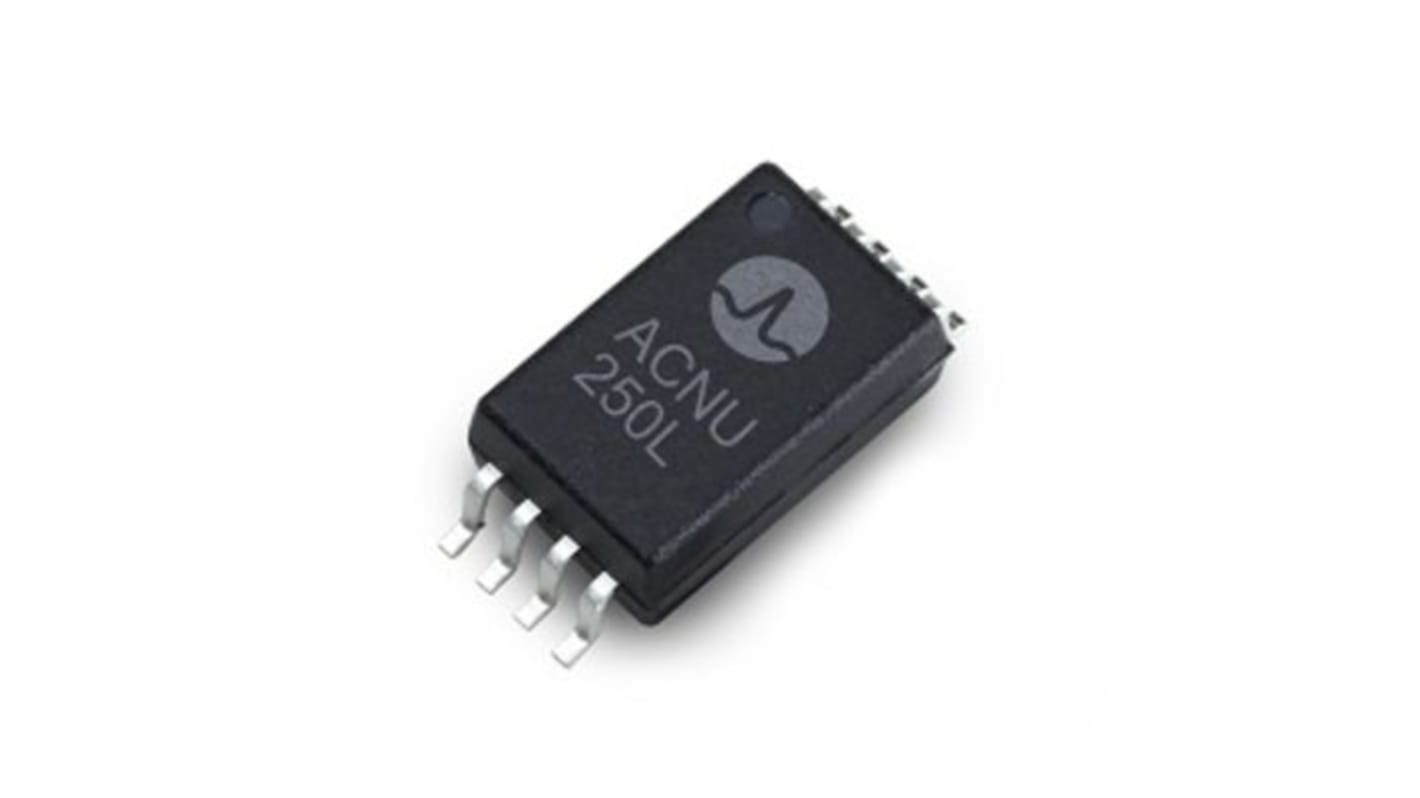

Broadcom Optocoupler, Surface Mount, 8-Pin SO
- RS Stock No.:
- 216-3587
- Mfr. Part No.:
- ACNU-250L-500E
- Brand:
- Broadcom
Subtotal (1 reel of 1000 units)*
£1,630.00
(exc. VAT)
£1,960.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1,000 unit(s) ready to ship
- Plus 2,000 unit(s) shipping from 28 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 + | £1.63 | £1,630.00 |
*price indicative
- RS Stock No.:
- 216-3587
- Mfr. Part No.:
- ACNU-250L-500E
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Product Type | Optocoupler | |
| Mount Type | Surface Mount | |
| Maximum Forward Voltage | 1.8V | |
| Number of Channels | 1 | |
| Number of Pins | 8 | |
| Package Type | SO | |
| Maximum Input Current | 80mA | |
| Isolation Voltage | 5000Vrms | |
| Logic Output | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum Current Transfer Ratio | 53% | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | CSA approval, UL1577 recognised, IEC 60747-5-5 Approval for Reinforced Insulation | |
| Minimum Current Transfer Ratio | 19% | |
| Series | ACNU | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
Product Type Optocoupler | ||
Mount Type Surface Mount | ||
Maximum Forward Voltage 1.8V | ||
Number of Channels 1 | ||
Number of Pins 8 | ||
Package Type SO | ||
Maximum Input Current 80mA | ||
Isolation Voltage 5000Vrms | ||
Logic Output Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum Current Transfer Ratio 53% | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals CSA approval, UL1577 recognised, IEC 60747-5-5 Approval for Reinforced Insulation | ||
Minimum Current Transfer Ratio 19% | ||
Series ACNU | ||
Automotive Standard No | ||
- COO (Country of Origin):
- PH
The Broadcom ACNU-250L is a single-channel 1MBd optocoupler device in an 11-mm stretched SO8 package. The device is equipped with an insulating layer between the light emitting diode and integrated photon detector to provide electrical insulation between the input and output. Having separate connections for the photodiode bias and output transistor collector reduces the base-collector capacitance and enhances the data speed up to a hundred times compared to a conventional photo-transistor coupler.
TTL compatible
Open-collector output
Guaranteed AC and DC performance over wide temperature: -40 °C to +105 °C
