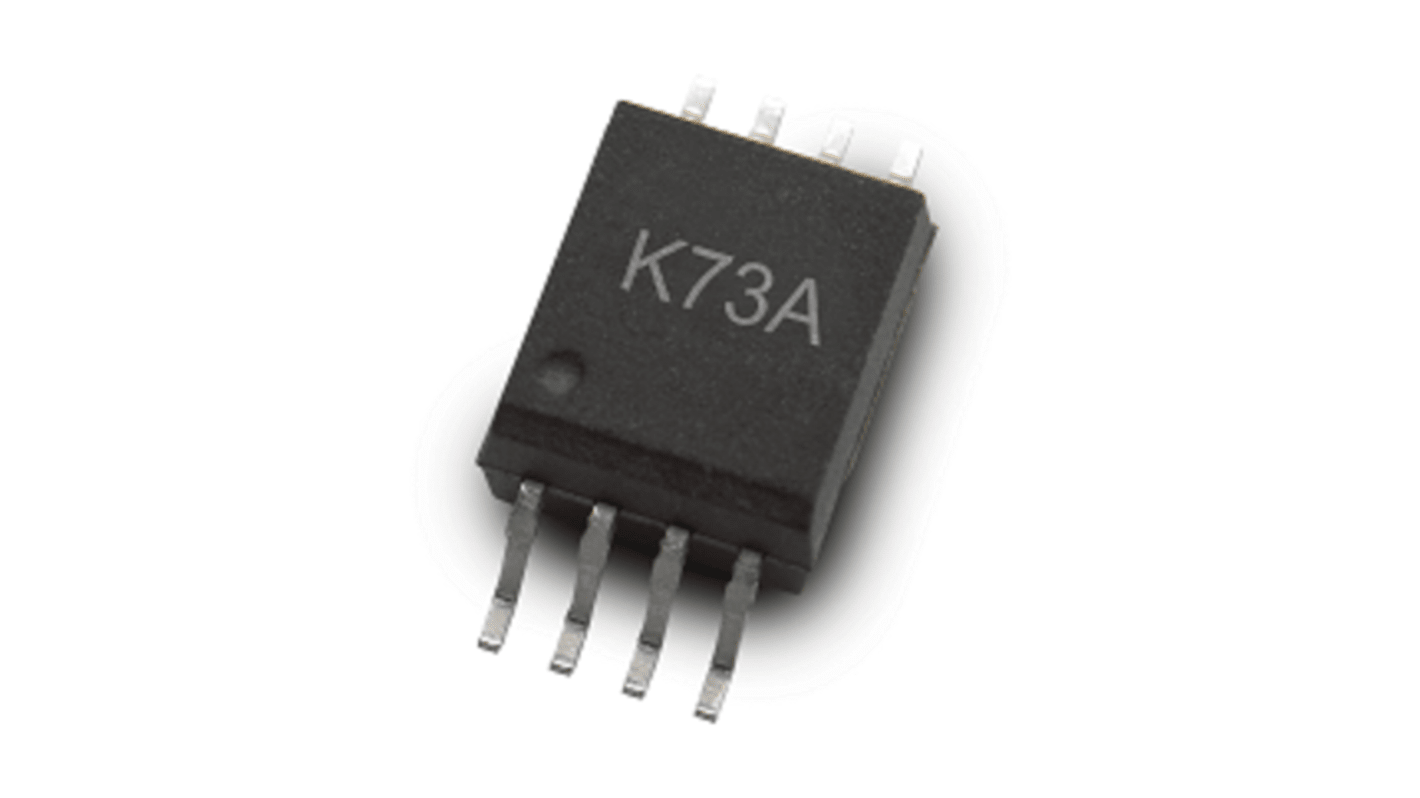

Broadcom ACPL-K73A-500E Optocoupler, Surface Mount, 8-Pin SO

View all Optocouplers

Subtotal (1 pack of 2 units)*

£8.13

(exc. VAT)

£9.756

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 756 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
2 +£4.065£8.13

*price indicative

Packaging Options:
RS Stock No.:
216-3597
Mfr. Part No.:
ACPL-K73A-500E
Brand:
Broadcom
Find similar products by selecting one or more attributes.
Select all

Brand

Broadcom

Product Type

Optocoupler

Mount Type

Surface Mount

Maximum Forward Voltage

1.7V

Number of Channels

1

Packaging

Tape & Reel

Number of Pins

8

Package Type

SO

Maximum Input Current

12mA

Isolation Voltage

5000Vrms

Minimum Operating Temperature

-40°C

Logic Output

Yes

Maximum Operating Temperature

105°C

Standards/Approvals

IEC 60747-5-5 Approval for Reinforced Insulation, CSA approval, UL1577 recognised:5000 Vrms/1 min

Series

ACPL

Automotive Standard

No

COO (Country of Origin):
PH
The Broadcom device is a low power consumption high gain single channel optocoupler. It is the equivalent dual channel product of the single channel ACPL-K70A in Stretched SO-8 footprint. Each channel can be driven with an input current as low as 40 μA and has a typical current transfer ratio of 3500 percent.

Stretched SO-8 package

Ultra Low Input Current Capability 40 μA

Specified for 3.3V and 5V Operation

TTL and CMOS Compatible Output
