Broadcom DC Input Optocoupler, Surface Mount, 8-Pin SO

View all Optocouplers
Bulk discount available

Subtotal (1 tube of 80 units)*

£232.80

(exc. VAT)

£279.20

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 320 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Per Tube*
80 - 160£2.91£232.80
240 - 400£2.794£223.52
480 - 880£2.658£212.64
960 +£2.592£207.36

*price indicative

RS Stock No.:
205-8680
Mfr. Part No.:
ACNT-H511C-000E
Brand:
Broadcom
Find similar products by selecting one or more attributes.
Select all

Brand

Broadcom

Mount Type

Surface Mount

Product Type

Optocoupler

Maximum Forward Voltage

1.7V

Number of Channels

1

Packaging

Tape & Reel

Number of Pins

8

Package Type

SO

Input Current Type

DC

Maximum Input Current

18mA

Isolation Voltage

7500Vrms

Minimum Operating Temperature

-40°C

Logic Output

Yes

Maximum Operating Temperature

105°C

Maximum Current Transfer Ratio

80%

Minimum Current Transfer Ratio

31%

Standards/Approvals

UL1577 recognised:7500VRMS for 1 minute, CSA approval, IEC 60747-5-5 Approval for Reinforced Insulation

Series

ACNT

Automotive Standard

No

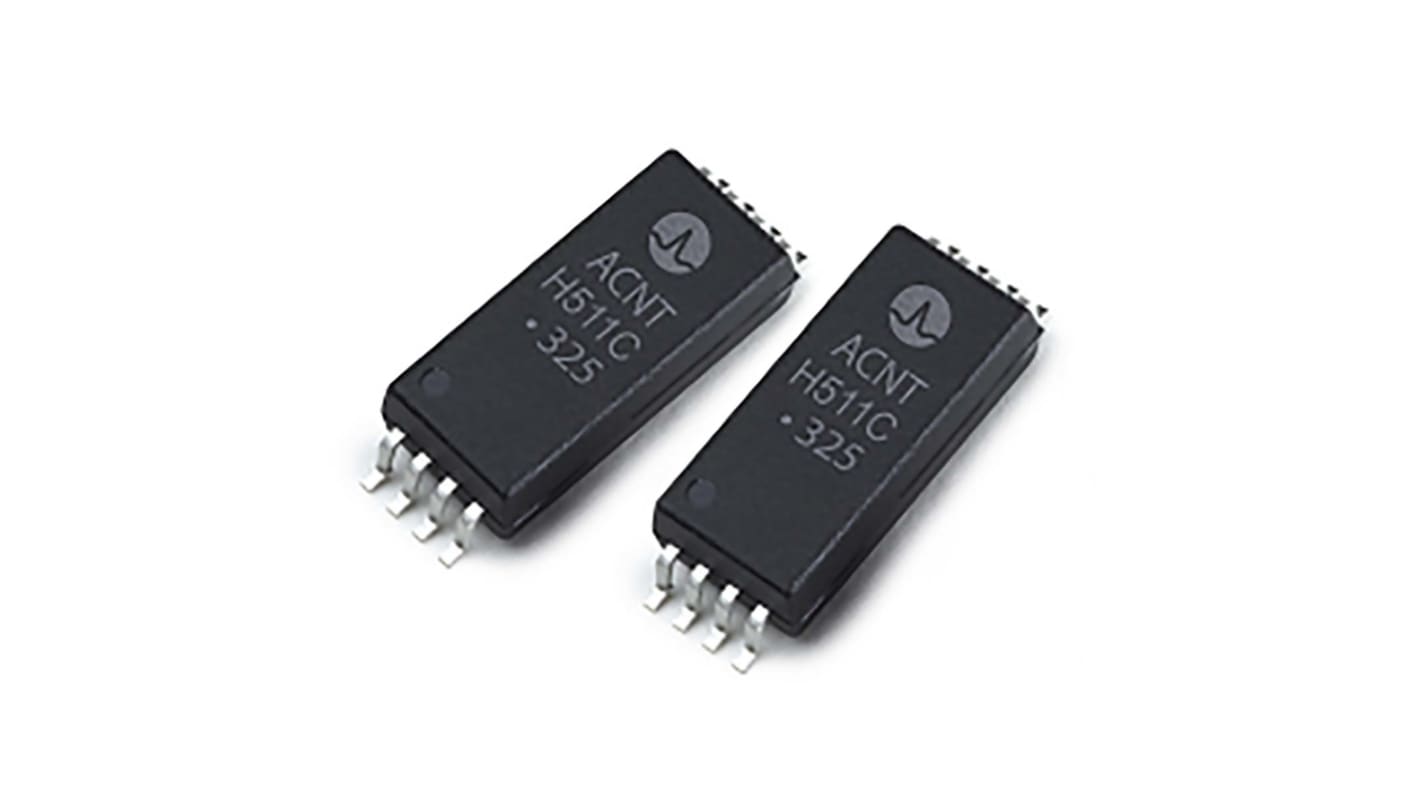

The Broadcom ACNT-H511/H511C is a single-channel open-collector output optocoupler in Stretched SO8 footprint. The ACNT-H511C is a high CTI optocoupler that can meet a

wider range of creepage values for a higher working voltage or rated insulation voltage. With high CTI, material group upgrade to I, the overall creepage requirements will reduce by half.

CTI 600V, Material Group I (ACNT-H511C)

TTL compatible

Package: 15-mm stretched SO8 package

Open-Collector Output

40 kV/μs typical common-mode rejection at VCM = 1500V
