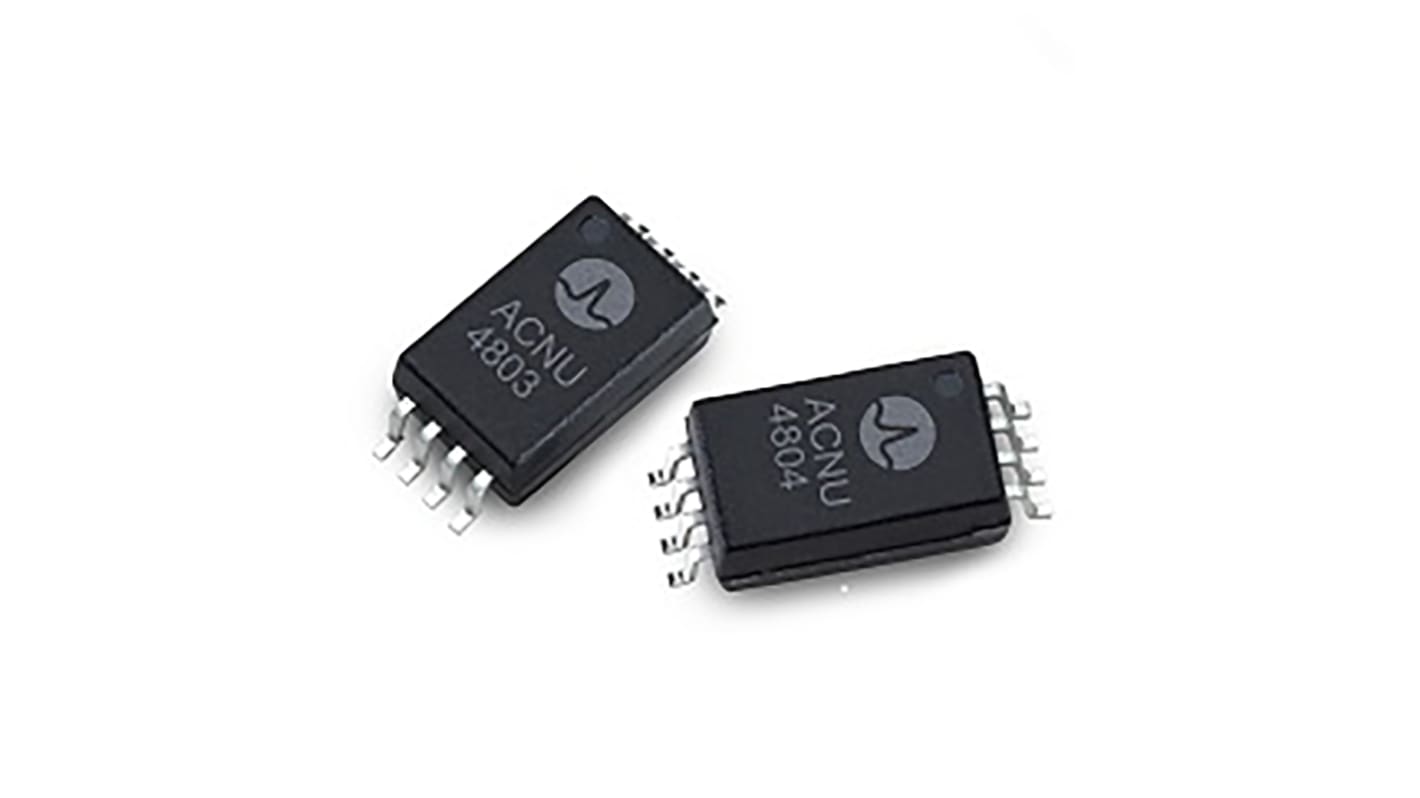

Broadcom, ACNU-4803-000E Optocoupler, Surface Mount, 8-Pin
- RS Stock No.:
- 188-6584
- Mfr. Part No.:
- ACNU-4803-000E
- Brand:
- Broadcom
Subtotal (1 pack of 5 units)*
£13.64
(exc. VAT)
£16.37
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 190 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £2.728 | £13.64 |
*price indicative
- RS Stock No.:
- 188-6584
- Mfr. Part No.:
- ACNU-4803-000E
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Mounting Type | Surface Mount | |
| Maximum Forward Voltage | 1.85V | |
| Number of Pins | 8 | |
| Isolation Voltage | 5000 V | |
| Series | ACNU | |
Select all | ||
|---|---|---|
Brand Broadcom | ||
Mounting Type Surface Mount | ||
Maximum Forward Voltage 1.85V | ||
Number of Pins 8 | ||
Isolation Voltage 5000 V | ||
Series ACNU | ||
11-mm creepage and 10.5-mm clearance
Positive output type (totem pole output)
Truth table guaranteed: Vcc from 4.5V to 30V
Performance specified for common IPM applications over industrial temperature range
LED drive current: 12mA (min)
Minimum 50 kV/μs high common-mode rejection at VCM = 1500 V
Low propagation delay, TPLH / TPHL: 120ns / 150ns (max)
Minimized Pulse Width Distortion (PWD)
Compact, auto-insertable SSO8 package
Industrial temperature range: -40°C to 105°C
High speed: 10MBd typ
Hysteresis
Applications
IPM (Intelligent Power Module) interface isolation
Isolated IGBT/MOSFET gate drive
AC and brushless DC motor drives
Industrial inverters
General digital isolation
Positive output type (totem pole output)
Truth table guaranteed: Vcc from 4.5V to 30V
Performance specified for common IPM applications over industrial temperature range
LED drive current: 12mA (min)
Minimum 50 kV/μs high common-mode rejection at VCM = 1500 V
Low propagation delay, TPLH / TPHL: 120ns / 150ns (max)
Minimized Pulse Width Distortion (PWD)
Compact, auto-insertable SSO8 package
Industrial temperature range: -40°C to 105°C
High speed: 10MBd typ
Hysteresis
Applications
IPM (Intelligent Power Module) interface isolation
Isolated IGBT/MOSFET gate drive
AC and brushless DC motor drives
Industrial inverters
General digital isolation
