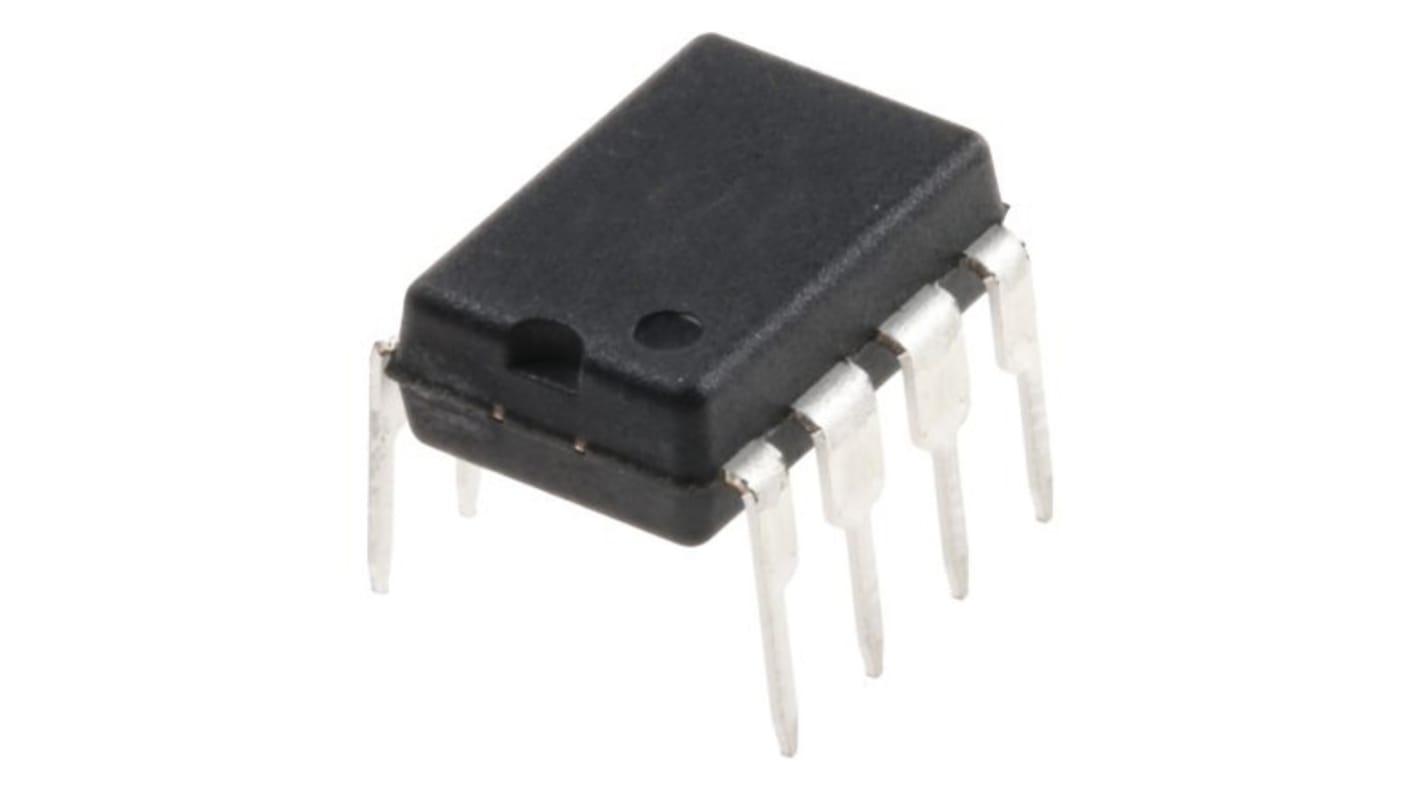

onsemi, HCPL3700VM CMOS Output Optocoupler, Through Hole, 8-Pin DIP

View all Optocouplers
Bulk discount available

Subtotal (1 tube of 1000 units)*

£1,597.00

(exc. VAT)

£1,916.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 02 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
1000 - 1000£1.597£1,597.00
2000 +£1.557£1,557.00

*price indicative

RS Stock No.:
185-8015
Mfr. Part No.:
HCPL3700VM
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Mounting Type

Through Hole

Output Device

CMOS

Maximum Forward Voltage

0.65V

Number of Channels

1

Number of Pins

8

Package Type

DIP

Typical Rise Time

45µs

Maximum Input Current

25 mA

Isolation Voltage

5000 Vrms ac

Logic Output

Yes

Typical Fall Time

0.5µs

Series

HCPL

Special Features

AC or DC Input, Logic Level Compatibility, Programmable Sense Voltage

COO (Country of Origin):
TH
The HCPL3700M voltage/current threshold detection optocoupler consists of an AlGaAs LED connected to a threshold sensing input buffer IC which are optically coupled to a high gain darlington output. The input buffer chip is capable of controlling threshold levels over a wide range of input voltages with a single resistor. The output is TTL and CMOS compatible.

AC or DC Input
Programmable Sense Voltage
Logic Level Compatibility
Threshold Guaranteed Over Temperature (0°C to 70°C)
Applications
Low Voltage Detection
5 V to 240 V AC/DC Voltage Sensing
Relay Contact Monitor
Current Sensing
Microprocessor Interface
Industrial Controls
