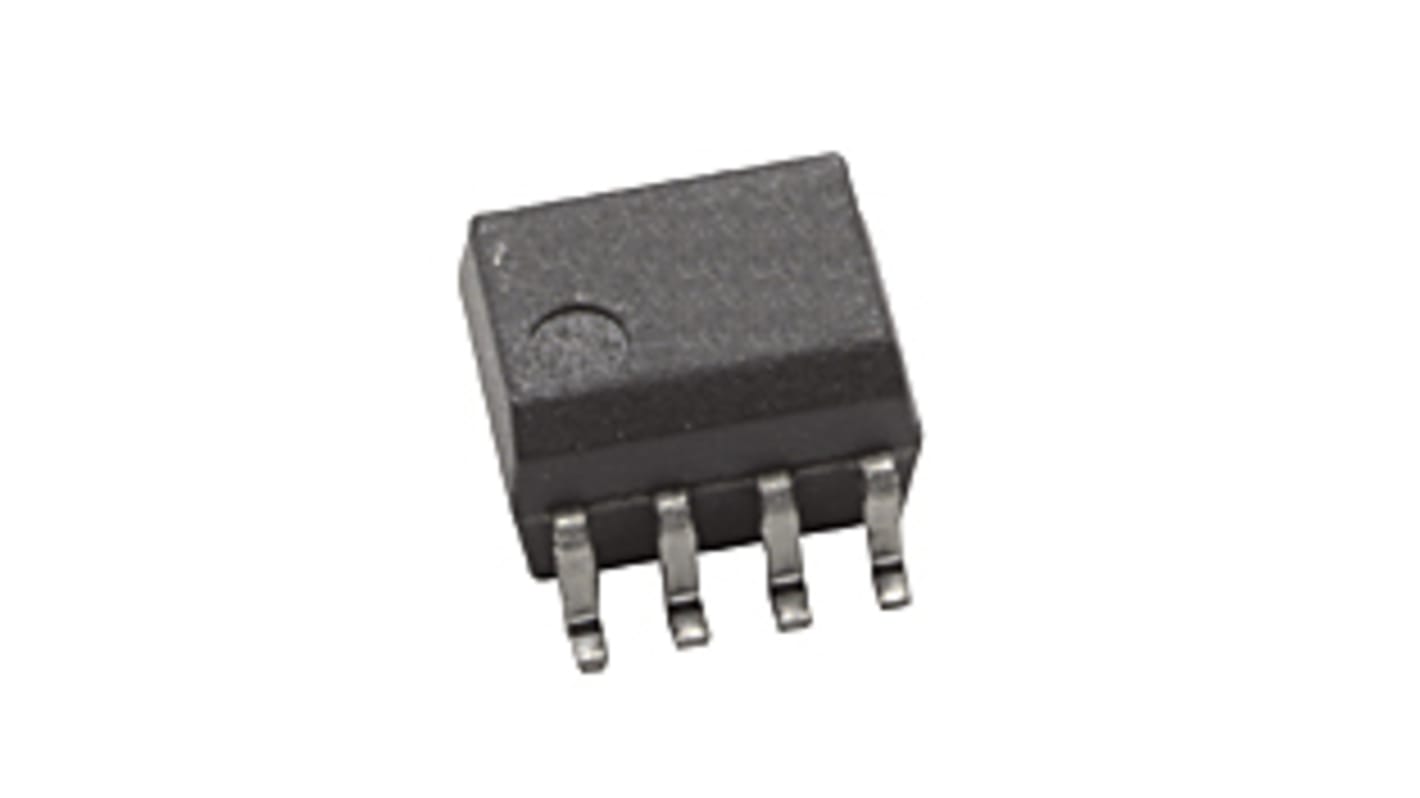

Broadcom HCPL-063A-500E AC/DC Input Optocoupler, Surface Mount, 8-Pin SO
- RS Stock No.:
- 174-3657
- Mfr. Part No.:
- HCPL-063A-500E
- Brand:
- Broadcom
Subtotal (1 reel of 1500 units)*
£4,260.00
(exc. VAT)
£5,115.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1500 + | £2.84 | £4,260.00 |
*price indicative
- RS Stock No.:
- 174-3657
- Mfr. Part No.:
- HCPL-063A-500E
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Product Type | Optocoupler | |
| Mount Type | Surface Mount | |
| Maximum Forward Voltage | 1.6V | |
| Number of Channels | 1 | |
| Packaging | Tape & Reel | |
| Number of Pins | 8 | |
| Package Type | SO | |
| Input Current Type | AC/DC | |
| Typical Rise Time | 42ns | |
| Maximum Input Current | 10mA | |
| Isolation Voltage | 3750Vrms | |
| Minimum Operating Temperature | -40°C | |
| Logic Output | Yes | |
| Maximum Operating Temperature | 85°C | |
| Typical Fall Time | 12ns | |
| Standards/Approvals | UL, IEC, EN, CSA | |
| Series | HCPL | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
Product Type Optocoupler | ||
Mount Type Surface Mount | ||
Maximum Forward Voltage 1.6V | ||
Number of Channels 1 | ||
Packaging Tape & Reel | ||
Number of Pins 8 | ||
Package Type SO | ||
Input Current Type AC/DC | ||
Typical Rise Time 42ns | ||
Maximum Input Current 10mA | ||
Isolation Voltage 3750Vrms | ||
Minimum Operating Temperature -40°C | ||
Logic Output Yes | ||
Maximum Operating Temperature 85°C | ||
Typical Fall Time 12ns | ||
Standards/Approvals UL, IEC, EN, CSA | ||
Series HCPL | ||
Automotive Standard No | ||
The Broadcom HCPL-261A optocoupler gate family has all the benefits of the industry standard 6N137 family with the added benefit of HCMOS compatible input current. This allows direct interface to all common circuit topologies without additional LED buffer or drive components. The AlGaAs LED used allows lower drive currents and reduces degradation by using the latest LED technology.
HCMOS/LSTTL/TTL Performance Compatible
High Speed: 10 MBd Typical
AC and DC Performance Specified over Industrial Temperature Range - 40oC to 85oC
Available in 8 Pin DIP, SOIC-8 Packages
