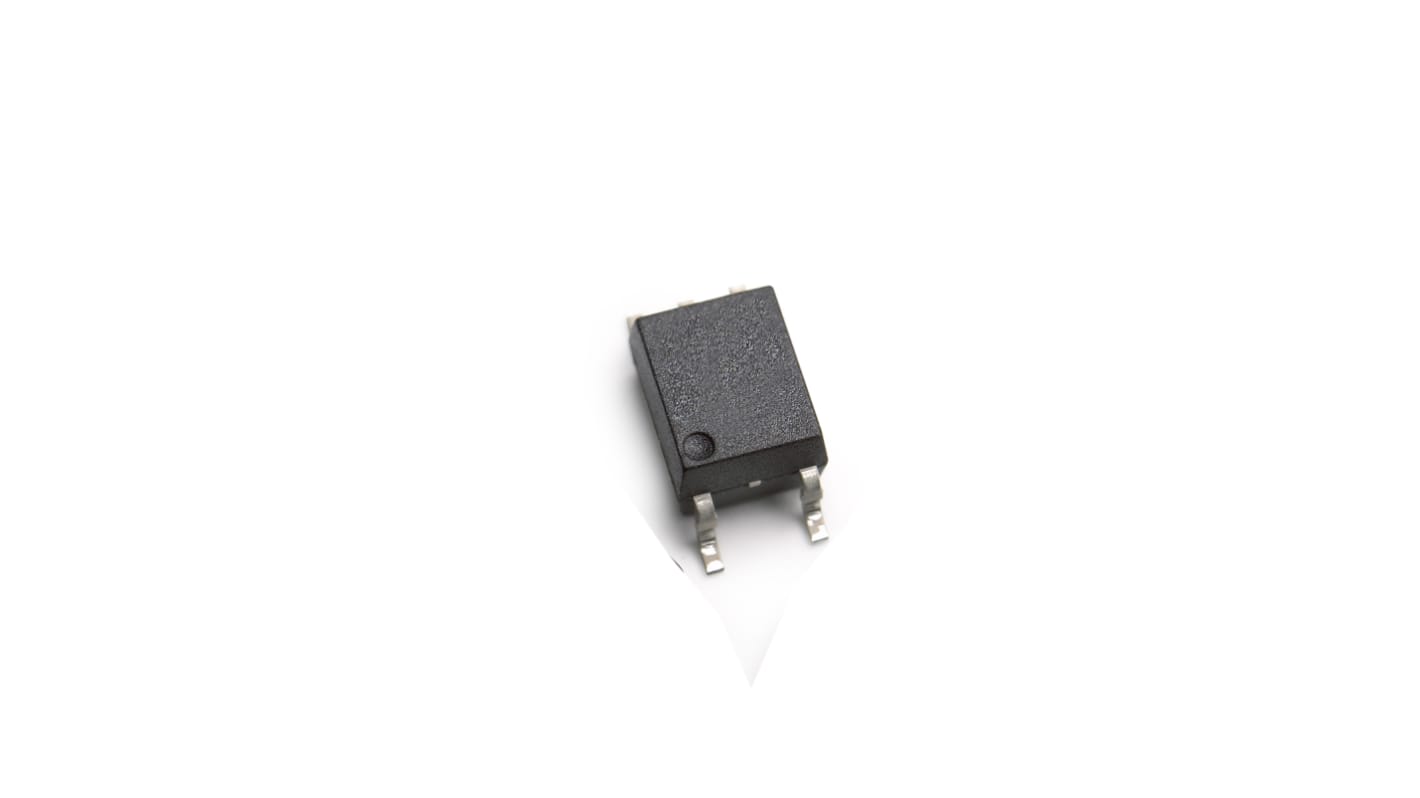

Broadcom, HCPL-M600-500E AC/DC Input Transistor Output Optocoupler, Surface Mount, 5-Pin SO
- RS Stock No.:
- 174-4195
- Mfr. Part No.:
- HCPL-M600-500E
- Brand:
- Broadcom
Subtotal (1 pack of 5 units)*
£10.28
(exc. VAT)
£12.335
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 25 unit(s) ready to ship
- Plus 715 unit(s) shipping from 29 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £2.056 | £10.28 |
*price indicative
- RS Stock No.:
- 174-4195
- Mfr. Part No.:
- HCPL-M600-500E
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Mounting Type | Surface Mount | |
| Output Device | Transistor | |
| Maximum Forward Voltage | 1.85V | |
| Number of Channels | 1 | |
| Number of Pins | 5 | |
| Package Type | SO | |
| Input Current Type | AC/DC | |
| Typical Rise Time | 24ns | |
| Maximum Input Current | 15 mA | |
| Isolation Voltage | 3750 Vrms | |
| Logic Output | Yes | |
| Typical Fall Time | 10ns | |
| Series | HCPL | |
Select all | ||
|---|---|---|
Brand Broadcom | ||
Mounting Type Surface Mount | ||
Output Device Transistor | ||
Maximum Forward Voltage 1.85V | ||
Number of Channels 1 | ||
Number of Pins 5 | ||
Package Type SO | ||
Input Current Type AC/DC | ||
Typical Rise Time 24ns | ||
Maximum Input Current 15 mA | ||
Isolation Voltage 3750 Vrms | ||
Logic Output Yes | ||
Typical Fall Time 10ns | ||
Series HCPL | ||
The Broadcom HCPL-M600 is suitable for high speed logic interfacing, input/output buffering, as line receivers in environments that conventional line receivers cannot tolerate, and are recommended for use in extremely high ground or induced noise environments.
Surface Mountable
Very Small, Low Profile JEDEC Registered Package Outline
Compatible with Infrared Vapour Phase Reflow and Wave Soldering Processes
High Speed: 10 MBd
LSTTL/TTL Compatible
Low Input Current Capability: 5 mA
Guaranteed ac and dc Performance over Temperature: -40oC to 85oC
Very Small, Low Profile JEDEC Registered Package Outline
Compatible with Infrared Vapour Phase Reflow and Wave Soldering Processes
High Speed: 10 MBd
LSTTL/TTL Compatible
Low Input Current Capability: 5 mA
Guaranteed ac and dc Performance over Temperature: -40oC to 85oC
