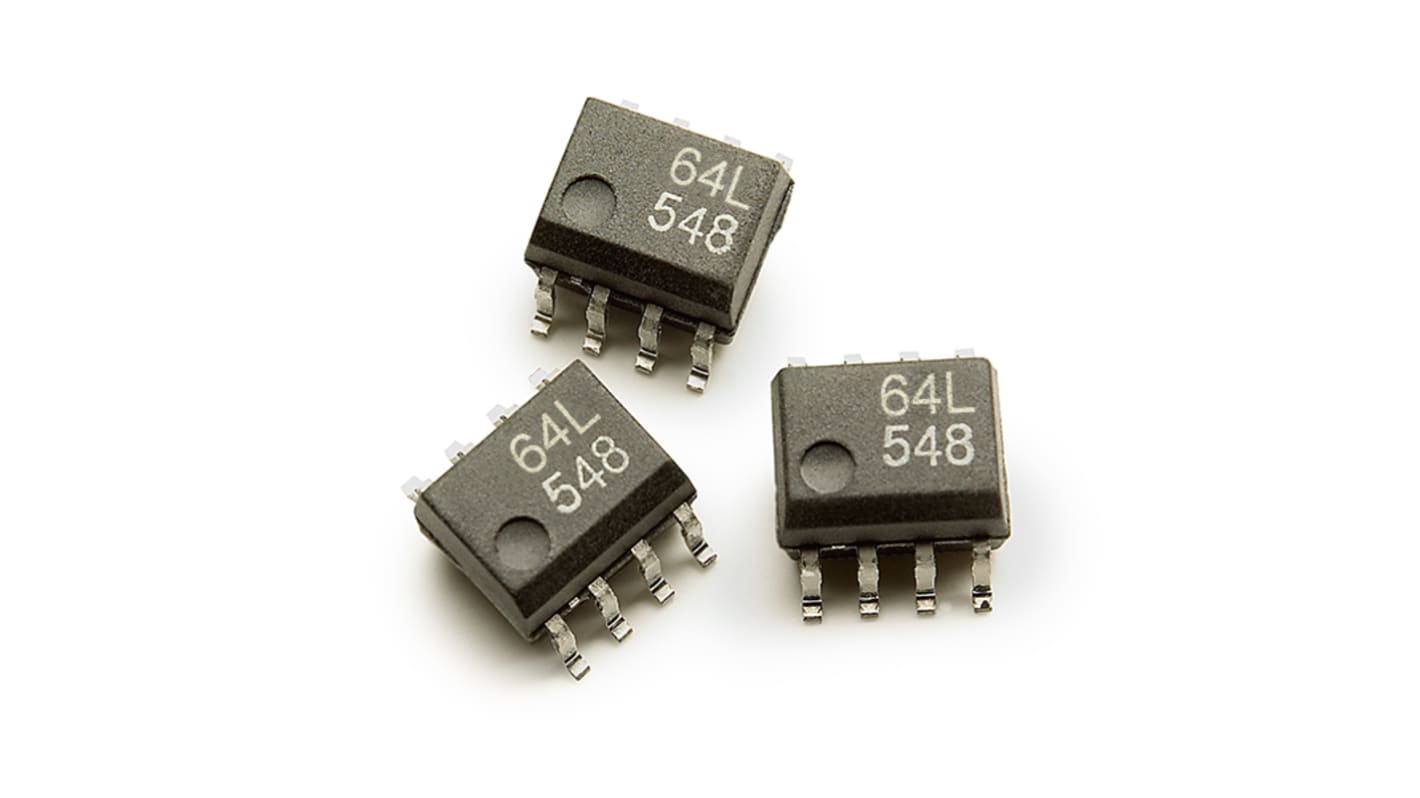

Broadcom ACPL-064L-500E AC/DC Input 2-Channel Optocoupler, Surface, 8-Pin SO

RS Stock No.:: 174-3606
Mfr. Part No.:: ACPL-064L-500E
Brand:: Broadcom

Broadcom ACPL-064L-500E AC/DC Input 2-Channel Optocoupler, Surface, 8-Pin SO

Subtotal (1 reel of 1500 units)*

£2,685.00

(exc. VAT)

£3,225.00

(inc. VAT)

FREE delivery for orders over £60.00

Temporarily out of stock

Shipping from 06 January 2027

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Reel*
1500 +	£1.79	£2,685.00

*price indicative

RS Stock No.:: 174-3606
Mfr. Part No.:: ACPL-064L-500E
Brand:: Broadcom

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Broadcom
	Product Type	Optocoupler
	Mount Type	Surface
	Output Type	CMOS
	Maximum Forward Voltage	1.7V
	Packaging	SO
	Number of Channels	2
	Number of Pins	8
	Package Type	SO
	Input Current Type	AC/DC
	Typical Rise Time	12ns
	Maximum Input Current	6mA
	Isolation Voltage	3750Vrms
	Minimum Operating Temperature	-40°C
	Logic Output	Yes
	Maximum Current Transfer Ratio	400%
	Maximum Operating Temperature	105°C
	Standards/Approvals	IEC/EN/DIN EN 60747-5-5, UL 1577, CSA, RoHS
	Minimum Current Transfer Ratio	20%
	Typical Fall Time	12ns
	Series	ACPL
	Automotive Standard	No

	Select all
	Brand Broadcom
	Product Type Optocoupler
	Mount Type Surface
	Output Type CMOS
	Maximum Forward Voltage 1.7V
	Packaging SO
	Number of Channels 2
	Number of Pins 8
	Package Type SO
	Input Current Type AC/DC
	Typical Rise Time 12ns
	Maximum Input Current 6mA
	Isolation Voltage 3750Vrms
	Minimum Operating Temperature -40°C
	Logic Output Yes
	Maximum Current Transfer Ratio 400%
	Maximum Operating Temperature 105°C
	Standards/Approvals IEC/EN/DIN EN 60747-5-5, UL 1577, CSA, RoHS
	Minimum Current Transfer Ratio 20%
	Typical Fall Time 12ns
	Series ACPL
	Automotive Standard No

Datasheet

Broadcom ACPL Series Optocoupler, 3750Vrms Isolation Voltage, 105°C Maximum Operating Temperature - ACPL-064L-500E

This optocoupler provides galvanic separation between input and output stages for signal isolation in electronic systems. It is designed for surface mounting and supports AC and DC drive conditions while operating across an extended ambient temperature range, making it suitable for industrial circuit isolation where compact, dual‑channel signal transfer is required.

Features and Benefits:

• 3750Vrms isolation ensures high‑voltage separation for safety
• Dual‑channel SO package enables two isolated signal paths
• 20%-400% current transfer ratio offers a wide signal gain range
• 6mA maximum input current minimises drive requirements
• 12ns rise and fall times deliver Rapid signal switching
• −40 to 105°C operating range supports harsh environments

Applications

• Used for isolating control signals in power supplies
• Suitable for interfacing microcontrollers with high‑voltage circuits
• Ideal for sensor signal isolation in industrial automation
• Can be used for switching logic in dual‑channel designs
• Used with mixed AC/DC input systems requiring separation

What standards does it meet for safety and regulatory acceptance?

It conforms to IEC/EN/DIN EN 60747‑5‑5 and UL 1577 and is covered by CSA and RoHS approvals.

How many pins and channels are available for PCB implementation?

It uses an eight‑pin SO package and provides two independent channels.

What are the electrical limits for LED drive and output behaviour?

The forward voltage does not exceed 1.7V and the input current is capped at 6mA while the CTR ranges from 20% to 400%.

What kind of output logic compatibility can be expected?

The device provides a logic‑compatible output suitable for digital interfacing.

Is this component suitable for automotive‑grade applications?

It is not certified to automotive standards and therefore not intended for automotive use.
