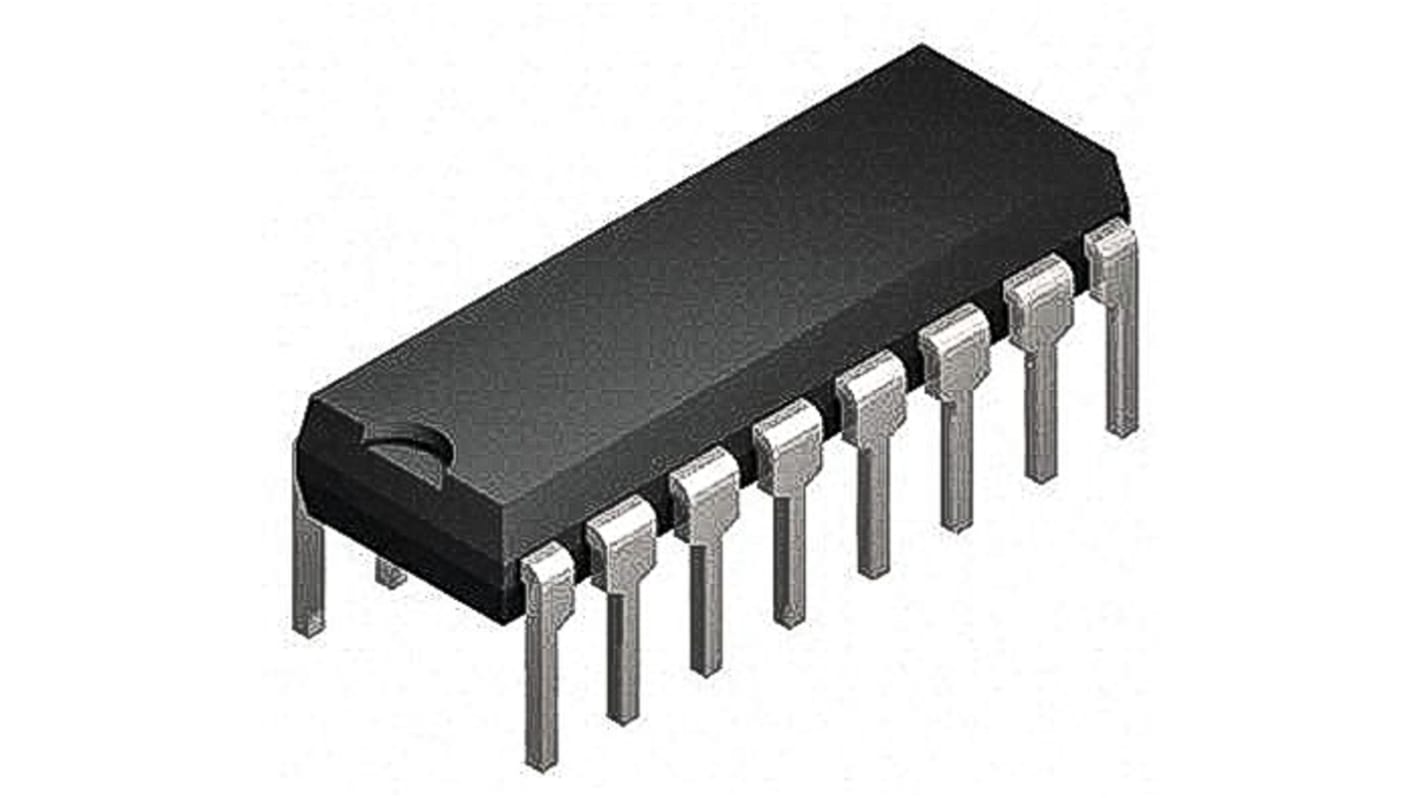

Isocom TLP521-4GBG Optocoupler, Surface, 16-Pin DIP
- RS Stock No.:
- 171-8050
- Mfr. Part No.:
- TLP521-4GBG
- Brand:
- Isocom
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 171-8050
- Mfr. Part No.:
- TLP521-4GBG
- Brand:
- Isocom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Isocom | |
| Product Type | Optocoupler | |
| Mount Type | Surface | |
| Maximum Forward Voltage | 1.3V | |
| Number of Pins | 16 | |
| Package Type | DIP | |
| Typical Rise Time | 4μs | |
| Maximum Input Current | 50mA | |
| Isolation Voltage | 5300Vrms | |
| Minimum Operating Temperature | 30°C | |
| Maximum Current Transfer Ratio | 600% | |
| Maximum Operating Temperature | 100°C | |
| Typical Fall Time | 3μs | |
| Standards/Approvals | VDE, RoHS, UL | |
| Minimum Current Transfer Ratio | 30% | |
| Series | TLP521 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Isocom | ||
Product Type Optocoupler | ||
Mount Type Surface | ||
Maximum Forward Voltage 1.3V | ||
Number of Pins 16 | ||
Package Type DIP | ||
Typical Rise Time 4μs | ||
Maximum Input Current 50mA | ||
Isolation Voltage 5300Vrms | ||
Minimum Operating Temperature 30°C | ||
Maximum Current Transfer Ratio 600% | ||
Maximum Operating Temperature 100°C | ||
Typical Fall Time 3μs | ||
Standards/Approvals VDE, RoHS, UL | ||
Minimum Current Transfer Ratio 30% | ||
Series TLP521 | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TH
