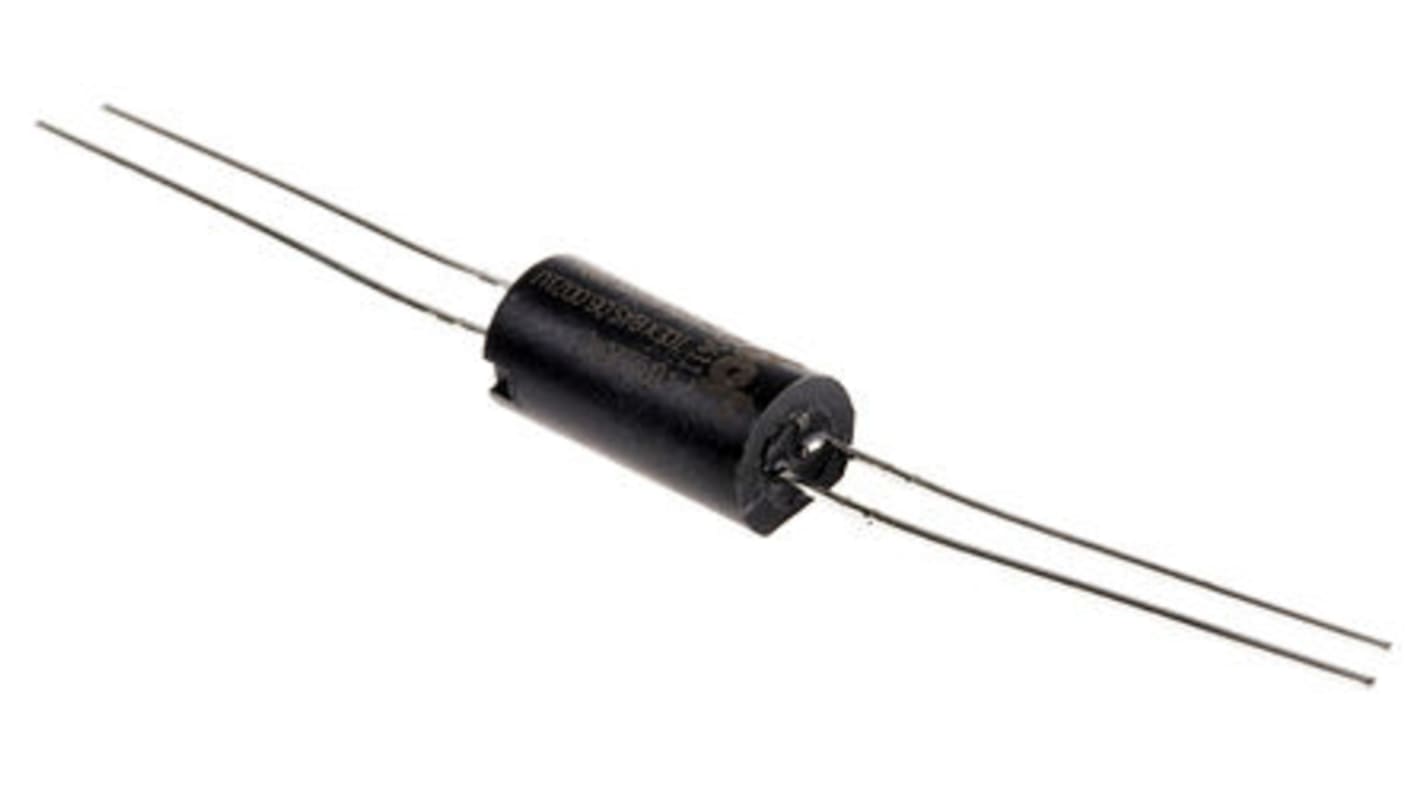

Optek, OPI1264C DC Input NPN Phototransistor, Photosensor Output Optocoupler, Through Hole, 4-Pin
- RS Stock No.:
- 170-0941
- Mfr. Part No.:
- OPI1264C
- Brand:
- Optek
Bulk discount available
Subtotal (1 bag of 25 units)*
£55.00
(exc. VAT)
£66.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 200 unit(s) ready to ship
- Plus 25 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 25 - 100 | £2.20 | £55.00 |
| 125 - 225 | £2.018 | £50.45 |
| 250 + | £1.967 | £49.18 |
*price indicative
- RS Stock No.:
- 170-0941
- Mfr. Part No.:
- OPI1264C
- Brand:
- Optek
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Optek | |
| Mounting Type | Through Hole | |
| Output Device | NPN Phototransistor, Photosensor | |
| Maximum Forward Voltage | 1.6V | |
| Number of Pins | 4 | |
| Input Current Type | DC | |
| Maximum Input Current | 40 mA | |
| Isolation Voltage | 15 kV dc Vrms | |
| Minimum Current Transfer Ratio | 100% | |
| Series | OPI1264 | |
Select all | ||
|---|---|---|
Brand Optek | ||
Mounting Type Through Hole | ||
Output Device NPN Phototransistor, Photosensor | ||
Maximum Forward Voltage 1.6V | ||
Number of Pins 4 | ||
Input Current Type DC | ||
Maximum Input Current 40 mA | ||
Isolation Voltage 15 kV dc Vrms | ||
Minimum Current Transfer Ratio 100% | ||
Series OPI1264 | ||
- COO (Country of Origin):
- MX
OPI110 and OPI1264 Series Optically Coupled Isolators
The OPI110 and OPI1264 series of optoisolators consist of an 890 nm IR LED and a NPN phototransistor sensor. They are housed within an opaque package which has a transmissive path between the IR LED and the photosensor. Suitable applications for the OPI120 and OPI123 series include; high voltage isolation between input and output, electrical isolation, and industrial, medical and office equipment.
Optocouplers, Optek
