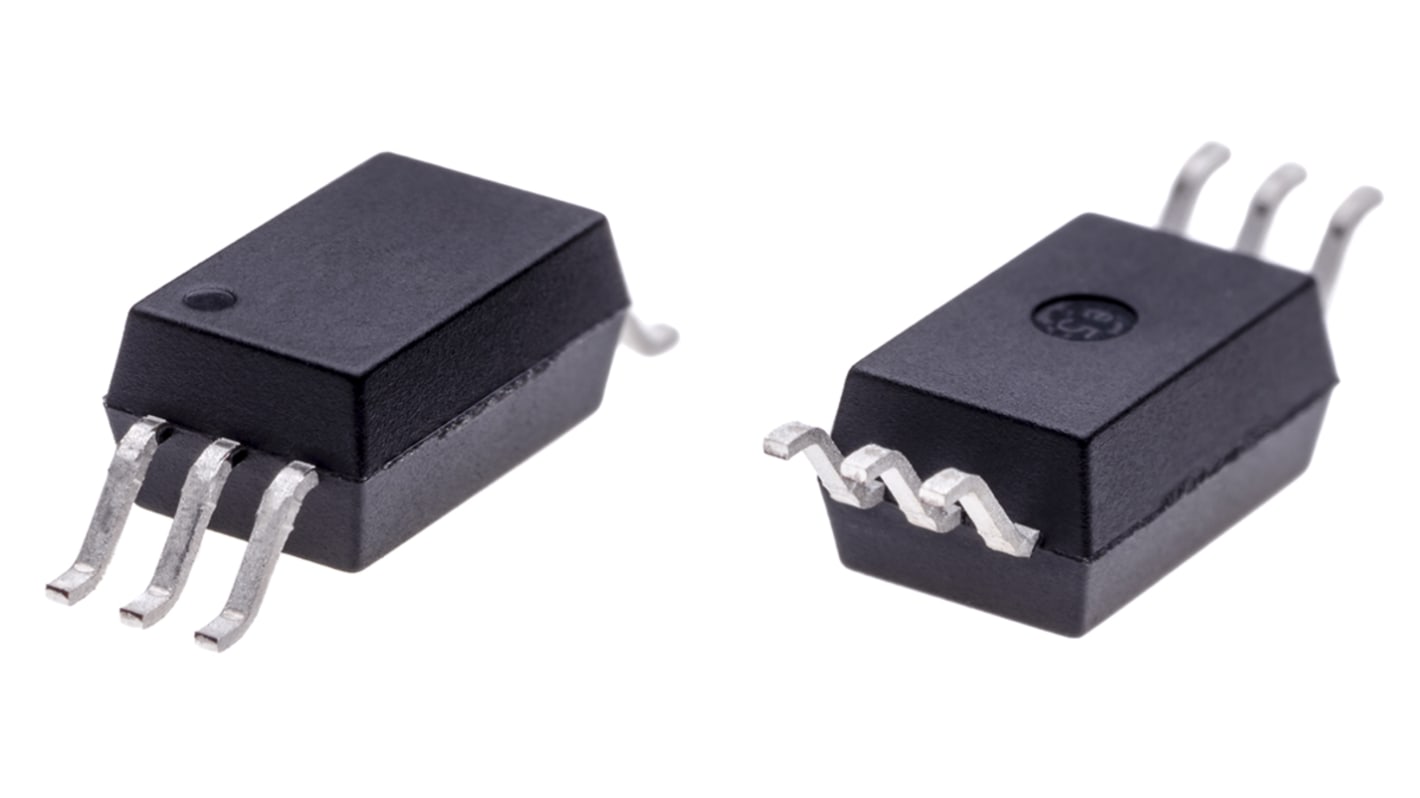

Isocom, IS314W DC Input IGBT, MOSFET Output Dual Optocoupler, Surface Mount, 6-Pin SO
- RS Stock No.:
- 161-1057
- Mfr. Part No.:
- IS314W
- Brand:
- Isocom
Bulk discount available
Subtotal (1 reel of 1000 units)*
£868.00
(exc. VAT)
£1,042.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 04 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
1000 - 1000 | £0.868 | £868.00 |
2000 + | £0.846 | £846.00 |
*price indicative
- RS Stock No.:
- 161-1057
- Mfr. Part No.:
- IS314W
- Brand:
- Isocom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Isocom | |
Mounting Type | Surface Mount | |
Output Device | IGBT, MOSFET | |
Maximum Forward Voltage | 1.8V | |
Number of Channels | 2 | |
Number of Pins | 6 | |
Package Type | SO | |
Input Current Type | DC | |
Typical Rise Time | 35ns | |
Maximum Input Current | 1 A | |
Isolation Voltage | 5000 Vrms | |
Typical Fall Time | 35ns | |
Series | IS | |
Select all | ||
---|---|---|
Brand Isocom | ||
Mounting Type Surface Mount | ||
Output Device IGBT, MOSFET | ||
Maximum Forward Voltage 1.8V | ||
Number of Channels 2 | ||
Number of Pins 6 | ||
Package Type SO | ||
Input Current Type DC | ||
Typical Rise Time 35ns | ||
Maximum Input Current 1 A | ||
Isolation Voltage 5000 Vrms | ||
Typical Fall Time 35ns | ||
Series IS | ||
- COO (Country of Origin):
- CN
The IS314W Photo coupler is ideally suited for driving power IGBTs and MOSFETs used in inverters of motor control and of power supply system. It contains an AlGaAs LED optically coupled to an integrated circuit with a power output stage. The device is in Stretched SO6 package.
1.0A Maximum Peak Output Current
0.8A Minimum Peak Output Current
Rail-to-Rail output voltage
20kV/μs Minimum Common Mode Rejection at VCM 1500V
Maximum Propagation Delay 200ns
Maximum Propagation Delay Difference 100ns
Wide Operating Voltage Range VCC 10 to 30 V
Maximum Supply Current ICC 3.0mA
Under Voltage Lock Out (UVLO) Protection with
Hysteresis
Guaranteed Performance over Temperature Range - 40°C to +105°C
MSL Level 1
APPLICATIONS:
IGBT/MOSFET Gate Drive
UPS
Inverters
Switching Power Supplies
0.8A Minimum Peak Output Current
Rail-to-Rail output voltage
20kV/μs Minimum Common Mode Rejection at VCM 1500V
Maximum Propagation Delay 200ns
Maximum Propagation Delay Difference 100ns
Wide Operating Voltage Range VCC 10 to 30 V
Maximum Supply Current ICC 3.0mA
Under Voltage Lock Out (UVLO) Protection with
Hysteresis
Guaranteed Performance over Temperature Range - 40°C to +105°C
MSL Level 1
APPLICATIONS:
IGBT/MOSFET Gate Drive
UPS
Inverters
Switching Power Supplies
