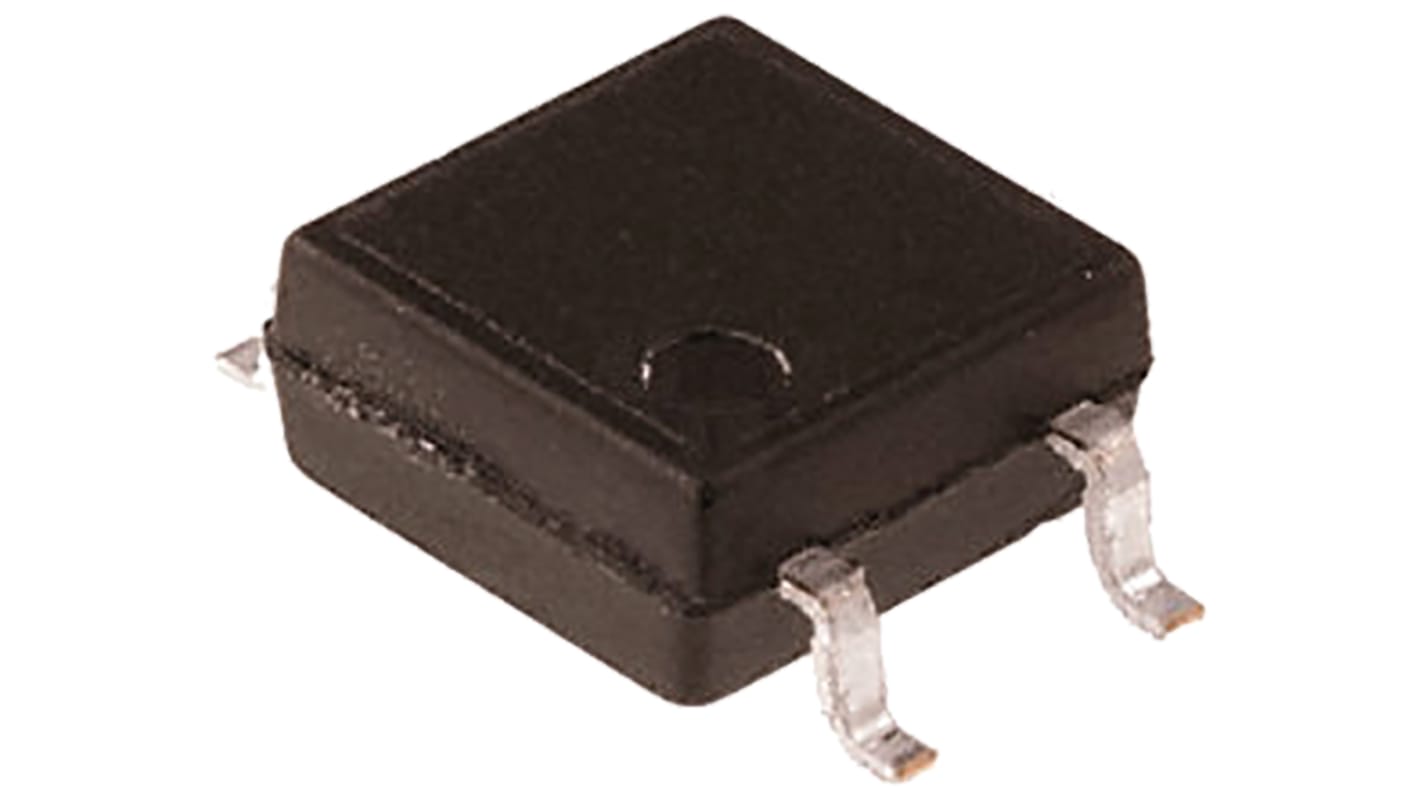

Toshiba TLP183(BL-TPL,E(T DC Input Optocoupler, Surface, 4-Pin SO
- RS Stock No.:
- 144-5266
- Mfr. Part No.:
- TLP183(BL-TPL,E(T
- Brand:
- Toshiba
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 20 units)*
£5.48
(exc. VAT)
£6.58
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 140 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 20 - 180 | £0.274 | £5.48 |
| 200 - 480 | £0.267 | £5.34 |
| 500 - 980 | £0.263 | £5.26 |
| 1000 - 1980 | £0.257 | £5.14 |
| 2000 + | £0.252 | £5.04 |
*price indicative
- RS Stock No.:
- 144-5266
- Mfr. Part No.:
- TLP183(BL-TPL,E(T
- Brand:
- Toshiba
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Toshiba | |
| Mount Type | Surface | |
| Product Type | Optocoupler | |
| Maximum Forward Voltage | 1.4V | |
| Number of Channels | 1 | |
| Number of Pins | 4 | |
| Package Type | SO | |
| Input Current Type | DC | |
| Typical Rise Time | 2μs | |
| Maximum Input Current | 50mA | |
| Isolation Voltage | 3750Vrms | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Maximum Current Transfer Ratio | 6% | |
| Typical Fall Time | 3μs | |
| Minimum Current Transfer Ratio | 200% | |
| Standards/Approvals | CSA, EN, UL | |
| Series | TLP183 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Toshiba | ||
Mount Type Surface | ||
Product Type Optocoupler | ||
Maximum Forward Voltage 1.4V | ||
Number of Channels 1 | ||
Number of Pins 4 | ||
Package Type SO | ||
Input Current Type DC | ||
Typical Rise Time 2μs | ||
Maximum Input Current 50mA | ||
Isolation Voltage 3750Vrms | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Maximum Current Transfer Ratio 6% | ||
Typical Fall Time 3μs | ||
Minimum Current Transfer Ratio 200% | ||
Standards/Approvals CSA, EN, UL | ||
Series TLP183 | ||
Automotive Standard No | ||
- COO (Country of Origin):
- JP
Photocoupler, Transistor Output, TLP183/TLP185 Series
TLP183 and TLP185 series single photocouplers with transistor output from Toshiba.
