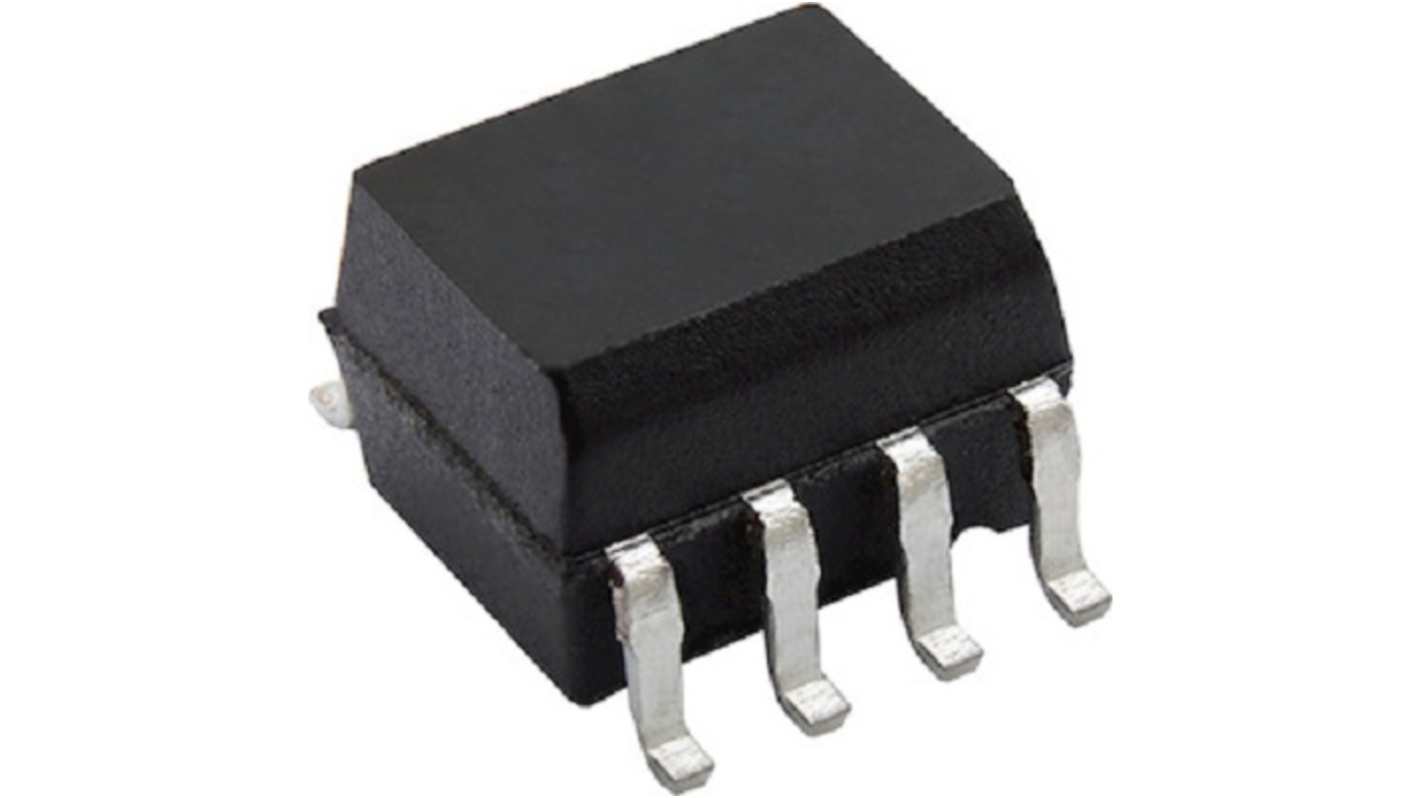

Vishay VOIH72AT AC/DC Input Optocoupler, Surface, 8-Pin SOIC-8
- RS Stock No.:
- 338-590
- Mfr. Part No.:
- VOIH72AT
- Brand:
- Vishay
Subtotal (1 reel of 2000 units)*
£2,230.00
(exc. VAT)
£2,676.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 17 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2000 + | £1.115 | £2,230.00 |
*price indicative
- RS Stock No.:
- 338-590
- Mfr. Part No.:
- VOIH72AT
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Mount Type | Surface | |
| Product Type | Optocoupler | |
| Maximum Forward Voltage | 5.5V | |
| Number of Channels | 1 | |
| Packaging | Tape & Reel | |
| Number of Pins | 8 | |
| Package Type | SOIC-8 | |
| Input Current Type | AC/DC | |
| Typical Rise Time | 3.3ns | |
| Maximum Input Current | 15mA | |
| Isolation Voltage | 3750Vrms | |
| Minimum Operating Temperature | -40°C | |
| Logic Output | Yes | |
| Maximum Operating Temperature | 110°C | |
| Typical Fall Time | 3.1ns | |
| Standards/Approvals | UL 1577, RoHS, IEC 60747-5-5, cUL 1577 | |
| Series | VOIH72A | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Mount Type Surface | ||
Product Type Optocoupler | ||
Maximum Forward Voltage 5.5V | ||
Number of Channels 1 | ||
Packaging Tape & Reel | ||
Number of Pins 8 | ||
Package Type SOIC-8 | ||
Input Current Type AC/DC | ||
Typical Rise Time 3.3ns | ||
Maximum Input Current 15mA | ||
Isolation Voltage 3750Vrms | ||
Minimum Operating Temperature -40°C | ||
Logic Output Yes | ||
Maximum Operating Temperature 110°C | ||
Typical Fall Time 3.1ns | ||
Standards/Approvals UL 1577, RoHS, IEC 60747-5-5, cUL 1577 | ||
Series VOIH72A | ||
Automotive Standard No | ||
- COO (Country of Origin):
- MY
The Vishay High Speed Optocoupler is a single channel 25 MBd high speed optocoupler in CMOS technology. Utilizing an input LED driver with a high speed IRED coupled with an integrated optical detector IC. A true digital input and output interface, in combination with the very low Pulse width distortion of maximum 6 ns and a high noise immunity of minimum 20 kV/μs enable an easy integration into digital logic systems.
CMOS logic digital input and output
High speed data rate of 25 MBd
Wide supply voltage range 2.7 V to 5.5 V
