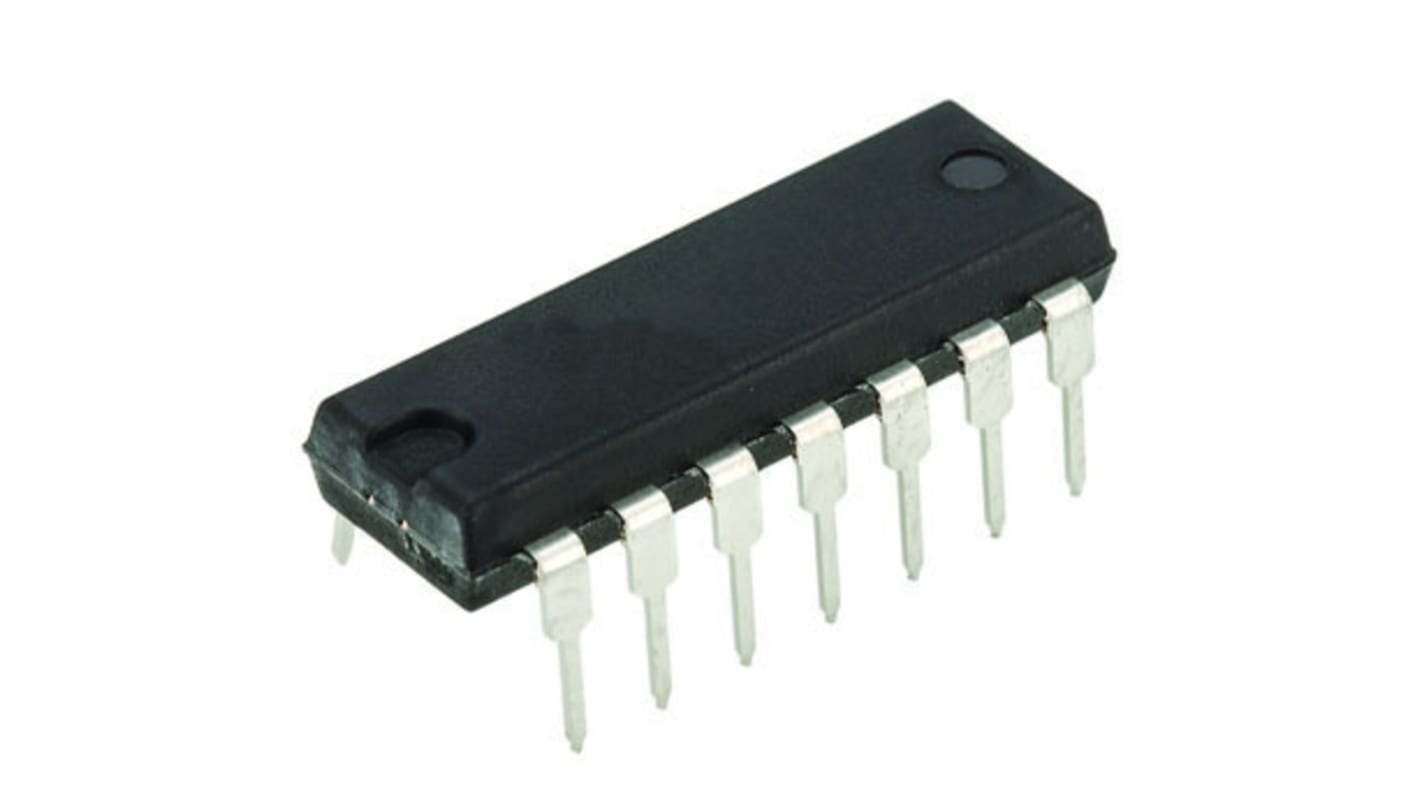

TLC2274CN Texas Instruments, Precision, Op Amp, RRO, 2.2MHz, 5 → 15 V, 14-Pin PDIP

View all Op Amps
Discontinued
Packaging Options:
RS Stock No.:
709-2589
Mfr. Part No.:
TLC2274CN
Brand:
Texas Instruments
Find similar products by selecting one or more attributes.
Select all

Brand

Texas Instruments

Amplifier Type

Precision

Mounting Type

Through Hole

Package Type

PDIP

Power Supply Type

Dual, Single

Number of Channels per Chip

4

Pin Count

14

Typical Single Supply Voltage

5 → 15 V

Typical Gain Bandwidth Product

2.2MHz

Typical Dual Supply Voltage

±3 V, ±5 V

Typical Slew Rate

3.6V/µs

Maximum Operating Temperature

+70 °C

Minimum Operating Temperature

0 °C

Typical Voltage Gain

105 dB

Rail to Rail

Rail to Rail Output

Typical Input Voltage Noise Density

50nV/√Hz

Height

4.57mm

Width

6.35mm

Dimensions

19.3 x 6.35 x 4.57mm

Length

19.3mm

LinCMOS Operational Amplifiers
