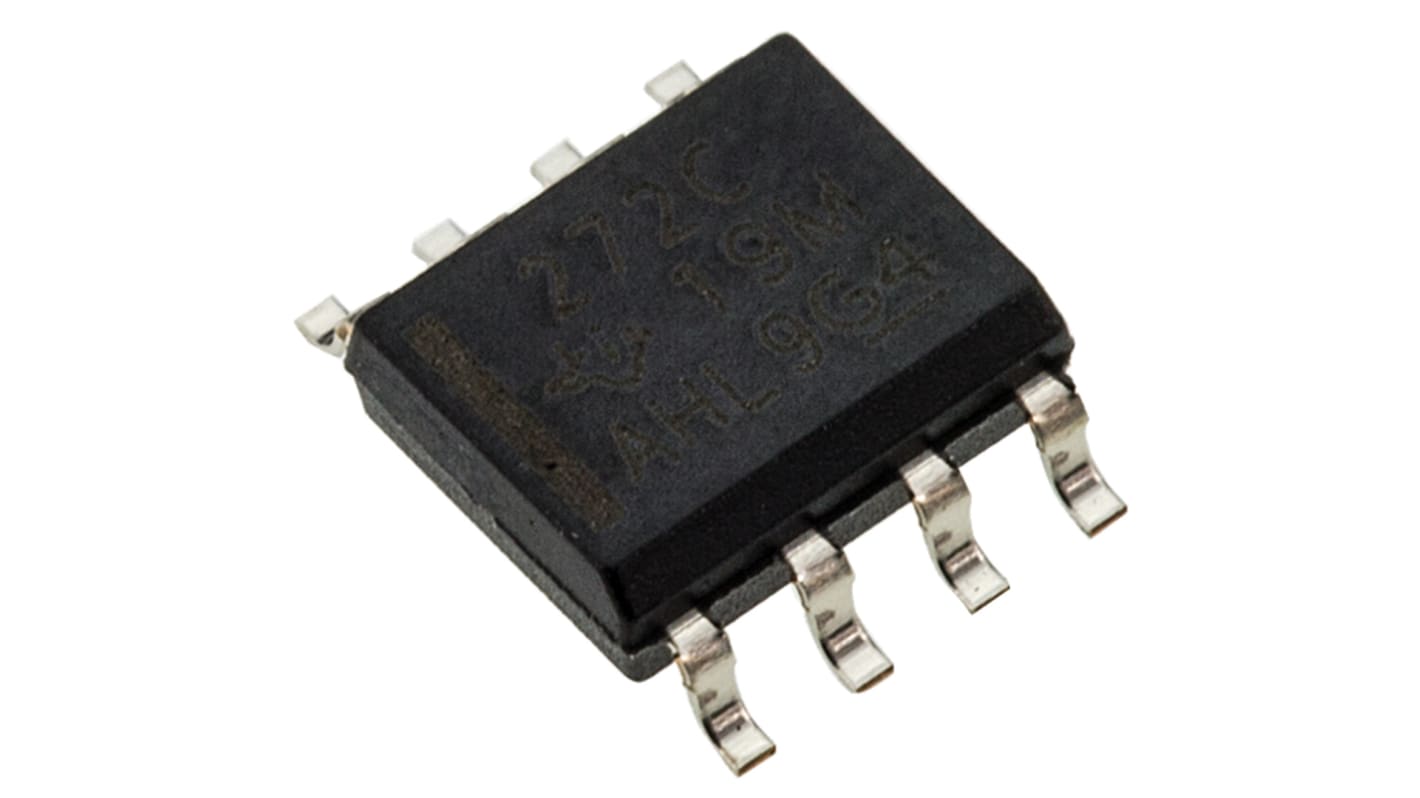

TLC272CDR Texas Instruments, Op Amp, 1.7MHz, 5 → 15 V, 8-Pin SOIC
- RS Stock No.:
- 620-0098
- Mfr. Part No.:
- TLC272CDR
- Brand:
- Texas Instruments
50 In stock - FREE next working day delivery available
Price Each (In a Pack of 25)
£0.989
(exc. VAT)
£1.187
(inc. VAT)
| Units | Per unit | Per Pack* |
| 25 - 100 | £0.989 | £24.725 |
| 125 - 225 | £0.939 | £23.475 |
| 250 - 600 | £0.846 | £21.15 |
| 625 + | £0.84 | £21.00 |
| *price indicative | ||
- RS Stock No.:
- 620-0098
- Mfr. Part No.:
- TLC272CDR
- Brand:
- Texas Instruments
Technical Reference
Legislation and Compliance
Product Details
Precision LinCMOS Operational Amplifiers
Specifications
Attribute | Value |
|---|---|
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Power Supply Type | Single |
| Number of Channels per Chip | 2 |
| Pin Count | 8 |
| Typical Single Supply Voltage | 5 → 15 V |
| Typical Gain Bandwidth Product | 1.7MHz |
| Typical Slew Rate | 3.6V/µs |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +70 °C |
| Typical Voltage Gain | 87.2 dB |
| Rail to Rail | No |
| Height | 1.58mm |
| Dimensions | 4.9 x 3.91 x 1.58mm |
| Width | 3.91mm |
| Typical Input Voltage Noise Density | 25nV/√Hz |
| Length | 4.9mm |
