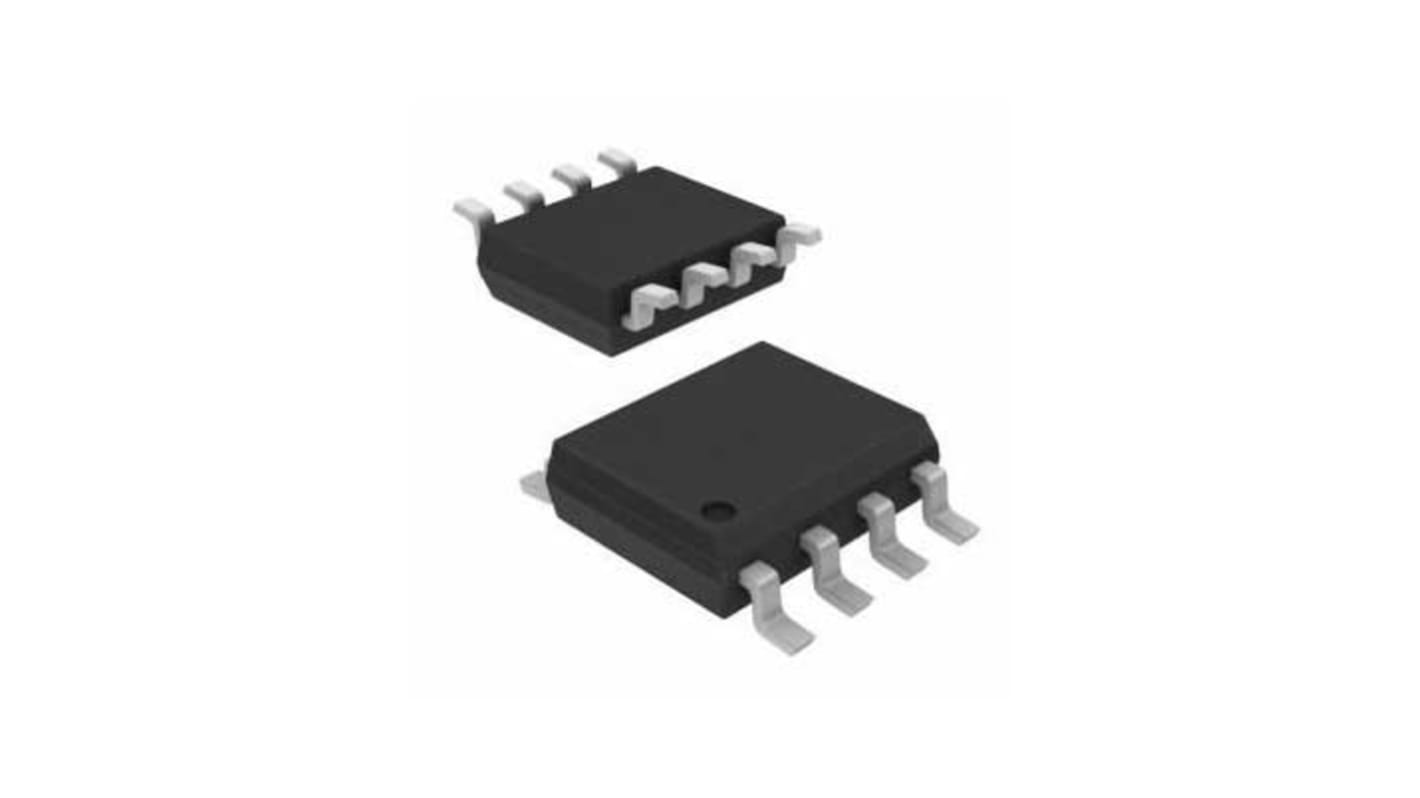

Nisshinbo Micro Devices, Operational Amplifier, 2 MHz, 8-Pin 36V DMP
- RS Stock No.:
- 241-2940
- Mfr. Part No.:
- NJM2742M-TE1
- Brand:
- Nisshinbo Micro Devices
Bulk discount available
Subtotal (1 reel of 2000 units)*
£958.00
(exc. VAT)
£1,150.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 26 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2000 - 2000 | £0.479 | £958.00 |
| 4000 - 4000 | £0.44 | £880.00 |
| 6000 + | £0.437 | £874.00 |
*price indicative
- RS Stock No.:
- 241-2940
- Mfr. Part No.:
- NJM2742M-TE1
- Brand:
- Nisshinbo Micro Devices
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nisshinbo Micro Devices | |
| Product Type | Operational Amplifier | |
| Mount Type | Surface | |
| Package Type | DMP | |
| Number of Channels | 2 | |
| Pin Count | 8 | |
| GBP - Gain Bandwidth Product | 2MHz | |
| Minimum Supply Voltage | 36V | |
| Maximum Supply Voltage | 36V | |
| Vos - Input Offset Voltage | 12 mV | |
| Minimum Operating Temperature | -40°C | |
| Slew Rate | 10V/μs | |
| Input Bias Current | 400 nA | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Series | NJM2742 | |
| Automotive Standard | No | |
| Input Offset Current | 75 nA | |
| Select all | ||
|---|---|---|
Brand Nisshinbo Micro Devices | ||
Product Type Operational Amplifier | ||
Mount Type Surface | ||
Package Type DMP | ||
Number of Channels 2 | ||
Pin Count 8 | ||
GBP - Gain Bandwidth Product 2MHz | ||
Minimum Supply Voltage 36V | ||
Maximum Supply Voltage 36V | ||
Vos - Input Offset Voltage 12 mV | ||
Minimum Operating Temperature -40°C | ||
Slew Rate 10V/μs | ||
Input Bias Current 400 nA | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Series NJM2742 | ||
Automotive Standard No | ||
Input Offset Current 75 nA | ||
The New Japan Radio single supply dual operational amplifier with a wide operation voltage range from 3 to 32 V is well suited for power supply units, motor driving units and others.
Bipolar technology
Operating temperature range - 40 to + 85 ˚C
