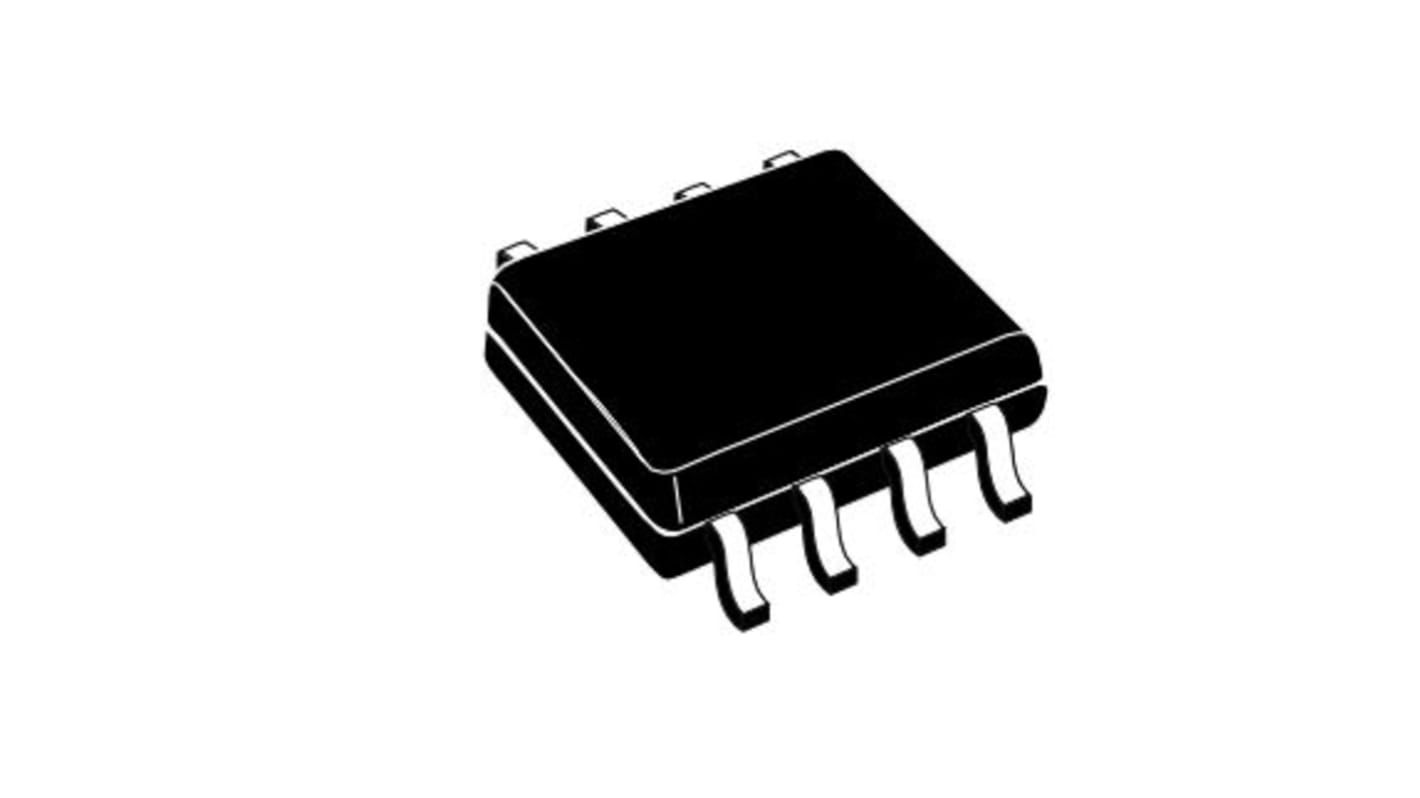

TSB612IYDT STMicroelectronics, Operational Amplifier, 560 MHz, 8-Pin 36V SO-8
- RS Stock No.:
- 240-7322
- Mfr. Part No.:
- TSB612IYDT
- Brand:
- STMicroelectronics
Get a bulk buy discount
Add 20 more to save 2%
View bulk pricing optionsSubtotal (1 pack of 2 units)*
£2.99
(exc. VAT)
£3.59
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 2,430 unit(s) shipping from 23 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* | Saving |
|---|---|---|---|
| 2 - 18 | £1.495 | £2.99 | - |
| 20 - 48 | £1.46 | £2.92 | 2% |
| 50 - 198 | £1.425 | £2.85 | 4% |
| 200 + | £1.36 | £2.72 | 9% |
*price indicative
- RS Stock No.:
- 240-7322
- Mfr. Part No.:
- TSB612IYDT
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | Operational Amplifier | |
| Mount Type | Surface | |
| Package Type | SO-8 | |
| Number of Channels | 2 | |
| Pin Count | 8 | |
| GBP - Gain Bandwidth Product | 560MHz | |
| Minimum Supply Voltage | 2.7V | |
| Maximum Supply Voltage | 36V | |
| Minimum Operating Temperature | -40°C | |
| Slew Rate | 0.2V/μs | |
| Input Bias Current | 15 nA | |
| Vos - Input Offset Voltage | 1 mV | |
| Maximum Operating Temperature | 125°C | |
| Length | 5mm | |
| Height | 1.75mm | |
| Standards/Approvals | RoHS | |
| Series | TSB612 | |
| Width | 4mm | |
| Automotive Standard | AEC-Q100, AEC-Q3 | |
| Input Offset Current | 10 nA | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type Operational Amplifier | ||
Mount Type Surface | ||
Package Type SO-8 | ||
Number of Channels 2 | ||
Pin Count 8 | ||
GBP - Gain Bandwidth Product 560MHz | ||
Minimum Supply Voltage 2.7V | ||
Maximum Supply Voltage 36V | ||
Minimum Operating Temperature -40°C | ||
Slew Rate 0.2V/μs | ||
Input Bias Current 15 nA | ||
Vos - Input Offset Voltage 1 mV | ||
Maximum Operating Temperature 125°C | ||
Length 5mm | ||
Height 1.75mm | ||
Standards/Approvals RoHS | ||
Series TSB612 | ||
Width 4mm | ||
Automotive Standard AEC-Q100, AEC-Q3 | ||
Input Offset Current 10 nA | ||
The STMicroelectronics operational amplifiers (op amps) offer an extended supply voltage operating range and rail-to-rail output. They also offer an excellent speed/ power consumption ratio with 560 kHz gain bandwidth product while consuming less than 125 μA per amplifier at 36 V supply voltage, Thanks to their small package size, the TSB611, TSB612 can be used in applications where space on the board is limited and can thus reduce the overall cost of the PCB.
Low offset voltage
Low current consumption
Wide supply voltage
Gain bandwidth product
Unity gain stable
Rail-to-rail output
