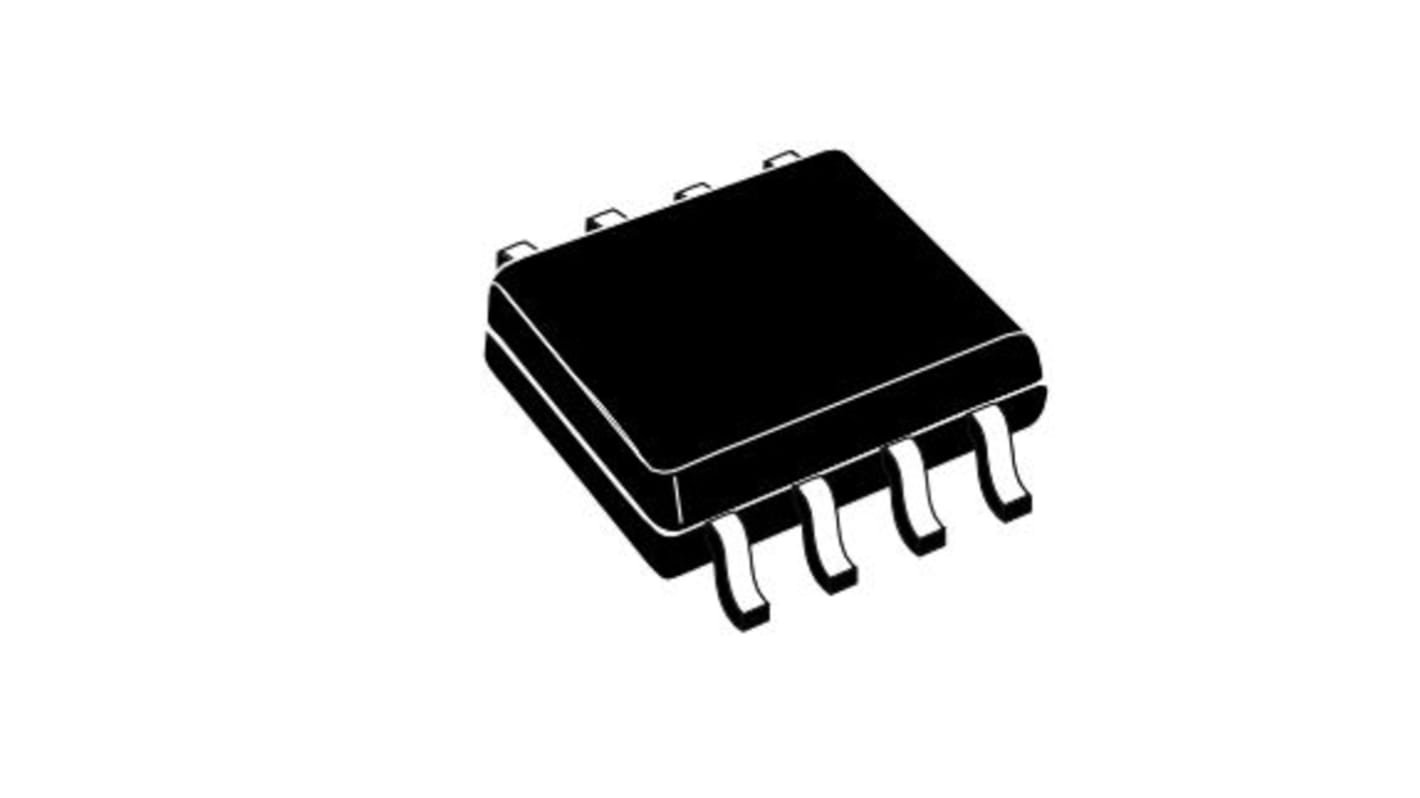

STMicroelectronics, Operational Amplifier, 560 MHz, 8-Pin 36V SO-8
- RS Stock No.:
- 240-7321
- Mfr. Part No.:
- TSB612IYDT
- Brand:
- STMicroelectronics
Subtotal (1 reel of 2500 units)*
£3,612.50
(exc. VAT)
£4,335.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 + | £1.445 | £3,612.50 |
*price indicative
- RS Stock No.:
- 240-7321
- Mfr. Part No.:
- TSB612IYDT
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | Operational Amplifier | |
| Mount Type | Surface | |
| Package Type | SO-8 | |
| Number of Channels | 2 | |
| Pin Count | 8 | |
| GBP - Gain Bandwidth Product | 560MHz | |
| Maximum Supply Voltage | 36V | |
| Minimum Supply Voltage | 2.7V | |
| Minimum Operating Temperature | -40°C | |
| Vos - Input Offset Voltage | 1 mV | |
| Slew Rate | 0.2V/μs | |
| Input Bias Current | 15 nA | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS | |
| Series | TSB612 | |
| Length | 5mm | |
| Height | 1.75mm | |
| Automotive Standard | AEC-Q100, AEC-Q3 | |
| Input Offset Current | 10 nA | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type Operational Amplifier | ||
Mount Type Surface | ||
Package Type SO-8 | ||
Number of Channels 2 | ||
Pin Count 8 | ||
GBP - Gain Bandwidth Product 560MHz | ||
Maximum Supply Voltage 36V | ||
Minimum Supply Voltage 2.7V | ||
Minimum Operating Temperature -40°C | ||
Vos - Input Offset Voltage 1 mV | ||
Slew Rate 0.2V/μs | ||
Input Bias Current 15 nA | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS | ||
Series TSB612 | ||
Length 5mm | ||
Height 1.75mm | ||
Automotive Standard AEC-Q100, AEC-Q3 | ||
Input Offset Current 10 nA | ||
The STMicroelectronics operational amplifiers (op amps) offer an extended supply voltage operating range and rail-to-rail output. They also offer an excellent speed/ power consumption ratio with 560 kHz gain bandwidth product while consuming less than 125 μA per amplifier at 36 V supply voltage, Thanks to their small package size, the TSB611, TSB612 can be used in applications where space on the board is limited and can thus reduce the overall cost of the PCB.
Low offset voltage
Low current consumption
Wide supply voltage
Gain bandwidth product
Unity gain stable
Rail-to-rail output
