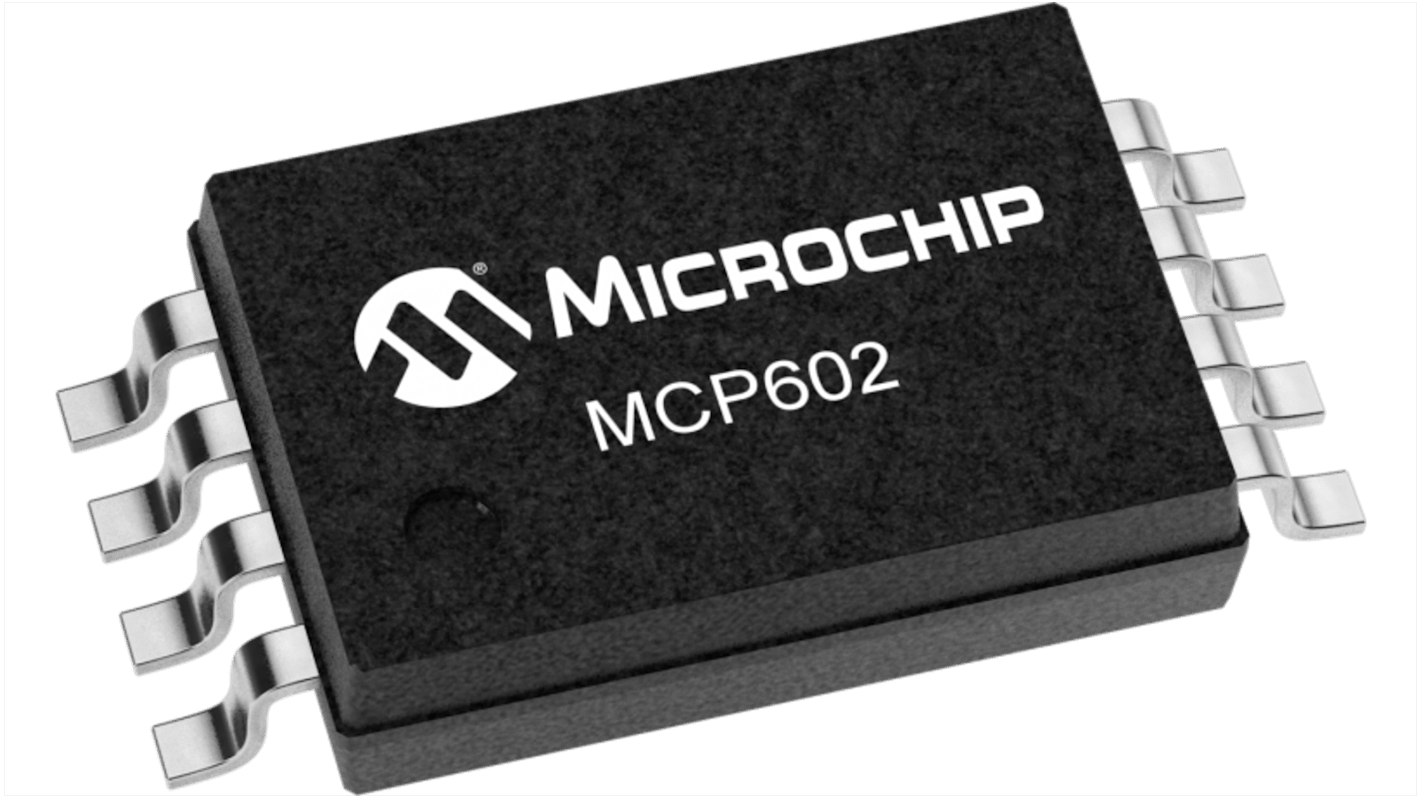

Microchip, Operational Amplifier, 2.8 MHz, 8-Pin 6V SOIC
- RS Stock No.:
- 239-5591
- Mfr. Part No.:
- MCP602T-I/ST
- Brand:
- Microchip
Subtotal (1 tray of 2500 units)*
£867.50
(exc. VAT)
£1,040.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 31 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 2500 + | £0.347 | £867.50 |
*price indicative
- RS Stock No.:
- 239-5591
- Mfr. Part No.:
- MCP602T-I/ST
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Product Type | Operational Amplifier | |
| Mount Type | Surface | |
| Package Type | SOIC | |
| Pin Count | 8 | |
| GBP - Gain Bandwidth Product | 2.8MHz | |
| Minimum Supply Voltage | 2.7V | |
| Maximum Supply Voltage | 6V | |
| Slew Rate | 2.3V/μs | |
| Minimum Operating Temperature | -40°C | |
| Input Bias Current | 1 pA | |
| Maximum Operating Temperature | 85°C | |
| Height | 1.75mm | |
| Series | MCP602 | |
| Standards/Approvals | RoHS | |
| Length | 4.9mm | |
| Automotive Standard | No | |
| Output Current | 30mA | |
| Input Offset Current | ±1 pA | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Product Type Operational Amplifier | ||
Mount Type Surface | ||
Package Type SOIC | ||
Pin Count 8 | ||
GBP - Gain Bandwidth Product 2.8MHz | ||
Minimum Supply Voltage 2.7V | ||
Maximum Supply Voltage 6V | ||
Slew Rate 2.3V/μs | ||
Minimum Operating Temperature -40°C | ||
Input Bias Current 1 pA | ||
Maximum Operating Temperature 85°C | ||
Height 1.75mm | ||
Series MCP602 | ||
Standards/Approvals RoHS | ||
Length 4.9mm | ||
Automotive Standard No | ||
Output Current 30mA | ||
Input Offset Current ±1 pA | ||
The Microchip MCP602 series of low-power operational amplifiers are offered in dual configurations. This op amps utilizes an advanced CMOS technology that provides low bias current, high-speed operation, high open-loop gain, and rail-to-rail output swing. These devices are appropriate for low power, battery operated circuits due to the low quiescent current, for A/D convert driver amplifiers because of their wide bandwidth or for anti-aliasing filters by virtue of their low input bias current. This device is available in the industrial and extended temperature ranges.
Single supply of 2.7 V to 6.0 V
Rail to Rail output
Input Range includes ground
Typical GBP is 2.8 MHz
Industrial temperature range from -40°C to +85°C
Extended temperature range from -40°C to +125°C
