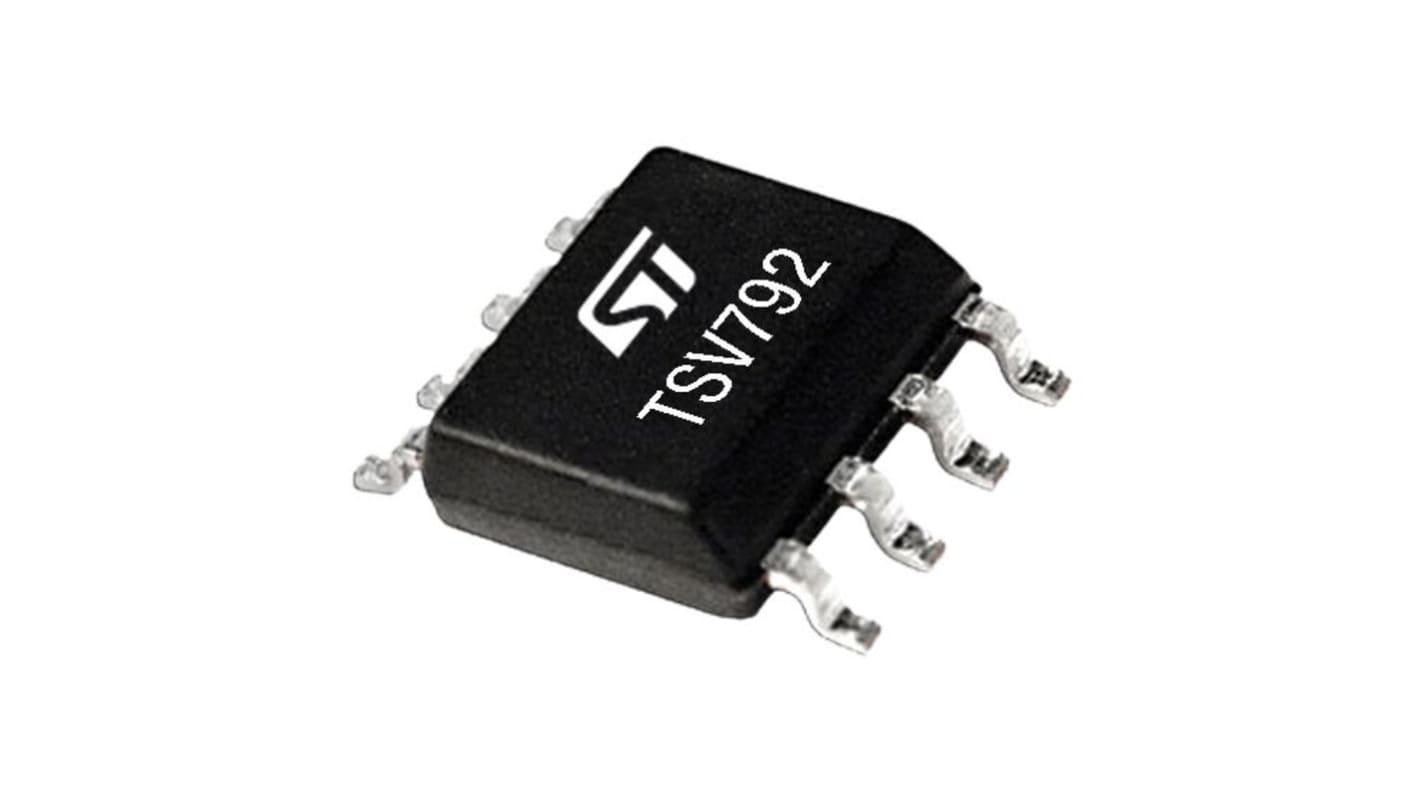

STMicroelectronics, Operational Amplifier, 50 MHz, 8-Pin 5.5V SO
- RS Stock No.:
- 231-8096
- Mfr. Part No.:
- TSV792IDT
- Brand:
- STMicroelectronics
Subtotal (1 reel of 2500 units)*
£2,695.00
(exc. VAT)
£3,235.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 04 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 + | £1.078 | £2,695.00 |
*price indicative
- RS Stock No.:
- 231-8096
- Mfr. Part No.:
- TSV792IDT
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | Operational Amplifier | |
| Mount Type | Surface | |
| Package Type | SO | |
| Number of Channels | 2 | |
| Pin Count | 8 | |
| GBP - Gain Bandwidth Product | 50MHz | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Supply Voltage | 6V | |
| Minimum Operating Temperature | -40°C | |
| Slew Rate | 30V/μs | |
| Vos - Input Offset Voltage | 700 μV | |
| Input Bias Current | 20 pA | |
| Maximum Operating Temperature | 125°C | |
| Length | 5mm | |
| Standards/Approvals | RoHS | |
| Series | TSV792 | |
| Height | 1.75mm | |
| Output Current | 40mA | |
| Automotive Standard | AEC-Q100 | |
| Input Offset Current | 75 pA | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type Operational Amplifier | ||
Mount Type Surface | ||
Package Type SO | ||
Number of Channels 2 | ||
Pin Count 8 | ||
GBP - Gain Bandwidth Product 50MHz | ||
Maximum Supply Voltage 5.5V | ||
Minimum Supply Voltage 6V | ||
Minimum Operating Temperature -40°C | ||
Slew Rate 30V/μs | ||
Vos - Input Offset Voltage 700 μV | ||
Input Bias Current 20 pA | ||
Maximum Operating Temperature 125°C | ||
Length 5mm | ||
Standards/Approvals RoHS | ||
Series TSV792 | ||
Height 1.75mm | ||
Output Current 40mA | ||
Automotive Standard AEC-Q100 | ||
Input Offset Current 75 pA | ||
The STMicroelectronics unity gain stable amplifiers has 50 MHz bandwidth. It has rail-to-rail input stage and the slew rate of 30 V/μs which make ideal for low side current measurement. The excellent accuracy provided by maximum input voltage of 200 μV allows amplifying accurately small amplitude input signal.
Two channel
SO8 package
Rail-to-rail input and output
Extended temperature range up to 40 °C to +125 °C
