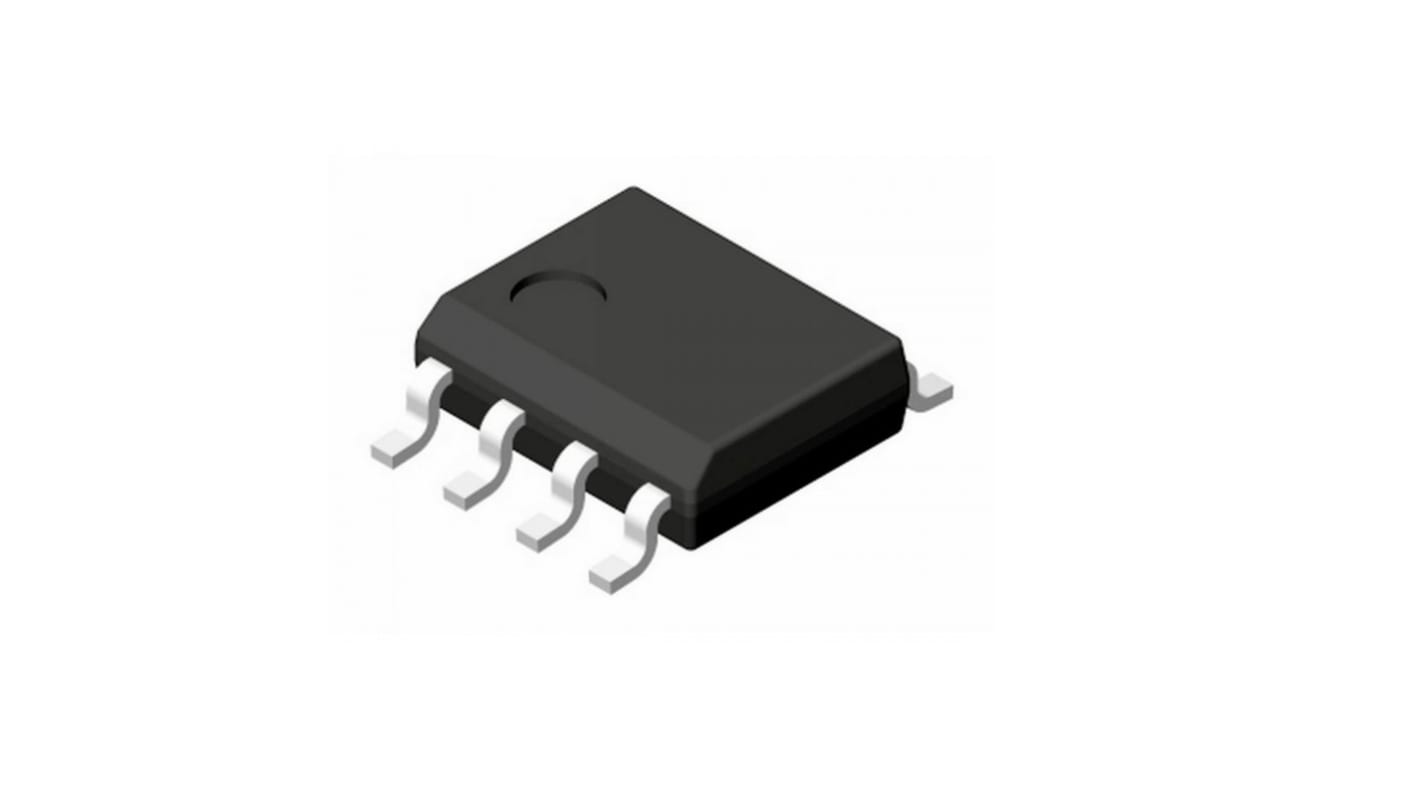

AS2333S-13 DiodesZetex, Operational Amplifier, 350 kHz, 8-Pin 5.5V SO
- RS Stock No.:
- 213-9140
- Mfr. Part No.:
- AS2333S-13
- Brand:
- DiodesZetex
Bulk discount available
Subtotal (1 pack of 10 units)*
£7.69
(exc. VAT)
£9.23
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 12,050 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £0.769 | £7.69 |
| 50 - 90 | £0.748 | £7.48 |
| 100 - 240 | £0.728 | £7.28 |
| 250 - 990 | £0.71 | £7.10 |
| 1000 + | £0.692 | £6.92 |
*price indicative
- RS Stock No.:
- 213-9140
- Mfr. Part No.:
- AS2333S-13
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Product Type | Operational Amplifier | |
| Mount Type | Surface | |
| Package Type | SO | |
| Number of Channels | 2 | |
| Pin Count | 8 | |
| GBP - Gain Bandwidth Product | 350kHz | |
| Minimum Supply Voltage | 1.8V | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -60°C | |
| Input Bias Current | 200 pA | |
| Vos - Input Offset Voltage | 22 μV | |
| Slew Rate | 0.12V/μs | |
| Maximum Operating Temperature | 150°C | |
| Height | 1.5mm | |
| Length | 4.95mm | |
| Series | AS2333 | |
| Standards/Approvals | No | |
| Automotive Standard | AEC-Q100 | |
| Input Offset Current | 400 pA | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Product Type Operational Amplifier | ||
Mount Type Surface | ||
Package Type SO | ||
Number of Channels 2 | ||
Pin Count 8 | ||
GBP - Gain Bandwidth Product 350kHz | ||
Minimum Supply Voltage 1.8V | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -60°C | ||
Input Bias Current 200 pA | ||
Vos - Input Offset Voltage 22 μV | ||
Slew Rate 0.12V/μs | ||
Maximum Operating Temperature 150°C | ||
Height 1.5mm | ||
Length 4.95mm | ||
Series AS2333 | ||
Standards/Approvals No | ||
Automotive Standard AEC-Q100 | ||
Input Offset Current 400 pA | ||
The DiodesZetex AS2333 series is dual CMOS operational amplifiers designed with chopping stabilization technique.
Ultra-low input offset voltage
Zero-drift over time
