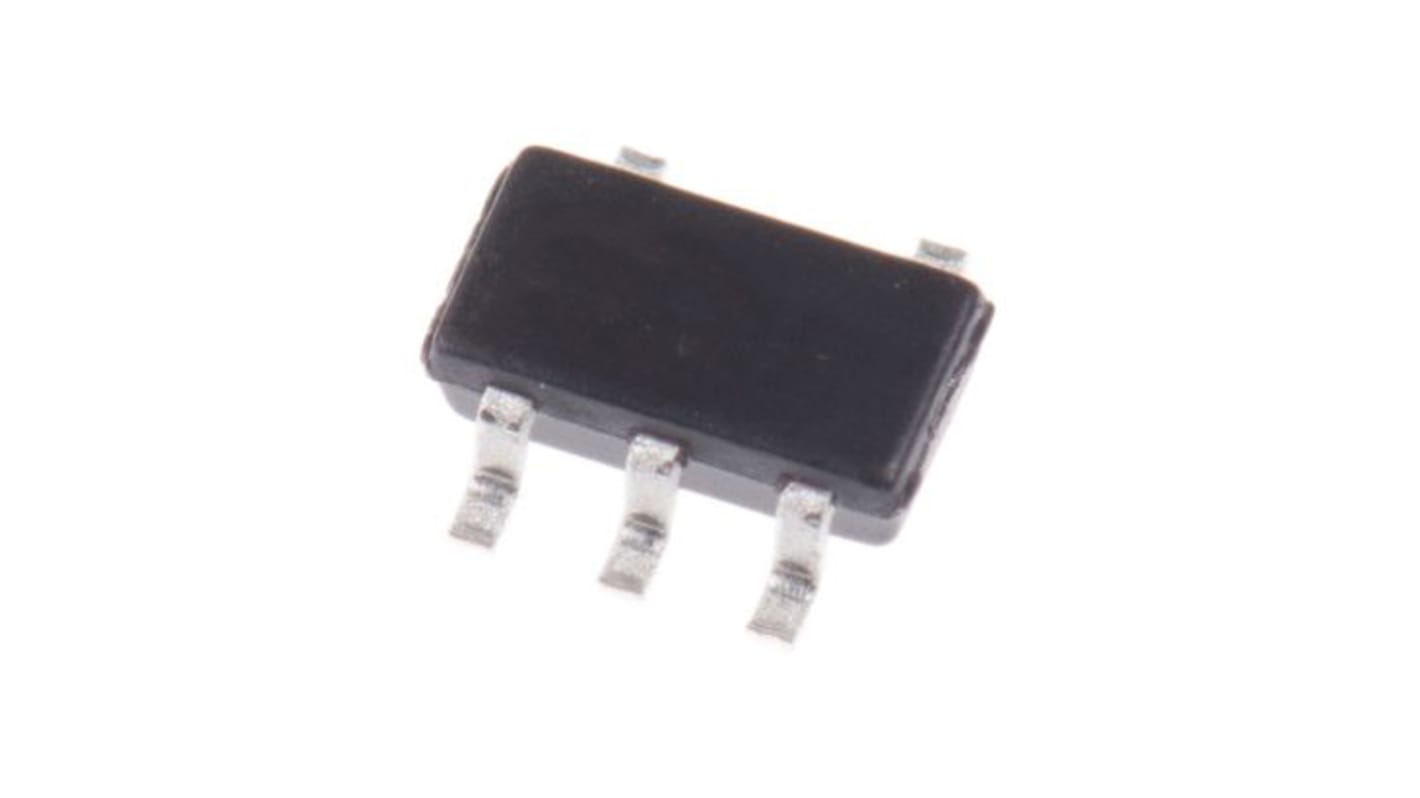

NCV321SN3T1G onsemi, Operational Amplifier, Op Amp, 1MHz, 5 V, 5-Pin TSOP

View all Op Amps

Subtotal (1 reel of 3000 units)*

£702.00

(exc. VAT)

£843.00

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 6,000 unit(s), ready to ship
Units
Per unit
Per Reel*
3000 +£0.234£702.00

*price indicative

RS Stock No.:
195-2618
Mfr. Part No.:
NCV321SN3T1G
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Amplifier Type

Operational Amplifier

Mounting Type

Surface Mount

Package Type

TSOP

Power Supply Type

Single

Number of Channels per Chip

1

Pin Count

5

Typical Single Supply Voltage

5 V

Typical Gain Bandwidth Product

1MHz

Output Type

Rail to Rail, Swing

Typical Slew Rate

1.6V/µs

Maximum Operating Temperature

+125 °C

Minimum Operating Temperature

-40 °C

Typical Voltage Gain

100 V/mV

Offset Voltage

9mV

Maximum Input Voltage

1.9 V

Automotive Standard

AEC-Q100

Dimensions

3.15 x 1.65 x 1mm

Input Voltage Range

-0.2 → 1.9 V

Width

1.65mm

Height

1mm

Length

3.15mm

Minimum Input Voltage

-0.2 V

The LMV321/NCV321, LMV358, and LMV324 are single, dual, and quad low voltage op-amps with rail-to-rail output swing. These amplifiers are a cost-effective solution for applications where low power consumption and space saving packages are critical. Specification tables are provided for operation from power supply voltages at 2.7 V and 5 V. Rail-to-Rail operation allows for optimal signal-to-noise applications. Ultra low quiescent current makes this series of amplifiers ideal for portable, battery operated equipment. The common mode input range includes ground making the device useful for low-side current-shunt measurements. The ultra small packages allow for placement on the PCB in close proximity to the signal source thereby reducing noise pickup.
