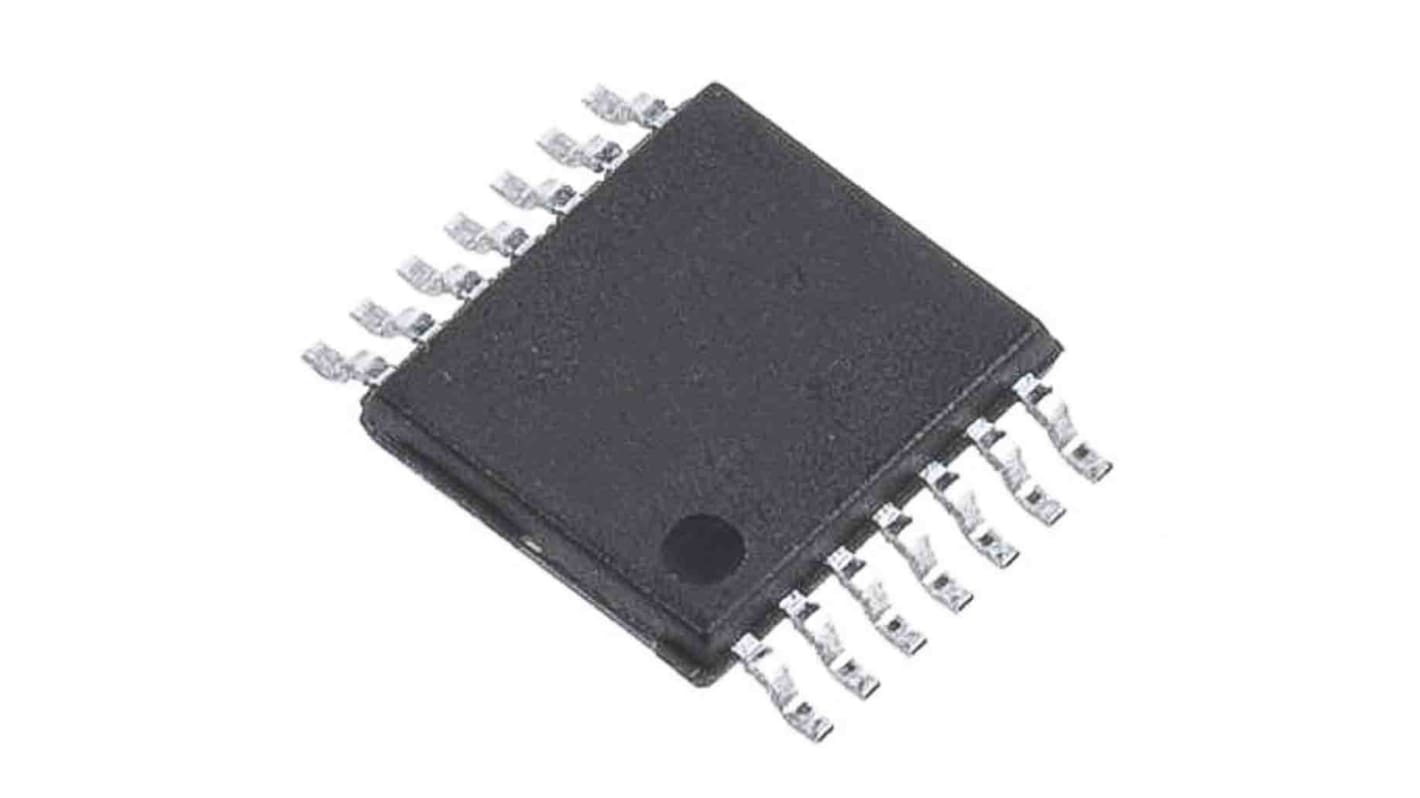

TSU114IPT STMicroelectronics, Operational Amplifier, Op Amps, 11.5kHz 10 Hz, 1.5 → 5.5 V, 14-Pin TSSOP

RS Stock No.:: 192-4668
Mfr. Part No.:: TSU114IPT
Brand:: STMicroelectronics

TSU114IPT STMicroelectronics, Operational Amplifier, Op Amps, 11.5kHz 10 Hz, 1.5 → 5.5 V, 14-Pin TSSOP

Available to back order for despatch 17/07/2025

Price Each (On a Reel of 2500)

£1.587

(exc. VAT)

£1.904

(inc. VAT)

Units	Per unit	Per Reel*
2500 +	£1.587	£3,967.50

*price indicative

RS Stock No.:: 192-4668
Mfr. Part No.:: TSU114IPT
Brand:: STMicroelectronics

Datasheet TSU114IPT
Datasheet - TSU114IPT

Attribute	Value
Amplifier Type	Operational Amplifier
Mounting Type	Surface Mount
Package Type	TSSOP
Power Supply Type	Single
Number of Channels per Chip	4
Pin Count	14
Typical Single Supply Voltage	1.5 → 5.5 V
Typical Gain Bandwidth Product	11.5kHz
Output Type	Rail to Rail
Typical Slew Rate	2.7V/ms
Maximum Operating Frequency	10 Hz
Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	+85 °C
Typical Voltage Gain	135 dB
Offset Voltage	235µV
Output Current	45 mA
Maximum Input Voltage	5.5 V
Typical Input Voltage Noise Density	220nV/√Hz
Input Offset Current	50pA
Input Voltage Range	1.5 → 5.5 V
Width	4.5mm
Height	1.05mm
Length	5.1mm
Minimum Input Voltage	1.5 V
Dimensions	5.1 x 4.5 x 1.05mm

TSU114IPT STMicroelectronics, Operational Amplifier, Op Amps, 11.5kHz 10 Hz, 1.5 → 5.5 V, 14-Pin TSSOP
