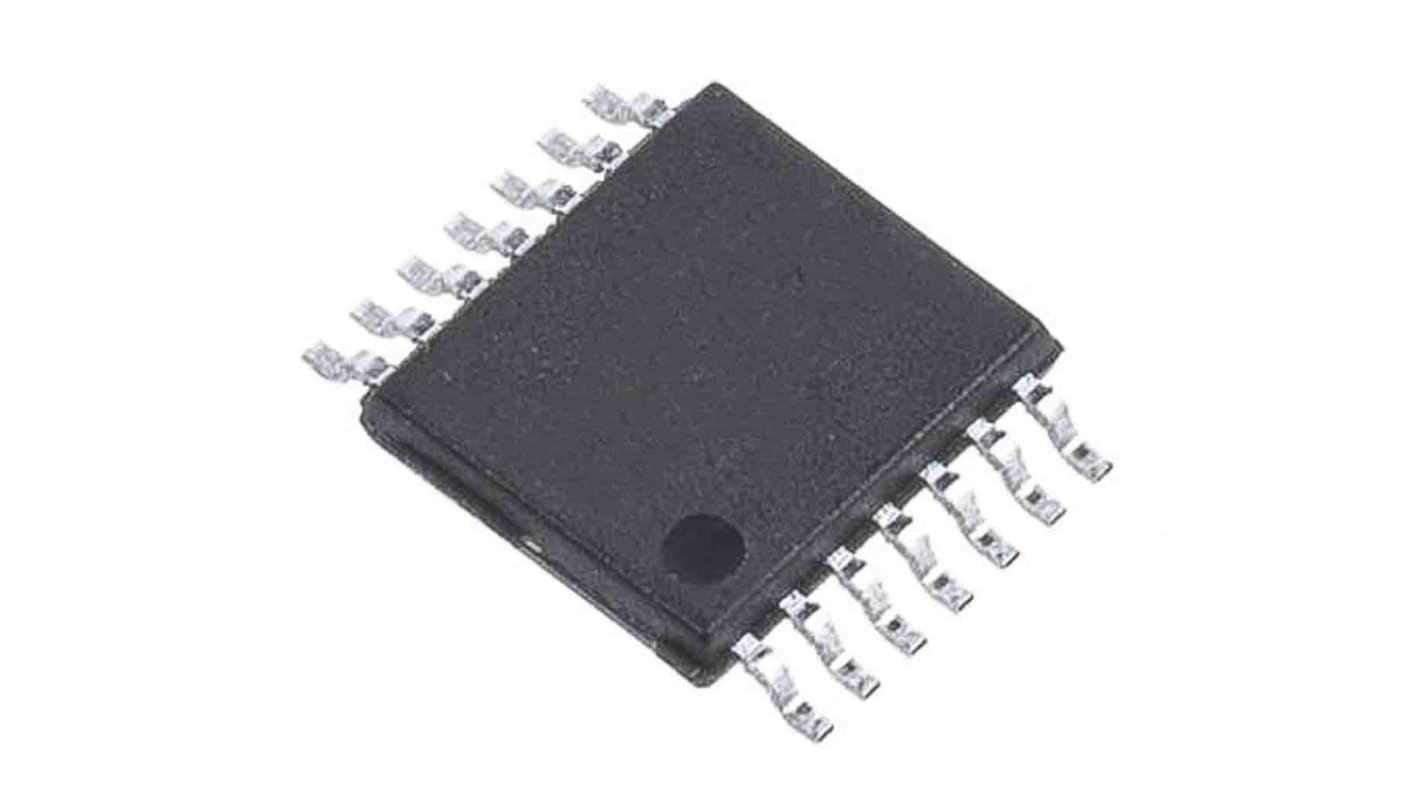

TSV994AIYPT STMicroelectronics, Operational Amplifier, Op Amp, RRIO, 20MHz 100 kHz, 2.5 → 5.5 V, 14-Pin TSSOP

View all Op Amps

Subtotal (1 reel of 2500 units)*

£3,580.00

(exc. VAT)

£4,295.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 06 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
2500 +£1.432£3,580.00

*price indicative

RS Stock No.:
189-1907
Mfr. Part No.:
TSV994AIYPT
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Amplifier Type

Operational Amplifier

Mounting Type

Surface Mount

Package Type

TSSOP

Power Supply Type

Single

Number of Channels per Chip

4

Pin Count

14

Typical Single Supply Voltage

2.5 → 5.5 V

Typical Gain Bandwidth Product

20MHz

Output Type

Rail to Rail

Typical Slew Rate

10V/µs

Maximum Operating Frequency

100 kHz

Maximum Operating Temperature

+125 °C

Minimum Operating Temperature

-40 °C

Offset Voltage

7.5mV

Output Current

35 mA

Maximum Input Voltage

5.5 V

Typical Voltage Gain

91 dB

Automotive Standard

AEC-Q100

Rail to Rail

Rail to Rail Input/Output

Length

5.1mm

Minimum Input Voltage

2.5 V

Dimensions

5.1 x 4.5 x 1.05mm

Typical Input Voltage Noise Density

21nV/√Hz

Input Offset Current

100pA

Input Voltage Range

2.5 → 5.5 V

Height

1.05mm

Width

4.5mm

The TSV99x and TSV99xA family of single, dual, and quad operational amplifiers offers low voltage operation and rail-to-rail input and output. These devices feature an excellent speed/power consumption ratio, offering a 20 MHz gain-bandwidth, stable for gains above 4 (100 pF capacitive load), while consuming only 1.1 mA maximum at 5 V. They also feature an ultra-low input bias current. These characteristics make the TSV99x family ideal for sensor interfaces, battery-supplied and portable applications, as well as active filtering. These characteristics make the TSV99x, TSV99xA family ideal for sensor interfaces, battery-supplied and portable applications, as well as active filtering.

Low input offset voltage: 1.5 mV max. (A grade)
Rail-to-rail input and output
Wide bandwidth 20 MHz
Stable for gain ≥ 4 or ≤ -3
Low power consumption: 820 μA typ.
High output current: 35 mA
Operating from 2.5 V to 5.5 V
Low input bias current, 1 pA typ.
ESD internal protection ≥ 5 kV
