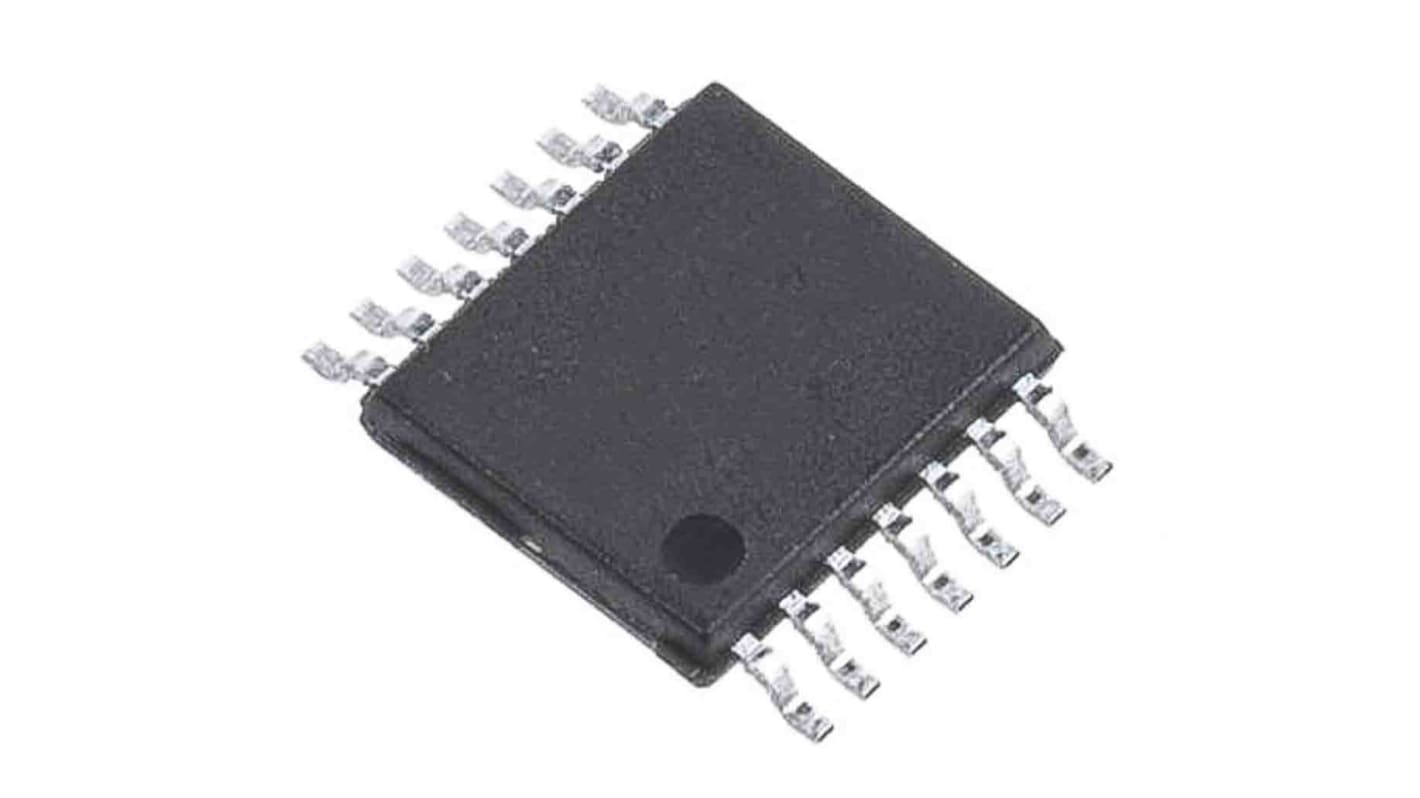

TSV994AIYPT STMicroelectronics, Operational Amplifier, 20 MHz, 14-Pin 5.5V TSSOP
- RS Stock No.:
- 189-1994
- Mfr. Part No.:
- TSV994AIYPT
- Brand:
- STMicroelectronics
Subtotal (1 pack of 10 units)*
£8.72
(exc. VAT)
£10.46
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1,850 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £0.872 | £8.72 |
*price indicative
- RS Stock No.:
- 189-1994
- Mfr. Part No.:
- TSV994AIYPT
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | Operational Amplifier | |
| Mount Type | Surface | |
| Package Type | TSSOP | |
| Number of Channels | 4 | |
| Pin Count | 14 | |
| GBP - Gain Bandwidth Product | 20MHz | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Supply Voltage | 2.5V | |
| Minimum Operating Temperature | -40°C | |
| Vos - Input Offset Voltage | 7.5 mV | |
| Slew Rate | 10V/μs | |
| Input Bias Current | 100 pA | |
| Maximum Operating Temperature | 125°C | |
| Height | 1.05mm | |
| Length | 5.1mm | |
| Series | TSV994A | |
| Standards/Approvals | RoHS | |
| Output Current | 35mA | |
| Automotive Standard | AEC-Q100 | |
| Input Offset Current | 100 pA | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type Operational Amplifier | ||
Mount Type Surface | ||
Package Type TSSOP | ||
Number of Channels 4 | ||
Pin Count 14 | ||
GBP - Gain Bandwidth Product 20MHz | ||
Maximum Supply Voltage 5.5V | ||
Minimum Supply Voltage 2.5V | ||
Minimum Operating Temperature -40°C | ||
Vos - Input Offset Voltage 7.5 mV | ||
Slew Rate 10V/μs | ||
Input Bias Current 100 pA | ||
Maximum Operating Temperature 125°C | ||
Height 1.05mm | ||
Length 5.1mm | ||
Series TSV994A | ||
Standards/Approvals RoHS | ||
Output Current 35mA | ||
Automotive Standard AEC-Q100 | ||
Input Offset Current 100 pA | ||
The TSV99x and TSV99xA family of single, dual, and quad operational amplifiers offers low voltage operation and rail-to-rail input and output. These devices feature an excellent speed/power consumption ratio, offering a 20 MHz gain-bandwidth, stable for gains above 4 (100 pF capacitive load), while consuming only 1.1 mA maximum at 5 V. They also feature an ultra-low input bias current. These characteristics make the TSV99x family ideal for sensor interfaces, battery-supplied and portable applications, as well as active filtering. These characteristics make the TSV99x, TSV99xA family ideal for sensor interfaces, battery-supplied and portable applications, as well as active filtering.
Low input offset voltage: 1.5 mV max. (A grade)
Rail-to-rail input and output
Wide bandwidth 20 MHz
Stable for gain ≥ 4 or ≤ -3
Low power consumption: 820 μA typ.
High output current: 35 mA
Operating from 2.5 V to 5.5 V
Low input bias current, 1 pA typ.
ESD internal protection ≥ 5 kV
