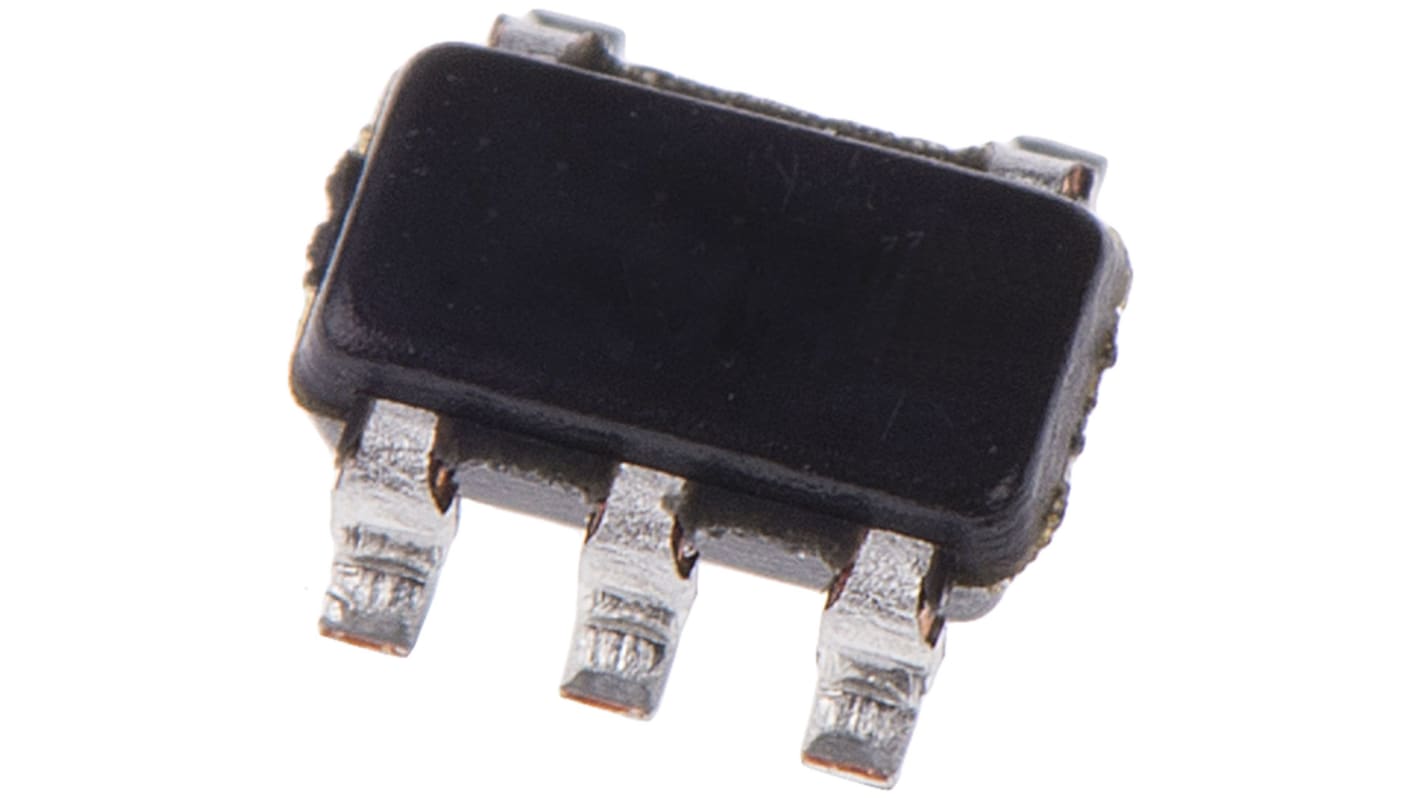

TSX9291ILT STMicroelectronics, High Speed, Op Amp, RRIO, 16MHz 100 kHz, 4 → 16 V, 5-Pin SOT-23
- RS Stock No.:
- 165-5651
- Mfr. Part No.:
- TSX9291ILT
- Brand:
- STMicroelectronics
Subtotal (1 reel of 3000 units)*
£2,334.00
(exc. VAT)
£2,802.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.778 | £2,334.00 |
*price indicative
- RS Stock No.:
- 165-5651
- Mfr. Part No.:
- TSX9291ILT
- Brand:
- STMicroelectronics
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Amplifier Type | High Speed | |
| Mounting Type | Surface Mount | |
| Package Type | SOT-23 | |
| Power Supply Type | Single | |
| Number of Channels per Chip | 1 | |
| Pin Count | 5 | |
| Typical Single Supply Voltage | 4 → 16 V | |
| Typical Gain Bandwidth Product | 16MHz | |
| Typical Slew Rate | 29 V/μs, 30 V/μs | |
| Maximum Operating Frequency | 100 kHz | |
| Maximum Operating Temperature | +125 °C | |
| Minimum Operating Temperature | -40 °C | |
| Rail to Rail | Rail to Rail Input/Output | |
| Typical Voltage Gain | 117 dB | |
| Typical Input Voltage Noise Density | 17.9nV/√Hz | |
| Width | 1.75mm | |
| Dimensions | 3 x 1.75 x 1.3mm | |
| Height | 1.3mm | |
| Length | 3mm | |
Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Amplifier Type High Speed | ||
Mounting Type Surface Mount | ||
Package Type SOT-23 | ||
Power Supply Type Single | ||
Number of Channels per Chip 1 | ||
Pin Count 5 | ||
Typical Single Supply Voltage 4 → 16 V | ||
Typical Gain Bandwidth Product 16MHz | ||
Typical Slew Rate 29 V/μs, 30 V/μs | ||
Maximum Operating Frequency 100 kHz | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Temperature -40 °C | ||
Rail to Rail Rail to Rail Input/Output | ||
Typical Voltage Gain 117 dB | ||
Typical Input Voltage Noise Density 17.9nV/√Hz | ||
Width 1.75mm | ||
Dimensions 3 x 1.75 x 1.3mm | ||
Height 1.3mm | ||
Length 3mm | ||
