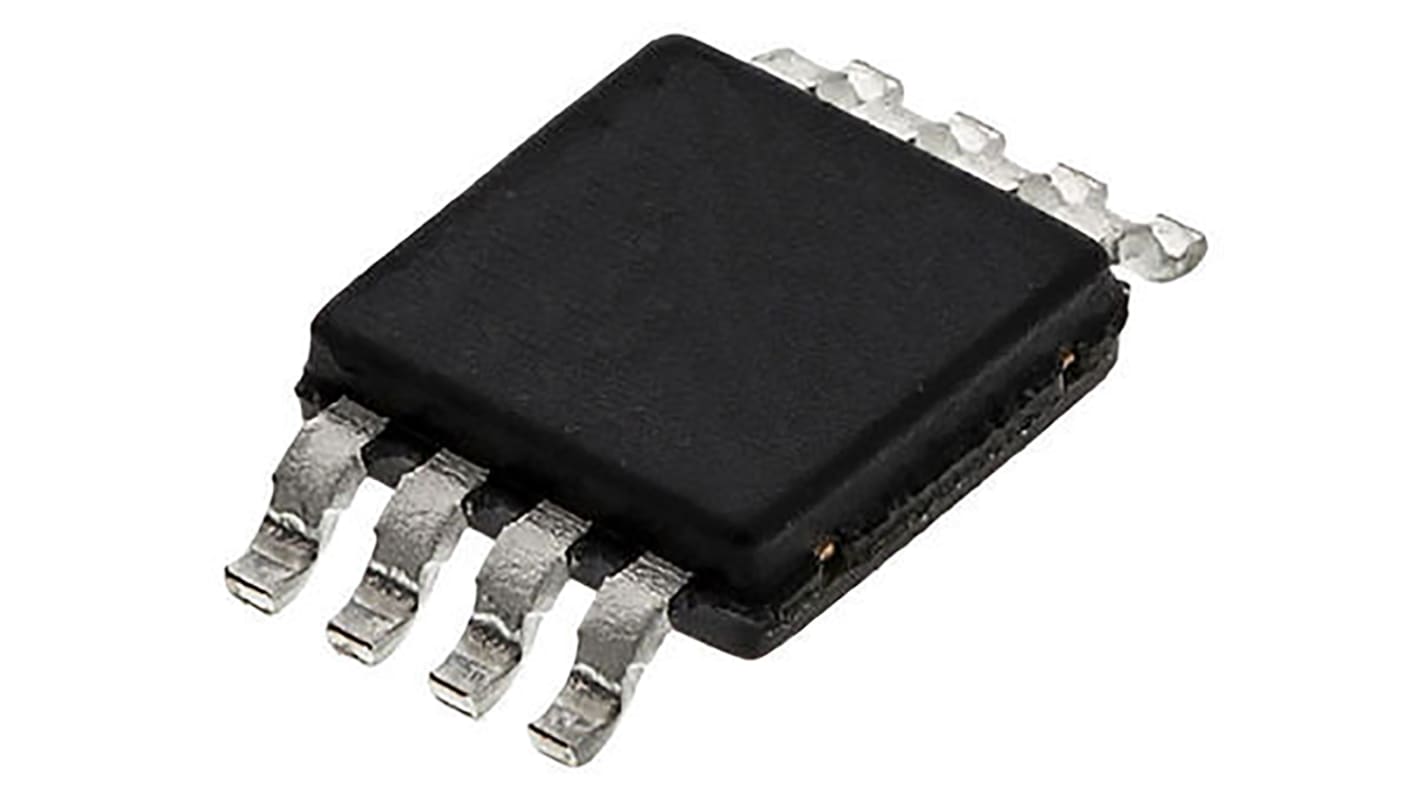

TSX922IST STMicroelectronics, High Speed, Op Amp, RRIO, 10MHz 100 kHz, 4 → 16 V, 8-Pin MSOP
- RS Stock No.:
- 168-7132
- Mfr. Part No.:
- TSX922IST
- Brand:
- STMicroelectronics
Available to back order for despatch 14/04/2025
Added
Price Each (On a Reel of 4000)
£1.005
(exc. VAT)
£1.206
(inc. VAT)
| Units | Per unit | Per Reel* |
| 4000 + | £1.005 | £4,020.00 |
| *price indicative | ||
- RS Stock No.:
- 168-7132
- Mfr. Part No.:
- TSX922IST
- Brand:
- STMicroelectronics
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
TSX92x, 10 MHz, Rail-to-Rail I/O, 16 V CMOS Operational Amplifiers
The TSX920, TSX921 (Single) and TSX922, TSX923 (Dual) operational amplifiers offer excellent AC characteristics.
TSX920, TSX923 with shutdown mode
Power supply operation from 4 V to 16 V
Gain bandwidth product: 10 MHz typical (16 V)
Low power consumption: 2.8 mA typical per amplifier (16 V)
ESD high tolerance: 4 kV (HBM)
Extended temperature range: -40°C to +125°C
Automotive qualification
Power supply operation from 4 V to 16 V
Gain bandwidth product: 10 MHz typical (16 V)
Low power consumption: 2.8 mA typical per amplifier (16 V)
ESD high tolerance: 4 kV (HBM)
Extended temperature range: -40°C to +125°C
Automotive qualification
Specifications
Attribute | Value |
|---|---|
| Amplifier Type | High Speed |
| Mounting Type | Surface Mount |
| Package Type | MSOP |
| Power Supply Type | Single |
| Number of Channels per Chip | 2 |
| Pin Count | 8 |
| Typical Single Supply Voltage | 4 → 16 V |
| Typical Gain Bandwidth Product | 10MHz |
| Typical Slew Rate | 17.7 V/μs, 19.6 V/μs |
| Maximum Operating Frequency | 100 kHz |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Typical Voltage Gain | 117 dB |
| Rail to Rail | Rail to Rail Input/Output |
| Dimensions | 3.2 x 3.1 x 0.95mm |
| Width | 3.1mm |
| Height | 0.95mm |
| Length | 3.2mm |
| Typical Input Voltage Noise Density | 17.9nV/√Hz |
