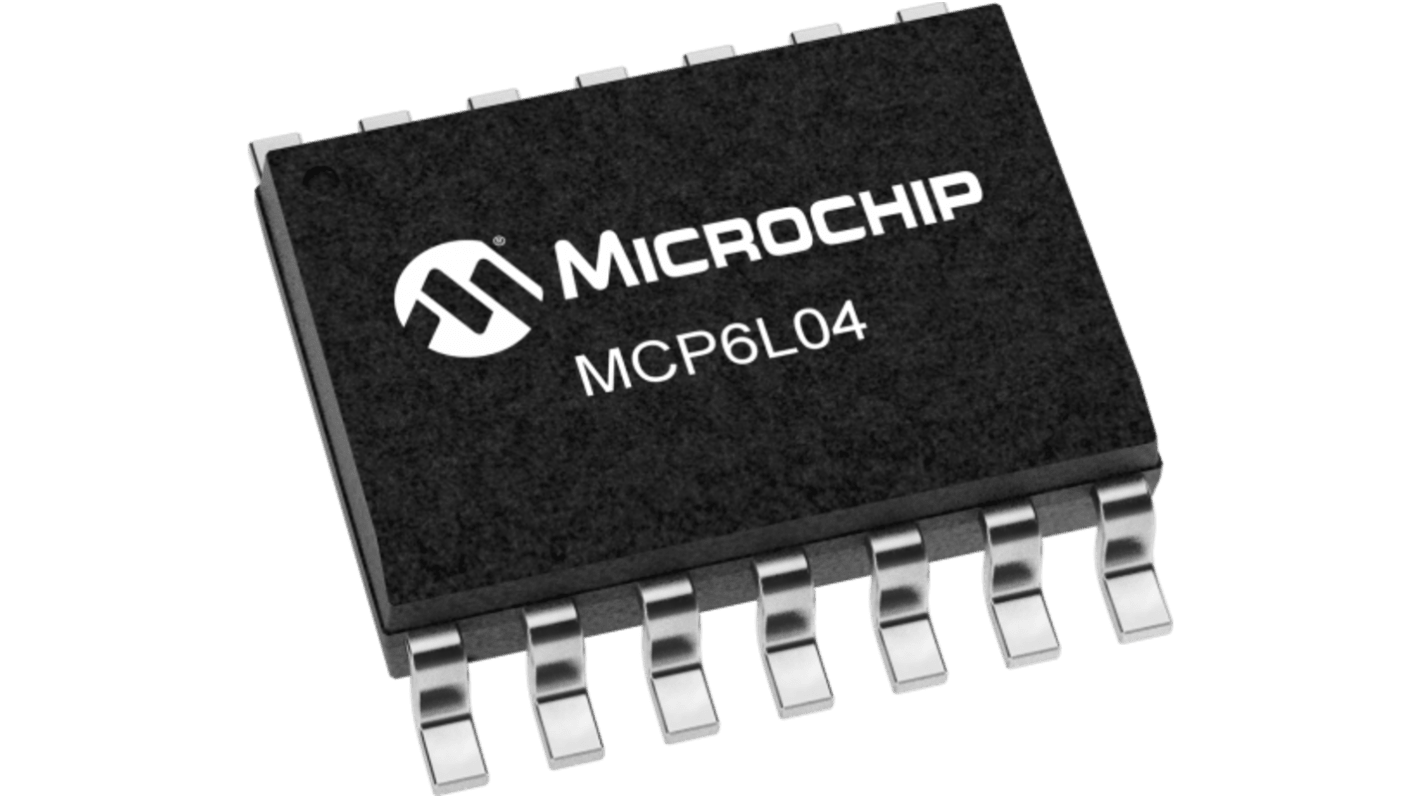

MCP6L04T-E/SL Microchip, Rail to Rail I/O, Op Amps, RRIO, 1MHz, 1.8 → 6 V, 14-Pin SOIC
- RS Stock No.:
- 649-387
- Mfr. Part No.:
- MCP6L04T-E/SL
- Brand:
- Microchip
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 649-387
- Mfr. Part No.:
- MCP6L04T-E/SL
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Amplifier Type | Rail to Rail I/O | |
| Mounting Type | Through Hole | |
| Package Type | SOIC | |
| Power Supply Type | Quad | |
| Number of Channels per Chip | 4 | |
| Pin Count | 14 | |
| Typical Single Supply Voltage | 1.8 → 6 V | |
| Typical Gain Bandwidth Product | 1MHz | |
| Rail to Rail | Rail to Rail Input/Output | |
Select all | ||
|---|---|---|
Brand Microchip | ||
Amplifier Type Rail to Rail I/O | ||
Mounting Type Through Hole | ||
Package Type SOIC | ||
Power Supply Type Quad | ||
Number of Channels per Chip 4 | ||
Pin Count 14 | ||
Typical Single Supply Voltage 1.8 → 6 V | ||
Typical Gain Bandwidth Product 1MHz | ||
Rail to Rail Rail to Rail Input/Output | ||
- COO (Country of Origin):
- TH
The Microchip Quad general purpose op amp offering rail-to-rail input and output over the 1.8 to 6V operating range. This amplifier has a typical GBWP of 1 MHz with typical quiescent current of 85 microamperes. The MCP6L04 is available in 14-pin SOIC and TSSOP package.
Rail to Rail Input and Output
Extended Temperature Range
Extended Temperature Range
