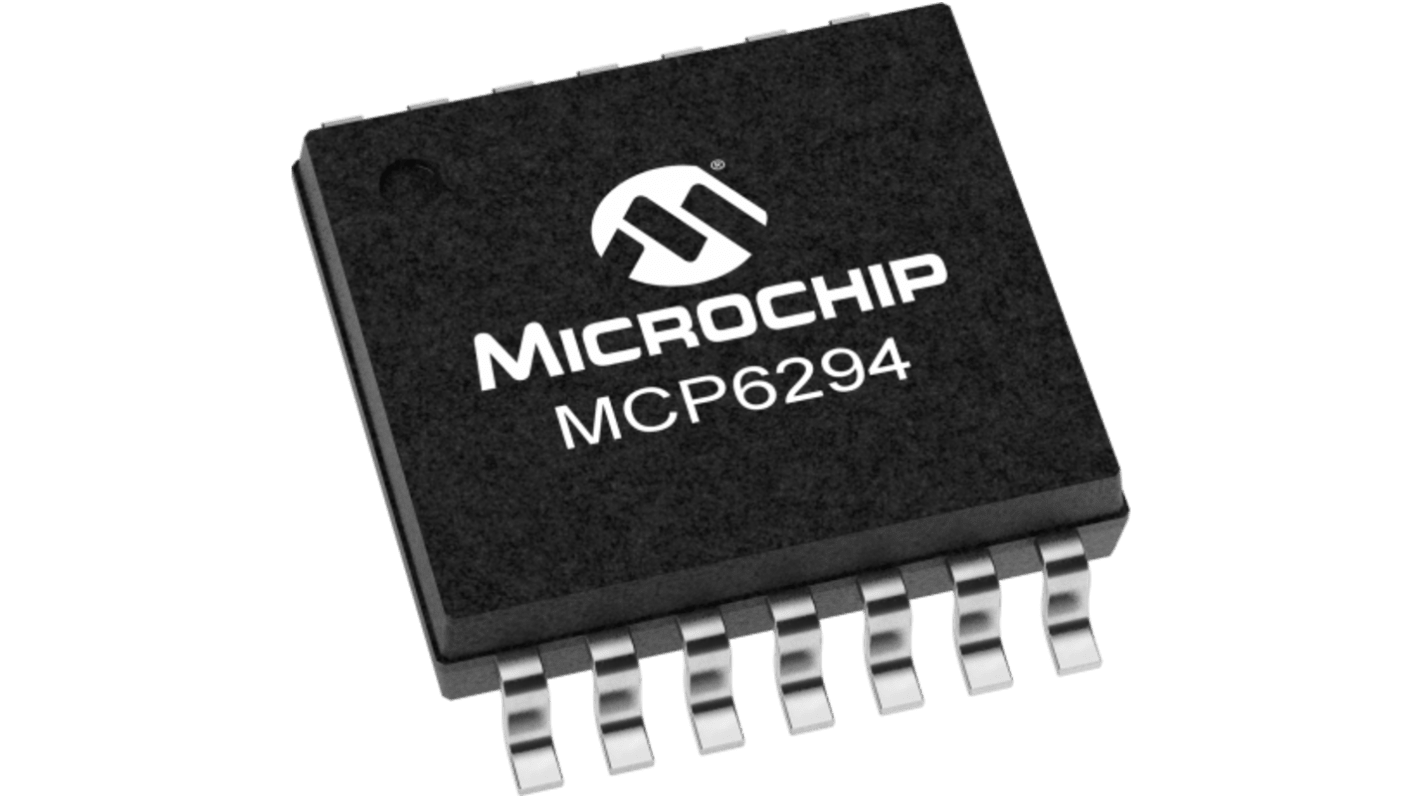

MCP6294-E/ST Microchip, Rail to Rail I/O, Op Amps, RRIO, 10MHz, 2.4 → 6 V, 14-Pin TSSOP
- RS Stock No.:
- 649-385
- Mfr. Part No.:
- MCP6294-E/ST
- Brand:
- Microchip
Bulk discount available
Subtotal (1 pack of 2 units)*
£3.44
(exc. VAT)
£4.12
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 288 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 18 | £1.72 | £3.44 |
| 20 - 98 | £1.515 | £3.03 |
| 100 - 198 | £1.36 | £2.72 |
| 200 + | £1.17 | £2.34 |
*price indicative
- RS Stock No.:
- 649-385
- Mfr. Part No.:
- MCP6294-E/ST
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Amplifier Type | Rail to Rail I/O | |
| Mounting Type | Through Hole | |
| Package Type | TSSOP | |
| Power Supply Type | Quad | |
| Number of Channels per Chip | 4 | |
| Pin Count | 14 | |
| Typical Single Supply Voltage | 2.4 → 6 V | |
| Typical Gain Bandwidth Product | 10MHz | |
| Rail to Rail | Rail to Rail Input/Output | |
Select all | ||
|---|---|---|
Brand Microchip | ||
Amplifier Type Rail to Rail I/O | ||
Mounting Type Through Hole | ||
Package Type TSSOP | ||
Power Supply Type Quad | ||
Number of Channels per Chip 4 | ||
Pin Count 14 | ||
Typical Single Supply Voltage 2.4 → 6 V | ||
Typical Gain Bandwidth Product 10MHz | ||
Rail to Rail Rail to Rail Input/Output | ||
The Microchip 10 MHz rail-to-rail operational amplifiers offer wide bandwidth for current handling and include a Chip Select input for dual op amps housed in an 8-pin package, where the device is constructed by cascading the two op amps so that the output of op amp A is connected to the noninverting input of op amp B, and the Chip Select input enables a low-power mode, with the amplifiers designed using Microchips advanced CMOS process.
Rail-to-Rail Input and Output
Extended Temperature Range is -40°C to +125°C
Available in Quad Packages
Extended Temperature Range is -40°C to +125°C
Available in Quad Packages
