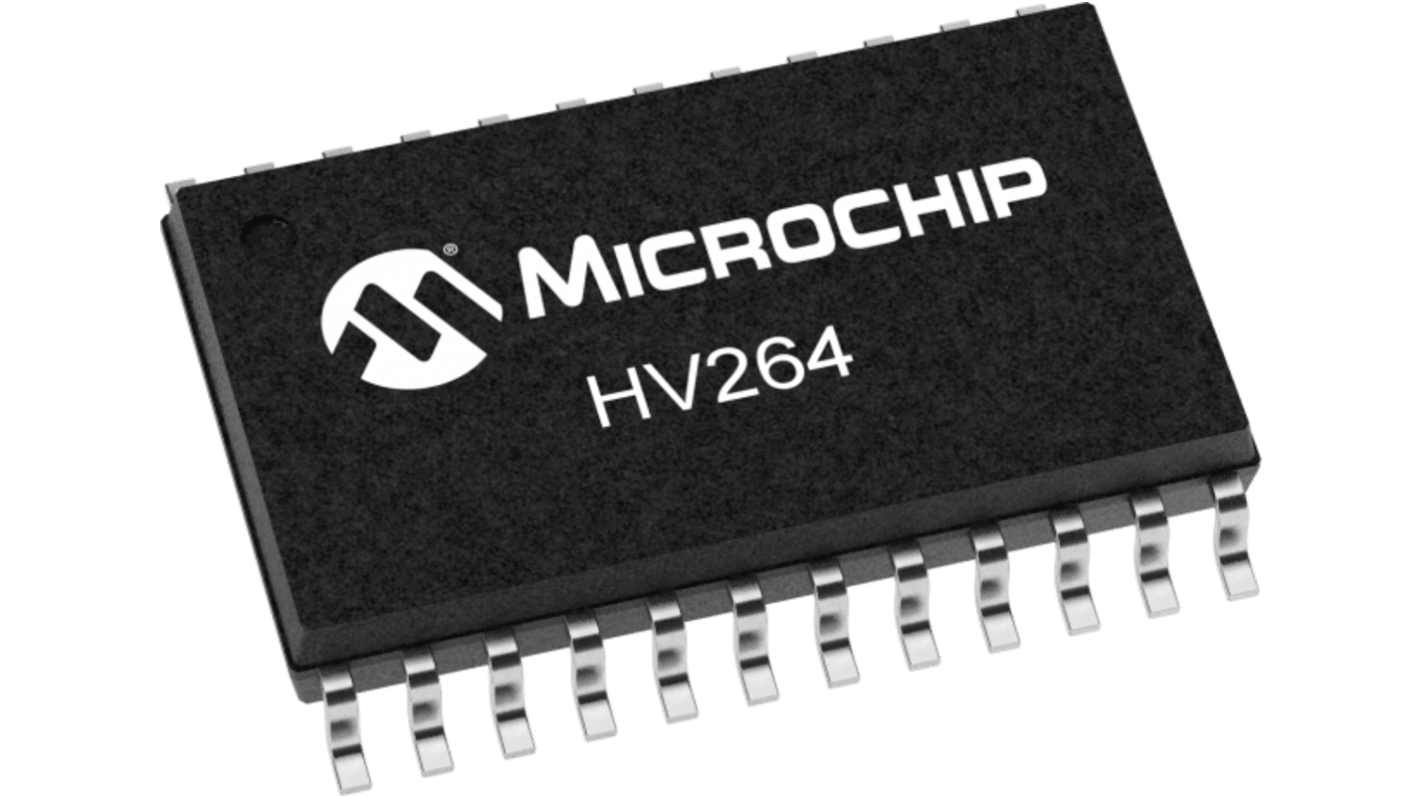

HV264TS-G Microchip, High Voltage, Op Amp, RRIO, 250 V, 24-Pin TSSOP
- RS Stock No.:
- 598-511
- Mfr. Part No.:
- HV264TS-G
- Brand:
- Microchip
Subtotal (1 reel of 2500 units)*
£12,425.00
(exc. VAT)
£14,900.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 28 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
2500 + | £4.97 | £12,425.00 |
*price indicative
- RS Stock No.:
- 598-511
- Mfr. Part No.:
- HV264TS-G
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Microchip | |
Amplifier Type | High Voltage | |
Mounting Type | Surface | |
Package Type | TSSOP | |
Power Supply Type | Quad | |
Number of Channels per Chip | 4 | |
Pin Count | 24 | |
Typical Single Supply Voltage | 250 V | |
Rail to Rail | Rail to Rail Input/Output | |
Select all | ||
---|---|---|
Brand Microchip | ||
Amplifier Type High Voltage | ||
Mounting Type Surface | ||
Package Type TSSOP | ||
Power Supply Type Quad | ||
Number of Channels per Chip 4 | ||
Pin Count 24 | ||
Typical Single Supply Voltage 250 V | ||
Rail to Rail Rail to Rail Input/Output | ||
- COO (Country of Origin):
- MY
The Microchip Quad high voltage amplifier array integrated circuit operates on a 225V high-voltage supply and a 5V low-voltage supply. Each channel has its own input and output. When both VOUT and FB pins are connected together and RGND is set at 0V, a non-inverting amplifier is formed with a closed-loop gain of 66.7V/V. High-value internal feedback resistors are used to minimize power dissipation.
Four Independent High Voltage Amplifiers
215V Output Swing
High Value Internal Feedback Resistors
Very Low Operating Current
215V Output Swing
High Value Internal Feedback Resistors
Very Low Operating Current
