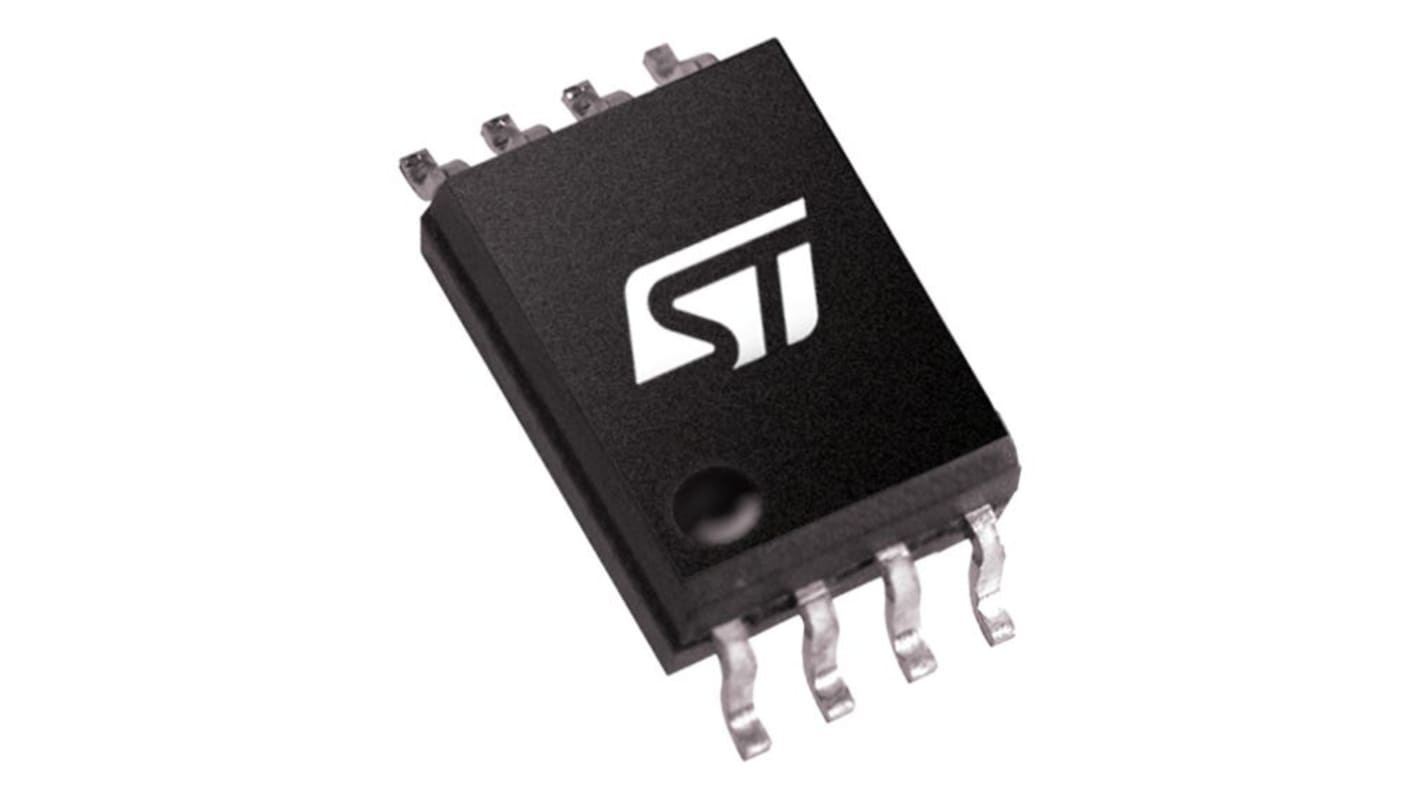

LM2904YDT STMicroelectronics, Operational Amplifier, Op Amps, 1.1MHz, 3 → 30 V, 8-Pin SO8
- RS Stock No.:
- 151-349
- Mfr. Part No.:
- LM2904YDT
- Brand:
- STMicroelectronics
Subtotal (1 reel of 2500 units)*
£207.50
(exc. VAT)
£250.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
2500 + | £0.083 | £207.50 |
*price indicative
- RS Stock No.:
- 151-349
- Mfr. Part No.:
- LM2904YDT
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Amplifier Type | Operational Amplifier | |
Mounting Type | Surface Mount | |
Package Type | SO8 | |
Power Supply Type | Single | |
Number of Channels per Chip | 2 | |
Pin Count | 8 | |
Typical Single Supply Voltage | 3 → 30 V | |
Typical Gain Bandwidth Product | 1.1MHz | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Amplifier Type Operational Amplifier | ||
Mounting Type Surface Mount | ||
Package Type SO8 | ||
Power Supply Type Single | ||
Number of Channels per Chip 2 | ||
Pin Count 8 | ||
Typical Single Supply Voltage 3 → 30 V | ||
Typical Gain Bandwidth Product 1.1MHz | ||
- COO (Country of Origin):
- MA
The STMicroelectronics Low power dual operational amplifier consists of two independent, high gain operational amplifiers that have frequency compensation implemented internally. They are designed specifically for automotive and industrial control systems. The circuit operates from a single power supply over a wide range of voltages. The low power supply drain is independent of the magnitude of the power supply voltage.
Frequency compensation implemented internally
Large DC voltage gain of 100 dB
Wide bandwidth of 1.1 MHz
Low input offset current of 2 nA
Input common mode voltage range includes negative rail
Differential input voltage range equal to the power supply voltage
Large DC voltage gain of 100 dB
Wide bandwidth of 1.1 MHz
Low input offset current of 2 nA
Input common mode voltage range includes negative rail
Differential input voltage range equal to the power supply voltage
