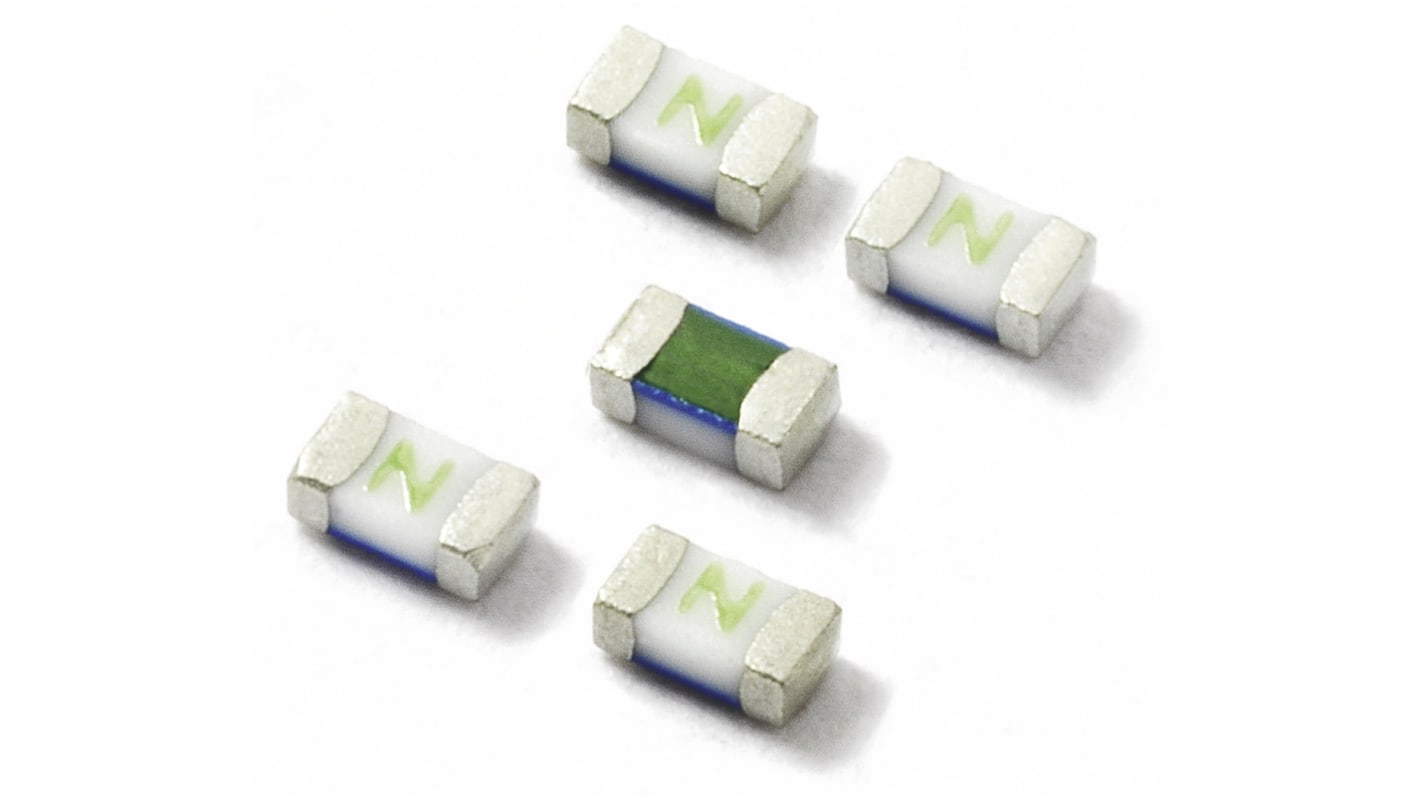

Littelfuse Non-Resettable Fuse 375 mA, 63 V dc
- RS Stock No.:
- 820-7098
- Mfr. Part No.:
- 0438.375WR
- Brand:
- Littelfuse
Subtotal (1 pack of 100 units)*
£73.40
(exc. VAT)
£88.10
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 800 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 100 + | £0.734 | £73.40 |
*price indicative
- RS Stock No.:
- 820-7098
- Mfr. Part No.:
- 0438.375WR
- Brand:
- Littelfuse
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Product Type | Non-Resettable Fuse | |
| Current Rating | 375 mA | |
| Voltage | 63 V dc | |
| Fuse Speed | F | |
| Body Material | Ceramic | |
| Width | 0.85 mm | |
| Height | 0.5mm | |
| Minimum Operating Temperature | -55°C | |
| Fuse Characteristics | Fast Acting | |
| Maximum Operating Temperature | 150°C | |
| Package Type | Reel | |
| Breaking Capacity | 50A | |
| Depth | 1.54mm | |
| Standards/Approvals | CSA, RoHS | |
| Series | 438 | |
| Package Size | 0603 | |
| Terminal Material | Silver, Tin, Nickel | |
| Resistance | 1.25Ω | |
| Select all | ||
|---|---|---|
Brand Littelfuse | ||
Product Type Non-Resettable Fuse | ||
Current Rating 375 mA | ||
Voltage 63 V dc | ||
Fuse Speed F | ||
Body Material Ceramic | ||
Width 0.85 mm | ||
Height 0.5mm | ||
Minimum Operating Temperature -55°C | ||
Fuse Characteristics Fast Acting | ||
Maximum Operating Temperature 150°C | ||
Package Type Reel | ||
Breaking Capacity 50A | ||
Depth 1.54mm | ||
Standards/Approvals CSA, RoHS | ||
Series 438 | ||
Package Size 0603 | ||
Terminal Material Silver, Tin, Nickel | ||
Resistance 1.25Ω | ||
Littelfuse 438 Series Fast Acting Fuses
Littelfuse 438 Series fast acting fuses has been especially designed to provide over current protection to circuits that operate under high working ambient temperatures up to 150ºC. Ideal for handheld electronics, LCD displays, battery packs, hard disk drives and SD memory cards applications.
Operating temperature from -55°C to +150°C
100% Lead-free and RoHS compliant and Halogen-free
Suitable for both leaded and lead-free reflow/wave soldering
Surface Mount Technology
Surface mount fuses offer considerable space (and time) saving features for low voltage applications. The FF types are ideal for protection of high value silicon IC's e.g. alarm systems, audio/visual equipment, computer boards, portable telephones, power supplies, medical apparatus etc.
