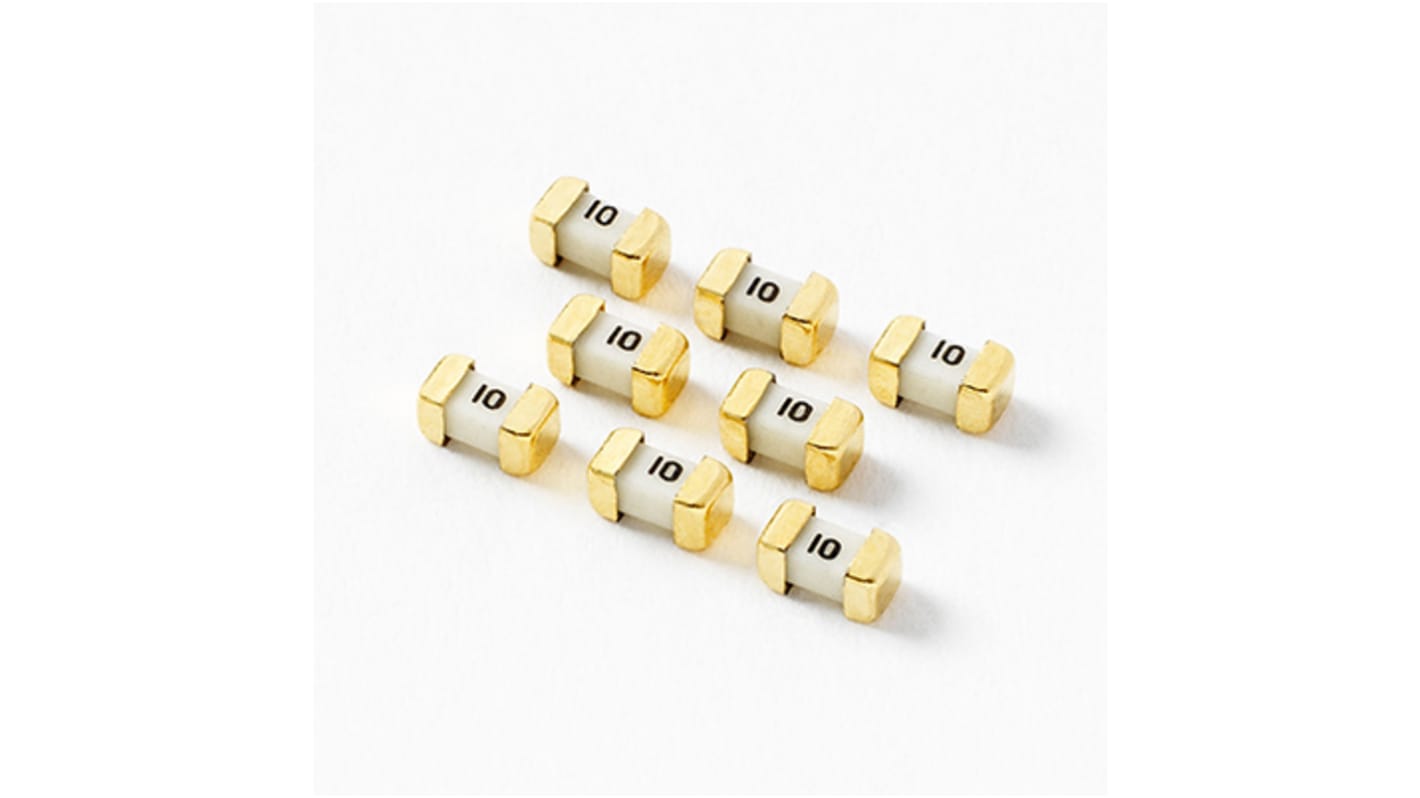

Wickmann SMD Non Resettable Fuse 10A, 63V
- RS Stock No.:
- 174-0289
- Mfr. Part No.:
- 0458010.DR
- Brand:
- Wickmann
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 174-0289
- Mfr. Part No.:
- 0458010.DR
- Brand:
- Wickmann
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Wickmann | |
Current Rating | 10A | |
Voltage Rating | 63V | |
Fuse Speed | F | |
Body Material | Ceramic | |
Body Length | 3.17mm | |
Body Width | 1.57mm | |
Body Height | 1.57mm | |
Breaking Capacity at Maximum Voltage Rating | 50 A @ 32 V ac, 50 A @ 63 V dc | |
Minimum Operating Temperature | -55°C | |
Maximum Operating Temperature | +125°C | |
Series | 458 | |
Terminal Material | Gold Plated | |
Dimensions | 3.17 x 1.57 x 1.57mm | |
Resistance | 0.004Ω | |
Select all | ||
---|---|---|
Brand Wickmann | ||
Current Rating 10A | ||
Voltage Rating 63V | ||
Fuse Speed F | ||
Body Material Ceramic | ||
Body Length 3.17mm | ||
Body Width 1.57mm | ||
Body Height 1.57mm | ||
Breaking Capacity at Maximum Voltage Rating 50 A @ 32 V ac, 50 A @ 63 V dc | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +125°C | ||
Series 458 | ||
Terminal Material Gold Plated | ||
Dimensions 3.17 x 1.57 x 1.57mm | ||
Resistance 0.004Ω | ||
- COO (Country of Origin):
- CN
The 458 Series Nano2® Fuse is an ultra-small, square surface mount fuse designed to support a variety of space constrained overcurrent protection applications. Offering a 1206 size footprint, it is the smallest wire-in-air type surface mount fuse offered by Littelfuse.
Features:
Surface Mount Fuse
Fully compatible with lead free soldering profiles
Halogen Free
Available in ratings of 1to 10 Amperes
Applications:
Notebook PC
LCD backlight inverter
LCD Panel
DC/DC converter
Battery Pack
Car Navigation System
Network Equipment
Telecom Equipment
Electronic Signage
Portable Consumer Electronics
Surface Mount Fuse
Fully compatible with lead free soldering profiles
Halogen Free
Available in ratings of 1to 10 Amperes
Applications:
Notebook PC
LCD backlight inverter
LCD Panel
DC/DC converter
Battery Pack
Car Navigation System
Network Equipment
Telecom Equipment
Electronic Signage
Portable Consumer Electronics
