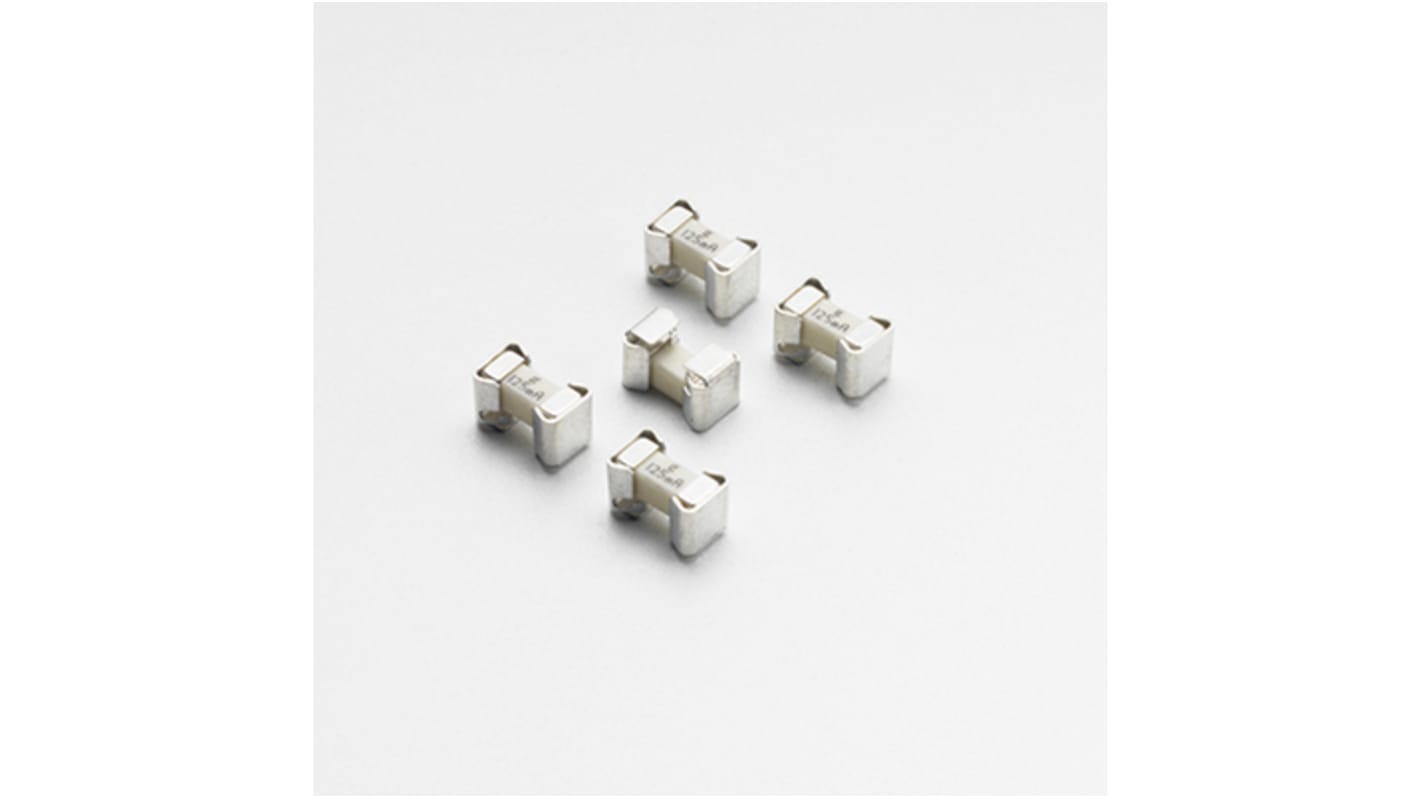

Wickmann SMD Non Resettable Fuse 10A, 125V
- RS Stock No.:
- 174-0286
- Mfr. Part No.:
- 0157010.DR
- Brand:
- Wickmann
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 174-0286
- Mfr. Part No.:
- 0157010.DR
- Brand:
- Wickmann
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wickmann | |
| Current Rating | 10A | |
| Voltage Rating | 125V | |
| Fuse Speed | FF | |
| Body Material | Ceramic | |
| Body Length | 6.5mm | |
| Body Width | 3.7mm | |
| Body Height | 3.9mm | |
| Breaking Capacity at Maximum Voltage Rating | 300 A @ 32 V dc, 35 A @ 125 V ac, 50 A @ 125 V dc | |
| Minimum Operating Temperature | -55°C | |
| Series | 157 | |
| Maximum Operating Temperature | +125°C | |
| Resistance | 0.005Ω | |
| Dimensions | 6.5 x 3.7 x 3.9mm | |
| Terminal Material | Silver Plated | |
Select all | ||
|---|---|---|
Brand Wickmann | ||
Current Rating 10A | ||
Voltage Rating 125V | ||
Fuse Speed FF | ||
Body Material Ceramic | ||
Body Length 6.5mm | ||
Body Width 3.7mm | ||
Body Height 3.9mm | ||
Breaking Capacity at Maximum Voltage Rating 300 A @ 32 V dc, 35 A @ 125 V ac, 50 A @ 125 V dc | ||
Minimum Operating Temperature -55°C | ||
Series 157 | ||
Maximum Operating Temperature +125°C | ||
Resistance 0.005Ω | ||
Dimensions 6.5 x 3.7 x 3.9mm | ||
Terminal Material Silver Plated | ||
