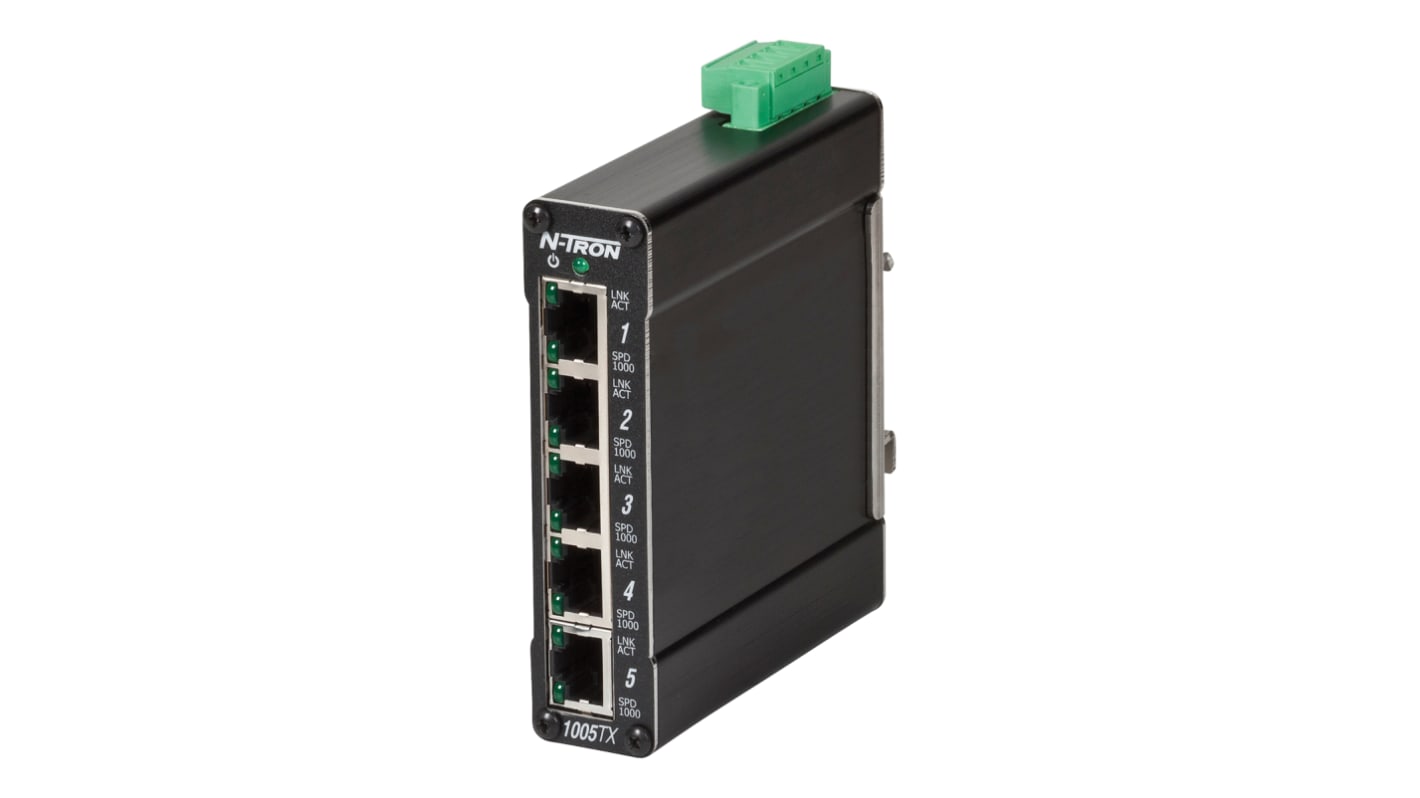

The Red Lion unmanaged gigabit Ethernet switch is an innovative device housed in a hardened, metal DIN-Rail enclosure. It is designed for use in mission-critical data acquisition, control, and Ethernet I/O applications where Gigabit capability is required. It is designed to solve the most demanding industrial communication requirements while providing high throughput and minimum downtime. With an endless range of port options, these unmanaged switches are set to tackle the demands of industrial data acquisition.

Five 10/100/1000BaseT RJ-45 ports
Unmanaged operation
Extended environmental specifications
Operating temperature ranges between -40°C and 85°C
Compact size, smaller footprint
IEEE 802.3, 802.3u, and 802.3ab compliance
>2Mhrs MTBF
Supports full/half duplex operation
Up to 10.0Gb/s maximum throughput
MDIX auto cable sensing (RJ-45)
Auto sensing speed and flow control
Full wire speed communications
Supports up to 4,000 MAC addresses
Jumbo frame support
Store-and-forward technology
Redundant power inputs (10-30 VDC)
LED link/activity status indication

Factory automation
Utilities
SCADA
Security surveillance
Transportation
Alternative energy

CE
