Weidmüller Unmanaged 5 Port Ethernet Switch
- RS Stock No.:
- 893-6837
- Distrelec Article No.:
- 303-80-853
- Mfr. Part No.:
- 1504410000
- Brand:
- Weidmüller
Subtotal (1 unit)*
£351.48
(exc. VAT)
£421.78
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £351.48 |
*price indicative
- RS Stock No.:
- 893-6837
- Distrelec Article No.:
- 303-80-853
- Mfr. Part No.:
- 1504410000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Weidmüller | |
| Number of Ports | 5 | |
| Product Type | Ethernet Switch | |
| Switch Type | Unmanaged | |
| Network Speed | 100Mbps | |
| Number of RJ-45 Ports | 5 | |
| Width | 60 mm | |
| Standards/Approvals | CE, FCC, RoHS, UL | |
| Depth | 29.6mm | |
| Height | 125mm | |
| Compatible USB Cable Version | No | |
| Select all | ||
|---|---|---|
Brand Weidmüller | ||
Number of Ports 5 | ||
Product Type Ethernet Switch | ||
Switch Type Unmanaged | ||
Network Speed 100Mbps | ||
Number of RJ-45 Ports 5 | ||
Width 60 mm | ||
Standards/Approvals CE, FCC, RoHS, UL | ||
Depth 29.6mm | ||
Height 125mm | ||
Compatible USB Cable Version No | ||
- COO (Country of Origin):
- TW

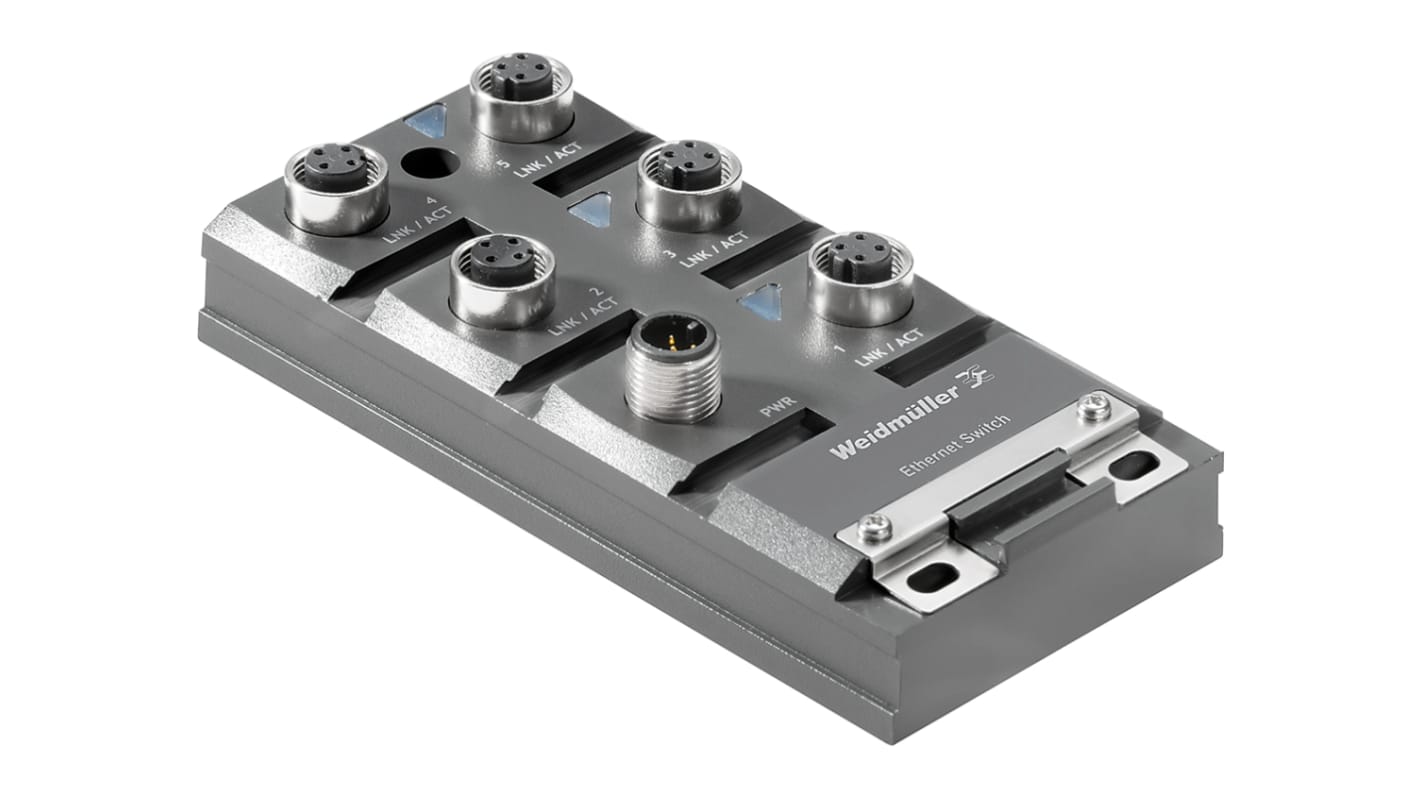

Unmanaged Switch Fast Ethernet - IP67
IP67 switches are suitable for the most difficult of industrial applications thanks to their robust housing with protection class IP 67, which certifies against the ingress of dust, water and oil.
The M12 connection system guarantees a secure connection between cable and switch under external disturbances such as vibration and shock.
Unmanaged Ethernet Switches
M12 connection system
5 ports
10/100BaseT(X), 4-pin M12 (D-coded)
Full/half-duplex mode and auto MDI/MDI-X
Input voltage 12-45 Vdc / 18-30 Vac
IP67 protected housing
Weidmuller
