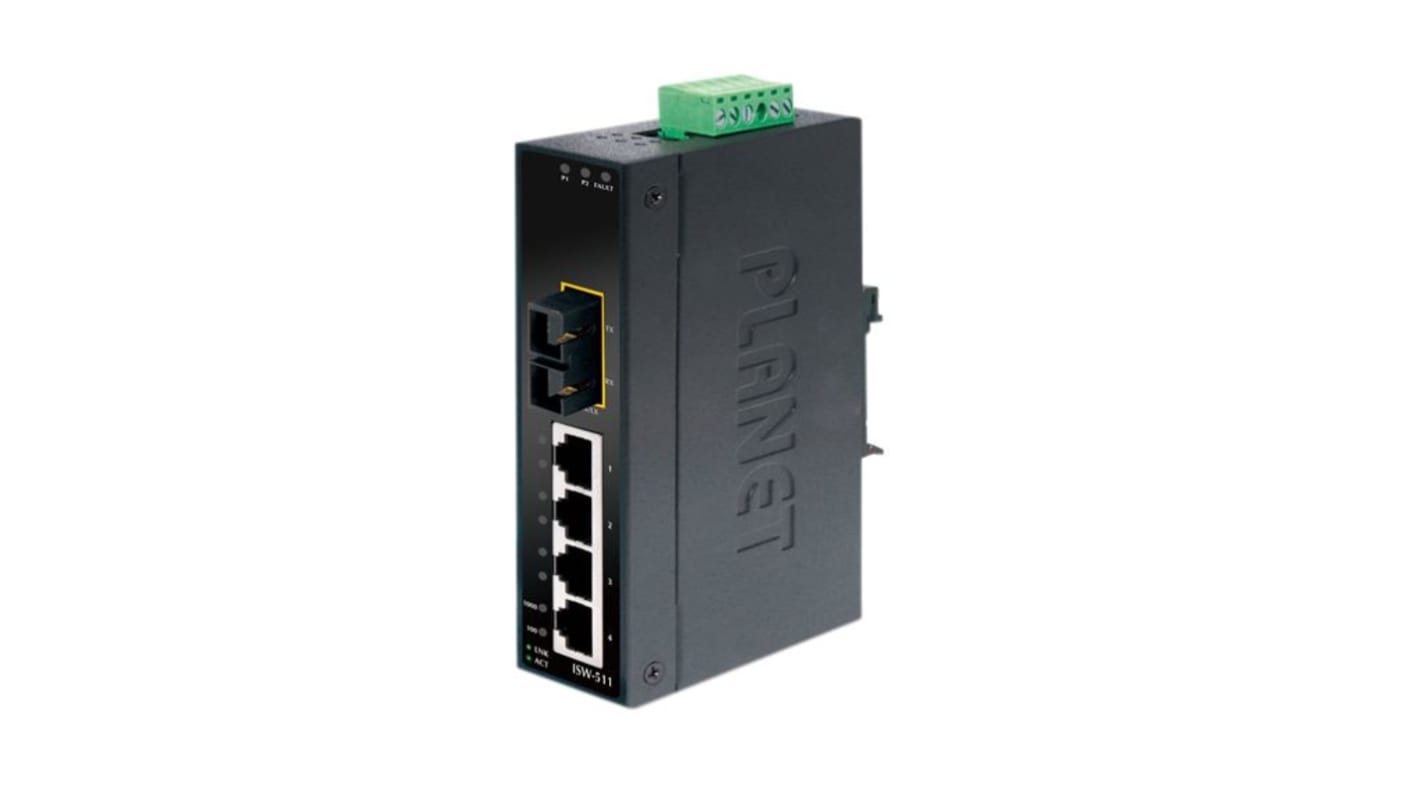

Planet ISW-511TS15 Unmanaged 5 Port Ethernet Switch
- RS Stock No.:
- 285-8288
- Distrelec Article No.:
- 302-62-129
- Mfr. Part No.:
- ISW-511TS15
- Brand:
- Planet
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£89.89
(exc. VAT)
£107.87
(inc. VAT)
- RS Stock No.:
- 285-8288
- Distrelec Article No.:
- 302-62-129
- Mfr. Part No.:
- ISW-511TS15
- Brand:
- Planet
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Planet | |
| Product Type | Ethernet Switch | |
| Number of Ports | 5 | |
| Switch Type | Unmanaged | |
| Network Speed | 100Mbps | |
| Desktop/Rack Mount | Rack | |
| Number of RJ-45 Ports | 4 | |
| Model Number | ISW-511TS15 | |
| Standards/Approvals | CE | |
| Depth | 97mm | |
| Height | 135mm | |
| Width | 32 mm | |
| Select all | ||
|---|---|---|
Brand Planet | ||
Product Type Ethernet Switch | ||
Number of Ports 5 | ||
Switch Type Unmanaged | ||
Network Speed 100Mbps | ||
Desktop/Rack Mount Rack | ||
Number of RJ-45 Ports 4 | ||
Model Number ISW-511TS15 | ||
Standards/Approvals CE | ||
Depth 97mm | ||
Height 135mm | ||
Width 32 mm | ||
- COO (Country of Origin):
- TW
The industrial Ethernet switch ISW-511TS15 is a high-performance device designed for heavy industrial environments. With features like 4 10/100Base-TX ports, 1 100Base-FX optic-fiber SC interface, and a non-blocking switch fabric, this switch ensures fast and reliable data transfer without the risk of packet loss.
4 x 10/100Base-TX ports with Auto-MDI/MDI-X function
1 x 100Base-FX interface supporting up to 15km transmission distance on single-mode fiber
High performance Store-and-Forward architecture for optimized network bandwidth
Integrated power supply source with wide range of voltages for worldwide high availability applications
DIN rail and wall mount design for flexible installation options
Stable operation under difficult environments with -10 to 60 Degree C temperature range
IEEE 802.3x flow control for efficient data transfer
