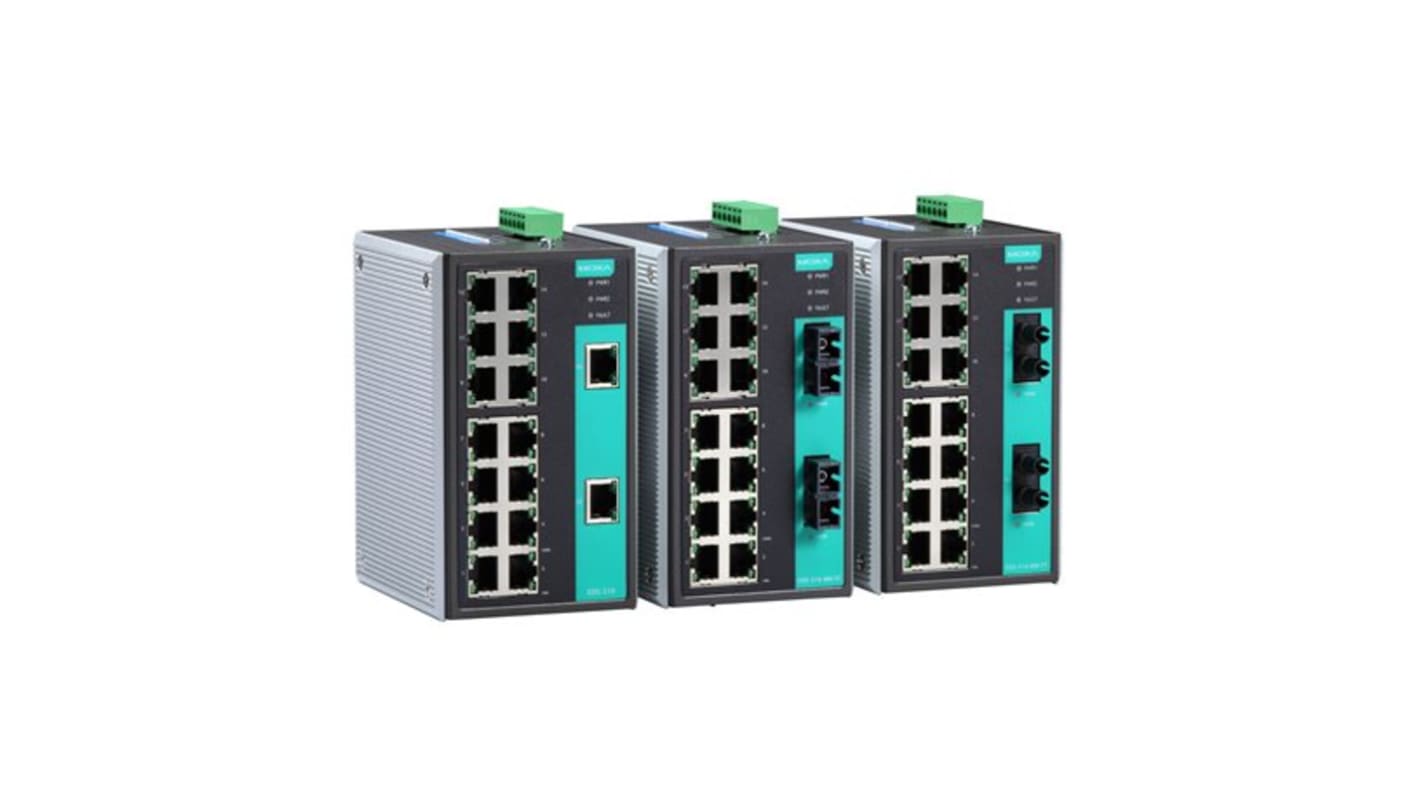

MOXA Unmanaged 16 Port Ethernet Switch
- RS Stock No.:
- 255-1870
- Mfr. Part No.:
- EDS-316-M-ST-T
- Brand:
- MOXA
Subtotal (1 unit)*
£798.78
(exc. VAT)
£958.54
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 08 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £798.78 |
*price indicative
- RS Stock No.:
- 255-1870
- Mfr. Part No.:
- EDS-316-M-ST-T
- Brand:
- MOXA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MOXA | |
| Number of Ports | 16 | |
| Product Type | Ethernet Switch | |
| Switch Type | Unmanaged | |
| Desktop/Rack Mount | Rack | |
| Number of RJ-45 Ports | 15 | |
| Standards/Approvals | EN 55032/24, ATEX, CE, CISPR 32, Class I Division 2, CSA C22.2 No. 60950-1, DNV-GL, FCC, FCC Part 15B Class A, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, MIL-HDBK-217F, UL, UL 508, UL 60950-1 | |
| Height | 135mm | |
| Width | 80.1mm | |
| Depth | 105mm | |
| Compatible USB Cable Version | No | |
| Select all | ||
|---|---|---|
Brand MOXA | ||
Number of Ports 16 | ||
Product Type Ethernet Switch | ||
Switch Type Unmanaged | ||
Desktop/Rack Mount Rack | ||
Number of RJ-45 Ports 15 | ||
Standards/Approvals EN 55032/24, ATEX, CE, CISPR 32, Class I Division 2, CSA C22.2 No. 60950-1, DNV-GL, FCC, FCC Part 15B Class A, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, MIL-HDBK-217F, UL, UL 508, UL 60950-1 | ||
Height 135mm | ||
Width 80.1mm | ||
Depth 105mm | ||
Compatible USB Cable Version No | ||
- COO (Country of Origin):
- TW
The Moxa Europe Ethernet switches provide an economical solution for your industrial Ethernet connections. These 16-port switches come with a builtin relay warning function that alerts network engineers when power failures or port breaks occur. In addition, the switches are designed for harsh industrial environments, such as the hazardous locations defined by the class 1 div. 2 and ATEX zone 2 standards.
Relay output warning for power failure and port break alarm
Broadcast storm protection
-40 to 75°C operating temperature range (-T models)
