MOXA Unmanaged Ethernet Switch 5 Port Ethernet Switch
- RS Stock No.:
- 255-1813
- Distrelec Article No.:
- 125-74-147
- Mfr. Part No.:
- EDS-205A-M-ST
- Brand:
- MOXA
Subtotal (1 unit)*
£244.14
(exc. VAT)
£292.97
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £244.14 |
*price indicative
- RS Stock No.:
- 255-1813
- Distrelec Article No.:
- 125-74-147
- Mfr. Part No.:
- EDS-205A-M-ST
- Brand:
- MOXA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MOXA | |
| Number of Ports | 5 | |
| Product Type | Ethernet Switch | |
| Switch Type | Unmanaged Ethernet Switch | |
| Power Over Ethernet | No | |
| Number of RJ-45 Ports | 5 | |
| Depth | 70mm | |
| Height | 115mm | |
| Width | 30 mm | |
| Standards/Approvals | Telcordia (Bellcore), ABS, ATEX, Class I Division 2, DNV-GL, EN 50121-4, EN 55032/24, GB, IEC 60068-2-27, UL 508, NEMA TS2, NK, IEEE 802.3u/x, LR, IEC 60068-2-31, IEC 60068-2-6, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IECEX, IEEE 802.3 | |
| Compatible USB Cable Version | No | |
| Select all | ||
|---|---|---|
Brand MOXA | ||
Number of Ports 5 | ||
Product Type Ethernet Switch | ||
Switch Type Unmanaged Ethernet Switch | ||
Power Over Ethernet No | ||
Number of RJ-45 Ports 5 | ||
Depth 70mm | ||
Height 115mm | ||
Width 30 mm | ||
Standards/Approvals Telcordia (Bellcore), ABS, ATEX, Class I Division 2, DNV-GL, EN 50121-4, EN 55032/24, GB, IEC 60068-2-27, UL 508, NEMA TS2, NK, IEEE 802.3u/x, LR, IEC 60068-2-31, IEC 60068-2-6, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IECEX, IEEE 802.3 | ||
Compatible USB Cable Version No | ||
- COO (Country of Origin):
- TW

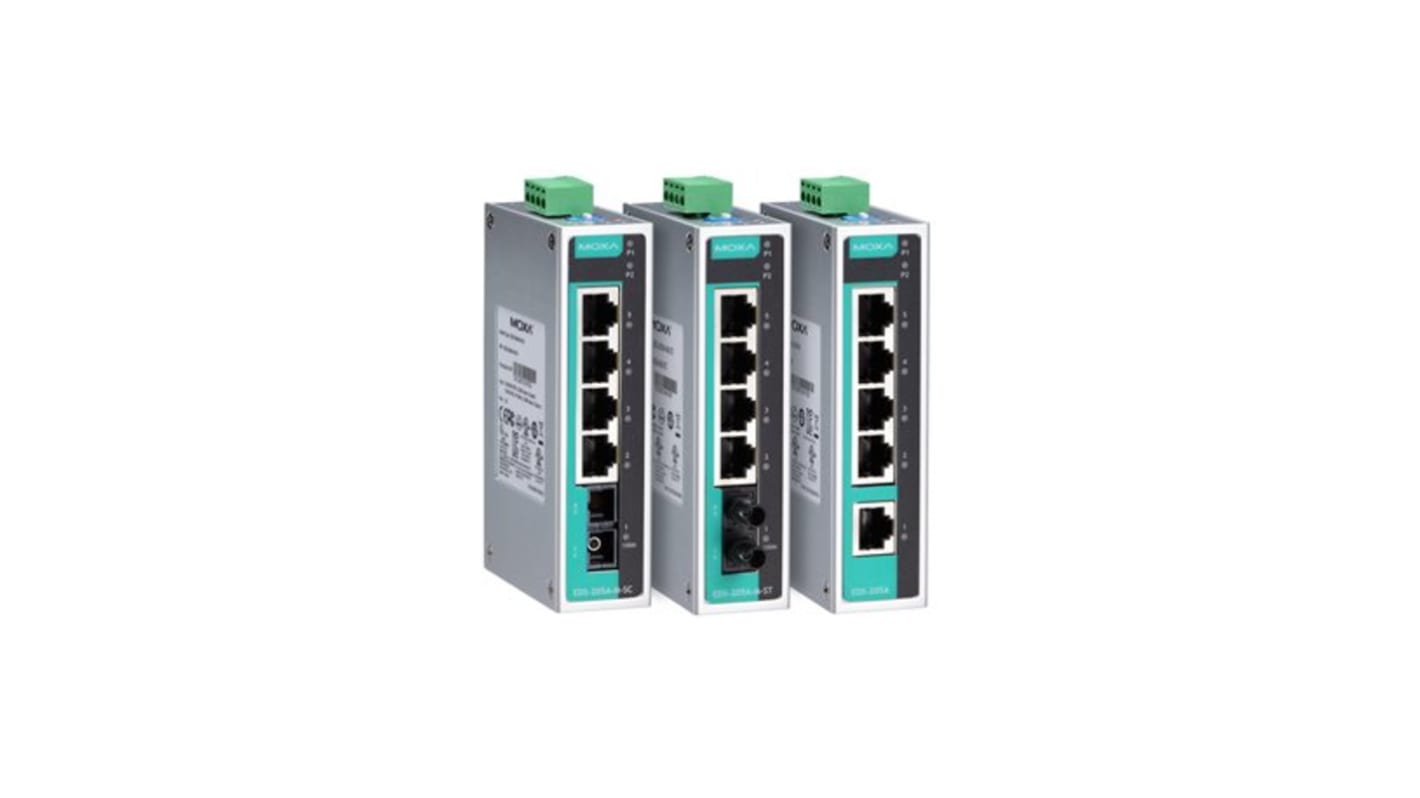

The Moxa Europe industrial Ethernet switches support IEEE 802.3 and IEEE 802.3u/x with 10/100M full/half-duplex, MDI/MDI-X autosensing. The EDS-205A series has 12/24/48 VDC (9.6 to 60 VDC) redundant power inputs that can be connected simultaneously to live DC power sources. These switches have been designed for harsh industrial environments, such as in maritime (DNV/GL/LR/ABS/NK), rail wayside, highway, or mobile applications (EN 50121-4/NEMA TS2/e-Mark), or hazardous locations (Class I Div. 2, ATEX Zone 2) that comply with FCC, UL, and CE standards.
10/100baseT(X) (RJ45 connector), 100baseFX (multi/single-mode, SC or ST connector)
Redundant dual 12/24/48 VDC power inputs
IP30 aluminium housing
-40 to 75°C operating temperature range (-T models)
