Startech IES81000POE, Unmanaged 8 Port Ethernet Switch With PoE
- RS Stock No.:
- 138-5565
- Mfr. Part No.:
- IES81000POE
- Brand:
- Startech
Stock information currently inaccessible
- RS Stock No.:
- 138-5565
- Mfr. Part No.:
- IES81000POE
- Brand:
- Startech
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Startech | |
| Number of Ports | 8 | |
| PoE - Power Over Ethernet | Yes | |
| Switch Type | Unmanaged | |
| RJ45 Ports | 8 | |
| Network Speed Class | Gigabit | |
| Height | 38mm | |
| Network Speed | 10/100/1000Mbit/s | |
| Model | IES81000POE | |
| Width | 188mm | |
| Depth | 119mm | |
| Dimensions | 188 x 119 x 38mm | |
| Select all | ||
|---|---|---|
Brand Startech | ||
Number of Ports 8 | ||
PoE - Power Over Ethernet Yes | ||
Switch Type Unmanaged | ||
RJ45 Ports 8 | ||
Network Speed Class Gigabit | ||
Height 38mm | ||
Network Speed 10/100/1000Mbit/s | ||
Model IES81000POE | ||
Width 188mm | ||
Depth 119mm | ||
Dimensions 188 x 119 x 38mm | ||
- COO (Country of Origin):
- TW

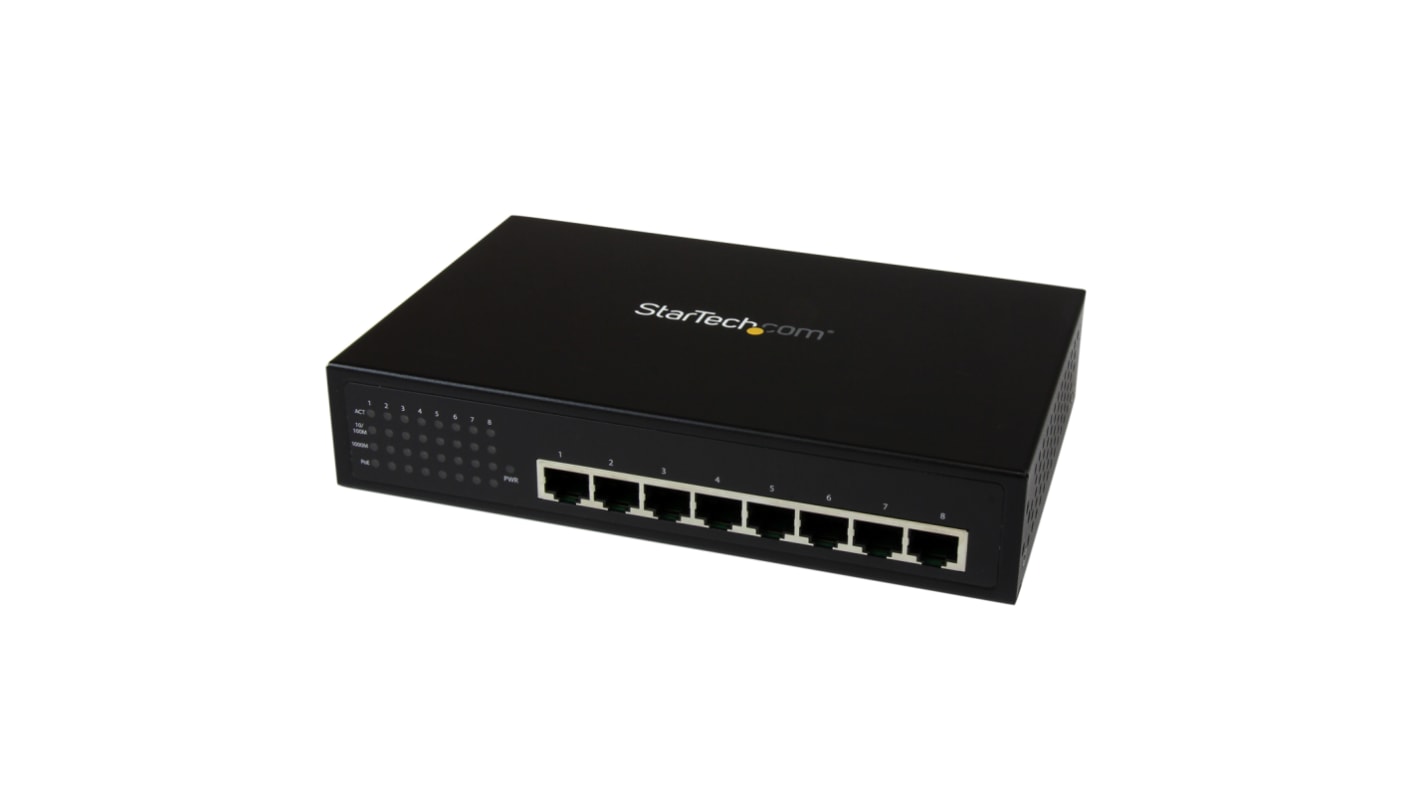

IES81000POE 8 Port Gigabit Ethernet Switch
The IES81000POE 8-Port Gigabit Power over Ethernet Switch lets you connect Gigabit Ethernet and power to up to eight PoE-enabled devices, or a mixture of PoE and non-PoE components.
Giving you the freedom to place your equipment in locations where power outlets are not available, this PoE+ switch complies with IEEE 802.3af and 802.3at standards and supplies up to 30 W per port, with a total power budget of 120 W.
A true unmanaged switching solution, the 8 PSE (Power Sourcing Equipment) ports sense whether the connected devices are PoE-ready or require data connectivity only, and also auto-negotiate between 10/100/1000 Mbps network speed and duplex.
The Gigabit Ethernet switch features a sturdy, wall-mountable metal enclosure for durability, and front panel LEDs for quick indication of connection speed and status.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Giving you the freedom to place your equipment in locations where power outlets are not available, this PoE+ switch complies with IEEE 802.3af and 802.3at standards and supplies up to 30 W per port, with a total power budget of 120 W.
A true unmanaged switching solution, the 8 PSE (Power Sourcing Equipment) ports sense whether the connected devices are PoE-ready or require data connectivity only, and also auto-negotiate between 10/100/1000 Mbps network speed and duplex.
The Gigabit Ethernet switch features a sturdy, wall-mountable metal enclosure for durability, and front panel LEDs for quick indication of connection speed and status.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Features & Benefits
• Well suited for networks in demanding industrial applications such as warehouses and factories
• A great way to enhance network connectivity, adding small workgroups to an existing network
• Install in a server rack or cabinet in a network room or test lab environment+P203
• A great way to enhance network connectivity, adding small workgroups to an existing network
• Install in a server rack or cabinet in a network room or test lab environment+P203
Applications
• Power a security camera/network webcam situated in a remote area where power connection is not possible
• Perfect for powering a Wireless Access Point(WAP) in a business environment
• Great for IT administrators i+mplementing PoE supported VoIP phones
• Power your int+P203ercom, paging or hallway speaker amplifier
• Enable remote installation of touchscreens or information kiosks
• Perfect for powering a Wireless Access Point(WAP) in a business environment
• Great for IT administrators i+mplementing PoE supported VoIP phones
• Power your int+P203ercom, paging or hallway speaker amplifier
• Enable remote installation of touchscreens or information kiosks
What’s in the package?
• 8 Port Gigabit PoE Switch
• Wall mount Brackets
• Set, Rubber Feet
• Universal Power Adapter (NA/JP, EU, UK, ANZ)
• Instruction Manual
• Wall mount Brackets
• Set, Rubber Feet
• Universal Power Adapter (NA/JP, EU, UK, ANZ)
• Instruction Manual
