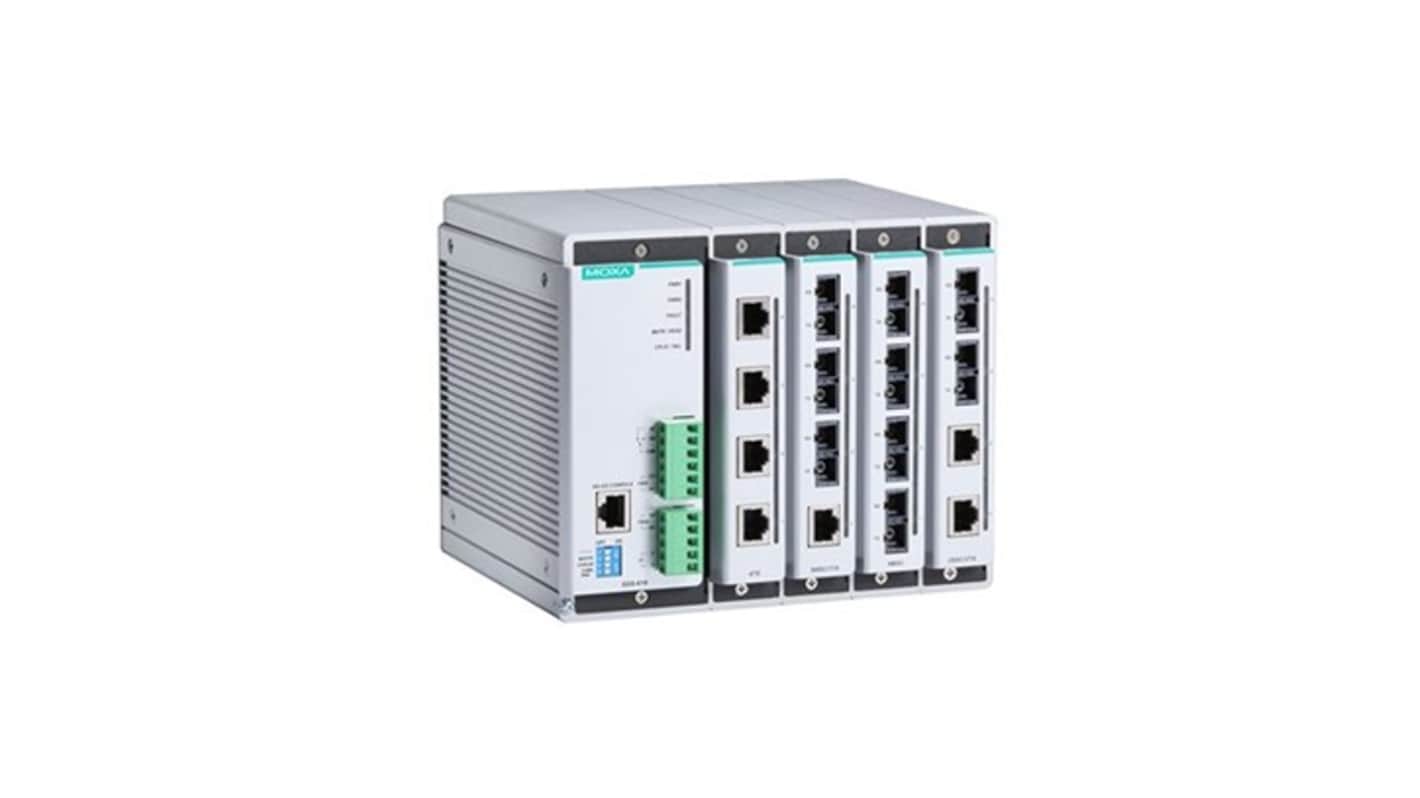

MOXA EDS-616-T Managed Layer 2 16 Port Ethernet Switch
- RS Stock No.:
- 633-656
- Mfr. Part No.:
- EDS-616-T
- Brand:
- MOXA
Subtotal (1 unit)*
£2,406.26
(exc. VAT)
£2,887.51
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 14 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2,406.26 |
*price indicative
- RS Stock No.:
- 633-656
- Mfr. Part No.:
- EDS-616-T
- Brand:
- MOXA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MOXA | |
| Number of Ports | 16 | |
| Product Type | Ethernet Switch | |
| Switch Type | Managed Layer 2 | |
| Network Speed | 100Mbps | |
| Model Number | EDS-616-T | |
| Width | 151mm | |
| Depth | 157.4mm | |
| Standards/Approvals | IEC 61000-4-4, IEC 61000-4-3, IEC 61000-4-2, IEC 60068-2-6, IEC 60068-2-27, GB, FCC Part 15B Class A, EN 62368-1, EN 61000-6-2/-6-4, EN 55032/35, EN 50121-4, DNV, CISPR 32, ATEX Class I Division 2, ABS, IEC 61000-4-5, UL 508, Telcordia (Bellcore), NK, NEMA TS2, LR, IEEE 802.3x, IEEE 802.3u, IEEE 802.3ad, IEEE 802.3, IEEE 802.1X, IEEE 802.1w, IEEE 802.1s, IEEE 802.1q, IEEE 802.1p, IEEE 802.1D-2004, IEC 61000-4-8, IEC 61000-4-6 | |
| Height | 185mm | |
| Select all | ||
|---|---|---|
Brand MOXA | ||
Number of Ports 16 | ||
Product Type Ethernet Switch | ||
Switch Type Managed Layer 2 | ||
Network Speed 100Mbps | ||
Model Number EDS-616-T | ||
Width 151mm | ||
Depth 157.4mm | ||
Standards/Approvals IEC 61000-4-4, IEC 61000-4-3, IEC 61000-4-2, IEC 60068-2-6, IEC 60068-2-27, GB, FCC Part 15B Class A, EN 62368-1, EN 61000-6-2/-6-4, EN 55032/35, EN 50121-4, DNV, CISPR 32, ATEX Class I Division 2, ABS, IEC 61000-4-5, UL 508, Telcordia (Bellcore), NK, NEMA TS2, LR, IEEE 802.3x, IEEE 802.3u, IEEE 802.3ad, IEEE 802.3, IEEE 802.1X, IEEE 802.1w, IEEE 802.1s, IEEE 802.1q, IEEE 802.1p, IEEE 802.1D-2004, IEC 61000-4-8, IEC 61000-4-6 | ||
Height 185mm | ||
- COO (Country of Origin):
- TW
The Moxa Europe 16-port compact modular managed Ethernet switches feature a versatile modular design that enables users to combine fiber and copper modules to build flexible switch configurations tailored for any automation network. Supporting up to 16 Fast Ethernet ports, the switches improve network reliability and availability with advanced Turbo Ring and Turbo Chain technologies offering recovery times of less than 20 ms, along with RSTP, STP, and MSTP. Models with an extended operating temperature range of -40 to 75°C are available, ensuring dependable performance in harsh environments. It also includes a wide range of intelligent and secure networking features such as EtherNet/IP, Modbus TCP, LLDP, DHCP Option 82, SNMP Inform, QoS, IGMP snooping, VLAN, TACACS+, IEEE 802.1X, HTTPS, SSH, and SNMPv3.
RMON for proactive and efficient network monitoring
Bandwidth management to prevent unpredictable network status
Lock port function for blocking unauthorized access based on MAC address
Automatic warning by exception through email and relay output
