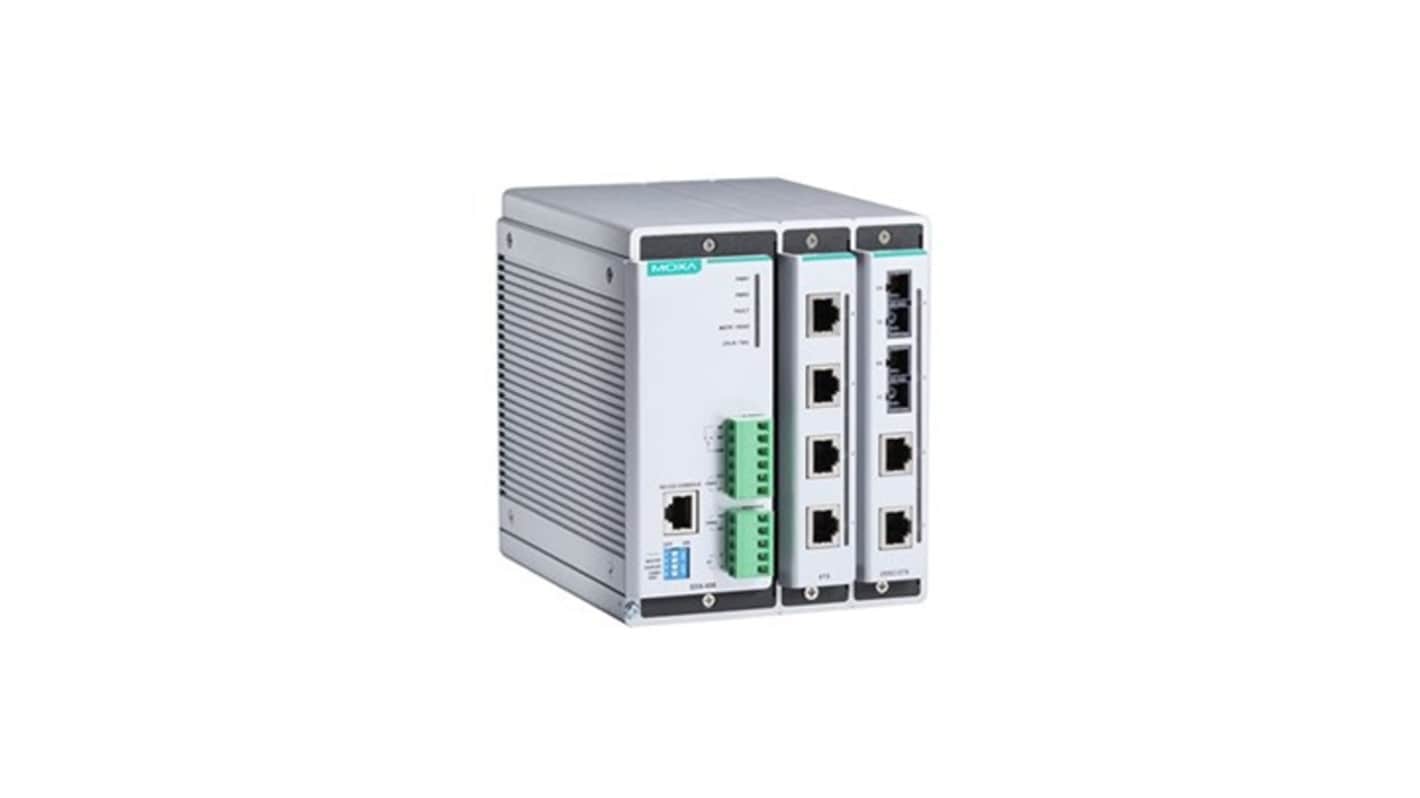

MOXA EDS-608 Managed 8 Port Ethernet Switch
- RS Stock No.:
- 633-651
- Mfr. Part No.:
- EDS-608
- Brand:
- MOXA
Subtotal (1 unit)*
£1,317.07
(exc. VAT)
£1,580.48
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £1,317.07 |
*price indicative
- RS Stock No.:
- 633-651
- Mfr. Part No.:
- EDS-608
- Brand:
- MOXA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MOXA | |
| Number of Ports | 8 | |
| Product Type | Ethernet Switch | |
| Switch Type | Managed | |
| Network Speed | 100Mbps | |
| Model Number | EDS-608 | |
| Width | 125mm | |
| Depth | 157.4mm | |
| Standards/Approvals | ABS, ATEX Class I Division 2, CISPR 32, DNV, EN 50121-4, EN 55032/35, EN 61000-6-2/-6-4, EN 62368-1, FCC Part 15B Class A, GB, IEC 60068-2-27, IEC 60068-2-6, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEEE 802.1D-2004, IEEE 802.1p, IEEE 802.1q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, LR, NEMA TS2, NK, Telcordia (Bellcore), UL 508 | |
| Height | 151mm | |
| Select all | ||
|---|---|---|
Brand MOXA | ||
Number of Ports 8 | ||
Product Type Ethernet Switch | ||
Switch Type Managed | ||
Network Speed 100Mbps | ||
Model Number EDS-608 | ||
Width 125mm | ||
Depth 157.4mm | ||
Standards/Approvals ABS, ATEX Class I Division 2, CISPR 32, DNV, EN 50121-4, EN 55032/35, EN 61000-6-2/-6-4, EN 62368-1, FCC Part 15B Class A, GB, IEC 60068-2-27, IEC 60068-2-6, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEEE 802.1D-2004, IEEE 802.1p, IEEE 802.1q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, LR, NEMA TS2, NK, Telcordia (Bellcore), UL 508 | ||
Height 151mm | ||
- COO (Country of Origin):
- TW
The Moxa Europe compact modular managed Ethernet switches feature a versatile modular design that allows users to combine fiber and copper modules, creating flexible switch solutions for a wide range of automation networks. With support for up to 8 Fast Ethernet ports, the switches are equipped with advanced redundancy technologies such as Turbo Ring and Turbo Chain with recovery times under 20 ms, along with RSTP, STP, and MSTP to enhance network reliability and availability. Models are available with an extended operating temperature range of -40 to 75°C, making them ideal for harsh industrial environments. It also supports a variety of intelligent and secure networking features, including EtherNet/IP, Modbus TCP, LLDP, DHCP Option 82, SNMP Inform, QoS, IGMP snooping, VLAN, TACACS+, IEEE 802.1X, HTTPS, SSH, and SNMPv3.
Automatic warning by exception through email and relay output
IGMP snooping and GMRP for filtering multicast traffic
Port Trunking for optimum bandwidth utilization
RMON for proactive and efficient network monitoring
Bandwidth management to prevent unpredictable network status
Lock port function for blocking unauthorized access based on MAC address
Port mirroring for online debugging
