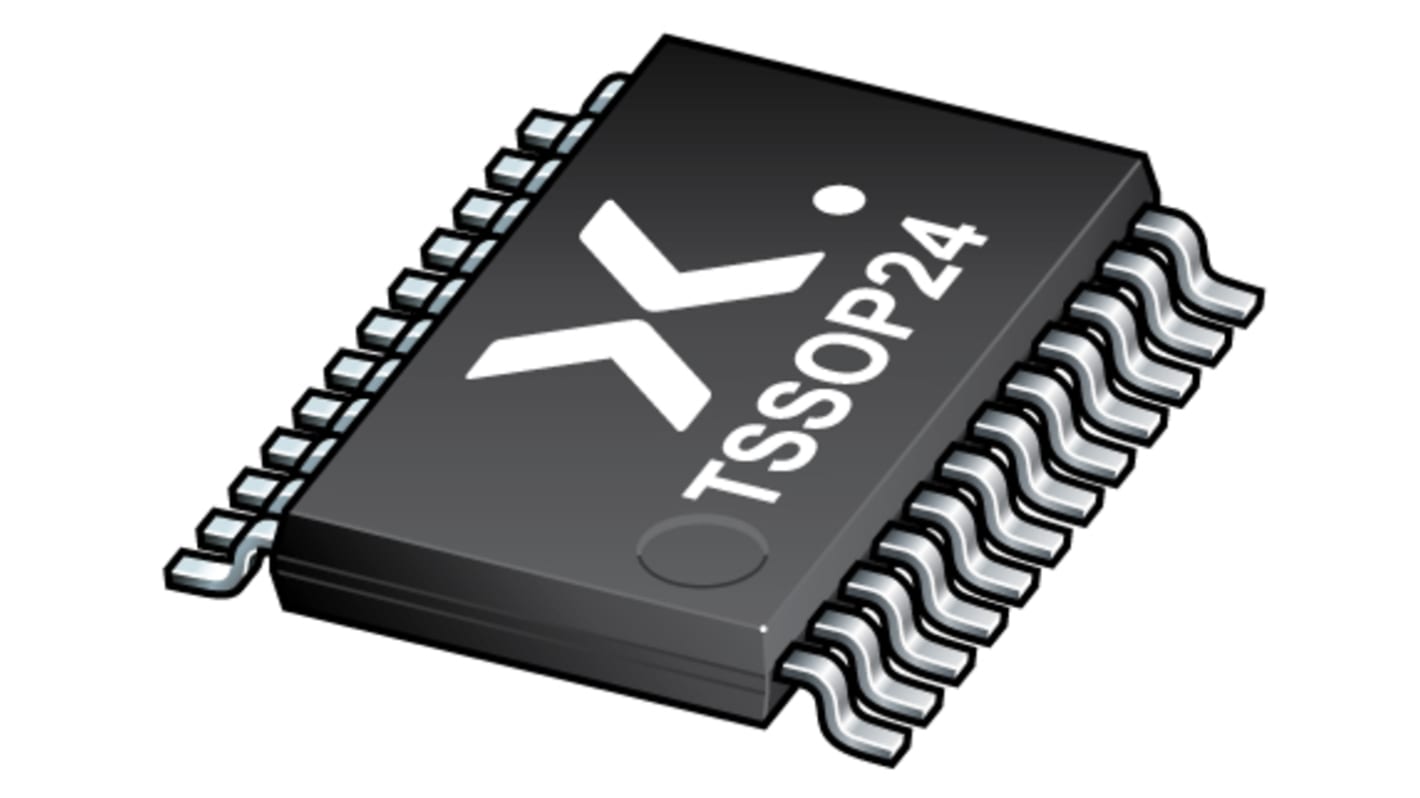

Nexperia 74LVC4245APW,118 Voltage Level Translator, 24-Pin TSSOP
- RS Stock No.:
- 170-8006
- Mfr. Part No.:
- 74LVC4245APW,118
- Brand:
- Nexperia
Subtotal (1 reel of 2500 units)*
£630.00
(exc. VAT)
£755.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 32,500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
2500 + | £0.252 | £630.00 |
*price indicative
- RS Stock No.:
- 170-8006
- Mfr. Part No.:
- 74LVC4245APW,118
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Nexperia | |
Pin Count | 24 | |
Mounting Type | Surface Mount | |
Package Type | TSSOP | |
Dimensions | 7.9 x 4.5 x 0.95mm | |
Minimum Operating Temperature | -40 °C | |
Maximum Operating Temperature | +125 °C | |
Select all | ||
---|---|---|
Brand Nexperia | ||
Pin Count 24 | ||
Mounting Type Surface Mount | ||
Package Type TSSOP | ||
Dimensions 7.9 x 4.5 x 0.95mm | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +125 °C | ||
74LVC Family Bus Transceivers, Nexperia
Low-Voltage CMOS logic
Single gate package
Operating Voltage: 1.65 to 5.5 V
Compatibility: Input LVTTL/TTL, Output LVCMOS
Single gate package
Operating Voltage: 1.65 to 5.5 V
Compatibility: Input LVTTL/TTL, Output LVCMOS
The 74LVC4245A is an octal dual supply translating transceiver featuring non-inverting 3-state bus compatible outputs in both send and receive directions. It is designed to interface between a 3 V and 5 V bus in a mixed 3 V and 5 V supply environment. The device features an output enable input (pin OE) for easy cascading and a send/receive input (pin DIR) for direction control. Pin OE controls the outputs so that the buses are effectively isolated. In suspend mode, when VCC(A) is zero, there will be no current flow from one supply to the other supply. The A-outputs must be set 3-state and the voltage on the A-bus must be smaller than Vdiode (typical 0.7 V). VCC(A) ≥ VCC(B), except in suspend mode.
Wide supply voltage range
Low propagation delay
Low power suspend mode
Auto-direction sensing
3-state output options
Overvoltage tolerant options
Low propagation delay
Low power suspend mode
Auto-direction sensing
3-state output options
Overvoltage tolerant options
74LVC Family
