Amprobe AM-550-EUR Handheld LCD Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max

View all Multimeters
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
RS PRO RS-965 Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max
RS Stock No.
146-9098

Each

£101.09

(exc. VAT)

£121.31

(inc. VAT)

RS Stock No.:
794-3109
Mfr. Part No.:
AM-550-EUR
Brand:
Amprobe
Find similar products by selecting one or more attributes.
Select all

Brand

Amprobe

Multimeter Type

Handheld

Model Number p

AM-550-EUR

Display Type

LCD

Functions Measured

AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Resistance, Temperature

Absolute Maximum DC Current Measurement

10A dc

Absolute Maximum DC Voltage Measurement

1000V dc

Absolute Maximum AC Current Measurement

10A ac

Absolute Maximum AC Voltage Measurement

1000V ac

Absolute Maximum Resistance Measurement

60MΩ

True RMS

Yes

Absolute Maximum Temperature Measurement

+1000°C

Absolute Maximum Capacitance Measurement

60mF

Maximum Frequency

1kHz

Safety Category Level

CAT III, CAT IV

Battery Type

9 V

Best Capacitance Measurement Accuracy

±3% + 5 Digits

Safety Category Voltage

600 V, 1000 V

Length

182mm

Best AC Current Accuracy

±1.2% + 2 Digits

Width

90mm

Best Resistance Measurement Accuracy

±1.2% + 2 Digits

Best AC Voltage Accuracy

±1% + 3 Digits

Weight

354g

Best DC Current Accuracy

±1% + 2 Digits

Dimensions

182 x 90 x 45mm

Best Temperature Measurement Accuracy

±1% + 8 Digits

Best DC Voltage Accuracy

±0.8% + 1 Digits

Height

45mm

RoHS Status: Not Applicable

COO (Country of Origin):
CN

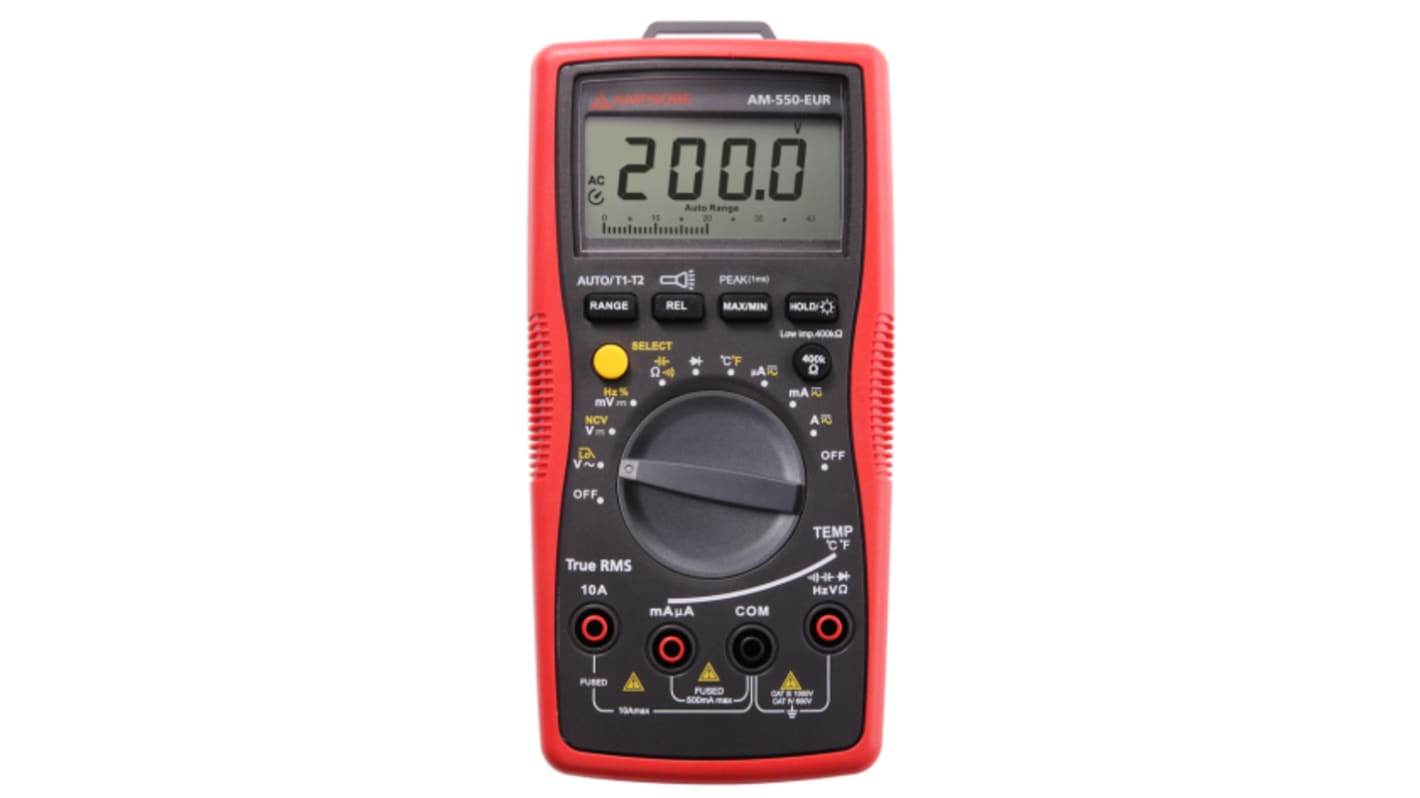

AM-550 Industrial Multimeter


The Amprobe AM-550 is the best multimeter in its class designed for professional electricians who need to maintain service or troubleshoot advanced electrical systems in the most demanding environments. Packed full of features such as true-rms, dual thermocouples for taking differential temperature measurements, a low impedance function to detect stray voltage, and a low pass filter to accurately take measurements on variable frequency drives, the Amprobe AM-550 Digital Multimeter allows for quick go-no-go checks without the need for an additional tool.

Features and Benefits:


• AC/DC Voltage up to 1000V, ac/dc current, resistance, frequency, capacitance, temperature, duty cycle

• CAT IV 600V, CAT III 1000V

• Low Z - to detect stray voltages

• Low pass filter for variable frequency drives

• VolTect Plus™ Non-contact voltage detection

• Audible continuity

• Diode test

• Dual reading backlit LCD display with analog bar graph

• Data hold

• Max/min memory

• Peak hold (crest)

• Relative zero mode

• Built-in flashlight

• Built-in test leads storage and “third hand holder

• Warning against improper test leads connection

• Auto and manual ranging

• Auto power off

• Low battery warning

Standards

CAT IV 600V, CAT III 1000V

Supplied with

• 1 x 9V (6F22) battery installed
• Test leads
• 2 x Type-K probe
• Temperature adaptor
• Velcro strap
• Carrying case
• Users manual
