Fluke 179 Digital Digital Multimeter True RMS
- RS Stock No.:
- 463-6401
- Mfr. Part No.:
- FLUKE 179E
- Brand:
- Fluke
Subtotal (1 unit)*
£538.00
(exc. VAT)
£645.60
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 8 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £538.00 |
*price indicative
- RS Stock No.:
- 463-6401
- Mfr. Part No.:
- FLUKE 179E
- Brand:
- Fluke
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fluke | |
| Product Type | Multimeter | |
| Multimeter Type | Digital | |
| Display Type | Digital | |
| Model Number | 179 | |
| Resistance Resolution | 100mΩ | |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode Test, Frequency, Resistance, Temperature | |
| Maximum Resistance Measurement | 50mΩ | |
| Maximum DC Voltage Measurement | 1kV dc | |
| True RMS | Yes | |
| DC Current Accuracy | ±1 % rdg + 3 Digits | |
| DC Voltage Accuracy | ± 0.09 % + 2 | |
| AC Current Accuracy | ±1.5 % rdg + 3 Digits | |
| AC Voltage Accuracy | ±1 % rdg + 3 Digits | |
| AC Current Resolution | 0.01mA ac | |
| AC Voltage Resolution | 0.1mV ac | |
| DC Voltage Resolution | 0.1 mV dc | |
| DC Current Resolution | 0.01mA dc | |
| Maximum Frequency | 1kHz | |
| Minimum Operating Temperature | -10°C | |
| Resistance Measurement Accuracy | ±1.5 % rdg + 3 Digits | |
| Battery Life | 200h | |
| Maximum Operating Temperature | 50°C | |
| Weight | 420g | |
| Standards/Approvals | No | |
| Width | 90mm | |
| Height | 43mm | |
| Length | 185mm | |
| Safety Category Level | CAT III, CAT IV | |
| Safety Category Voltage | 1000V | |
| Battery Type | Alkaline | |
| Select all | ||
|---|---|---|
Brand Fluke | ||
Product Type Multimeter | ||
Multimeter Type Digital | ||
Display Type Digital | ||
Model Number 179 | ||
Resistance Resolution 100mΩ | ||
Functions Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode Test, Frequency, Resistance, Temperature | ||
Maximum Resistance Measurement 50mΩ | ||
Maximum DC Voltage Measurement 1kV dc | ||
True RMS Yes | ||
DC Current Accuracy ±1 % rdg + 3 Digits | ||
DC Voltage Accuracy ± 0.09 % + 2 | ||
AC Current Accuracy ±1.5 % rdg + 3 Digits | ||
AC Voltage Accuracy ±1 % rdg + 3 Digits | ||
AC Current Resolution 0.01mA ac | ||
AC Voltage Resolution 0.1mV ac | ||
DC Voltage Resolution 0.1 mV dc | ||
DC Current Resolution 0.01mA dc | ||
Maximum Frequency 1kHz | ||
Minimum Operating Temperature -10°C | ||
Resistance Measurement Accuracy ±1.5 % rdg + 3 Digits | ||
Battery Life 200h | ||
Maximum Operating Temperature 50°C | ||
Weight 420g | ||
Standards/Approvals No | ||
Width 90mm | ||
Height 43mm | ||
Length 185mm | ||
Safety Category Level CAT III, CAT IV | ||
Safety Category Voltage 1000V | ||
Battery Type Alkaline | ||
RoHS Status: Exempt
- COO (Country of Origin):
- US
Fluke Multimeter, True RMS Capability, 1kHz Maximum Frequency - FLUKE 179E
This handheld multimeter is a precision troubleshooting instrument for electrical and electronic systems, designed for field and workshop use by professionals in automation, electronics, electrical and mechanical roles. It provides accurate true-RMS readings for complex AC signals, offers a built-in thermometer for temperature checks, and presents measurements on a 6000-count display with an analogue bargraph to track varying signals.
Features & Benefits
• True-RMS AC readings provide accurate measurements on distorted waveforms
• DC voltage accuracy of 0.09%+2 improves measurement precision
• AC current accuracy of ±1.5% ensures dependable current diagnostics
• Low-resistance range down to 50 mΩ enables sensitive resistance checks
• Long battery life of ∼200 h supports extended field shifts
• Frequency and capacitance ranges support component and signal testing
• DC voltage accuracy of 0.09%+2 improves measurement precision
• AC current accuracy of ±1.5% ensures dependable current diagnostics
• Low-resistance range down to 50 mΩ enables sensitive resistance checks
• Long battery life of ∼200 h supports extended field shifts
• Frequency and capacitance ranges support component and signal testing
**Applications**
• Suitable for commissioning frequency-controlled drives and inverters
• Ideal for diagnosing PCB power-supply faults in electronics workshops
• Used for on-site electrical maintenance and installation verification
• Can be used for thermal checks on motors and bearing assemblies
• Suitable for measuring capacitors and filter networks during repair
• Ideal for diagnosing PCB power-supply faults in electronics workshops
• Used for on-site electrical maintenance and installation verification
• Can be used for thermal checks on motors and bearing assemblies
• Suitable for measuring capacitors and filter networks during repair
What input protection categories apply for on-site electrical work?
The instrument meets EN 61010-1 overvoltage categories CAT III up to 1000V and CAT IV up to 600V for use on distribution and fixed-installation circuits.
How does the display aid interpretation of transient signals?
An integrated analogue bargraph shows signal trends alongside the 6000-count numeric readout, making it easier to observe changing voltages or currents.
What current ranges and input behaviour are provided for inrush testing?
It measures up to 10 A and up to 400 mA on the lower input with typical input burden values of 37 mV/A on the high range and 2 mV/mA on the lower range.

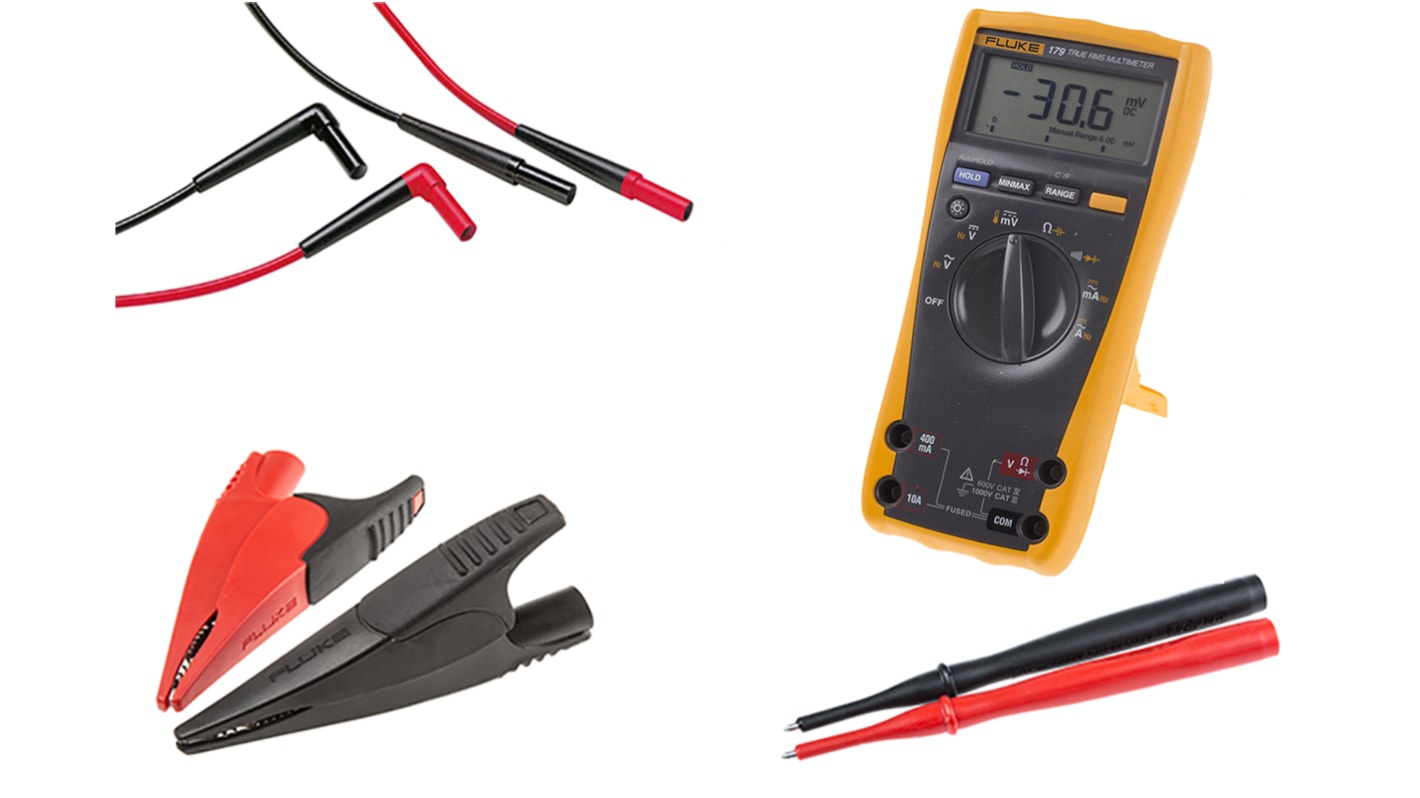

Which accessories are supplied to support temperature measurement tasks?
A temperature probe is included to enable temperature measurements from −40 °C to +400 °C for component and system checks.
Note
All accessories with safety standard compliance to Cat IV 600V, Cat III 1000V, 10A rating (EN61010-2-031)
